In the landscape of industrial automation and process control, temperature is perhaps the most frequently measured physical parameter. Industrial grade temperature sensors are specialized instruments designed to provide accurate, repeatable, and stable thermal data within demanding environments such as chemical processing plants, water treatment facilities, and oil and gas refineries. Unlike consumer-grade sensors, industrial variants must withstand extreme pressures, corrosive media, and mechanical vibrations while maintaining high levels of precision.

For engineers and plant managers, selecting the correct sensor is not merely a matter of measuring heat; it is about ensuring process safety, product quality, and equipment longevity. This guide explores the fundamental principles of these sensors, their critical role in integrated systems—including their relationship with level measurement—and practical considerations for deployment.

Measurement Principles of Industrial Temperature Sensors

Before selecting a sensor, it is essential to understand the physics behind the measurement. Most industrial applications rely on three primary technologies: Resistance Temperature Detectors (RTDs), Thermocouples, and, to a lesser extent, Thermistors.

Resistance Temperature Detectors (RTDs)

RTDs operate on the principle that the electrical resistance of a metal increases as its temperature rises. This relationship is highly predictable and linear. The most common material used is platinum, leading to the industry-standard Pt100 (100 ohms at 0°C) and Pt1000 sensors.

* Mechanism: A small current is passed through the platinum element, and the voltage drop is measured to calculate resistance.

* Advantages: Exceptional accuracy, long-term stability, and high repeatability.

* Limitations: Slower response time compared to thermocouples and a more limited temperature range (typically -200°C to +600°C).

Thermocouples

Thermocouples function based on the Seebeck Effect. When two dissimilar metals are joined at one end (the sensing junction) and there is a temperature difference between that end and the other (the reference junction), a small voltage (millivolts) is generated.

* Mechanism: The voltage produced is proportional to the temperature gradient. Different metal combinations define the "Type" (e.g., Type K, Type J, Type T).

* Advantages: Extremely wide temperature range (up to 1,700°C or higher for precious metal types), rugged construction, and very fast response times.

* Limitations: Lower accuracy than RTDs, susceptibility to electromagnetic interference (EMI), and the requirement for cold-junction compensation.

Thermistors

Thermistors are ceramic-like semiconductors that exhibit a large change in resistance for a small change in temperature. They are typically NTC (Negative Temperature Coefficient), meaning resistance decreases as temperature increases.

* Mechanism: They provide very high sensitivity over a narrow range.

* Advantages: High sensitivity and low cost.

* Limitations: Highly non-linear output and a narrow operating range, usually limited to under 300°C.

The Intersection of Temperature and Level Measurement

In many industrial contexts, temperature measurement is not an isolated task. It is a critical variable in the accuracy of level measurement instruments. For example, in hydrostatic level transmitters, the density of a liquid changes with its temperature. If the temperature fluctuates significantly without compensation, the calculated level (based on pressure) will be incorrect.

Similarly, ultrasonic level sensors rely on the speed of sound, which is highly dependent on the temperature of the air or gas through which the pulse travels. A change of 1°C can result in a 0.17% error in distance measurement. Therefore, high-quality level measurement systems often incorporate industrial grade temperature sensors to provide real-time compensation. For comprehensive information on how these technologies integrate, you can visit the Main Page of instrumentation specialists to review how thermal data supports level accuracy.

Practical Selection Table: RTD vs. Thermocouple

Choosing between an RTD and a thermocouple involves balancing precision against environmental extremes. The following table provides a comparison for standard industrial grades.

| Feature | RTD (Pt100/Pt1000) | Thermocouple (Type K/J) |

| :— | :— | :— |

| Temperature Range | -200°C to +600°C | -200°C to +1,250°C (Type K) |

| Accuracy | High (Class A: ±0.15°C at 0°C) | Moderate (Standard: ±2.2°C or 0.75%) |

| Stability/Drift | Excellent (<0.1°C/year) | Moderate (Drift increases at high T) |

| Response Time | Slower (5 to 30 seconds) | Fast (0.1 to 10 seconds) |

| Linearity | Excellent | Non-linear (Requires software correction) |

| Cost | Higher | Lower |

| Durability | Fragile (vibration sensitive) | Very Rugged |

Installation Considerations and Best Practices

The accuracy of an industrial grade temperature sensor is only as good as its installation. Even the most precise Pt100 sensor will yield false data if it is not properly coupled to the process.

1. Thermowell Selection

In most industrial processes, sensors are not inserted directly into the media. Instead, they are placed inside a thermowell—a pressure-tight receptacle. This allows for sensor replacement without breaking the process seal. However, the thermowell adds thermal lag. Using a thermal conductive paste between the sensor tip and the thermowell wall can mitigate this delay.

2. Immersion Depth

To avoid "stem conduction" errors (where heat travels up the sensor body to the cooler ambient air), the sensor must be immersed deeply enough. A general rule of thumb is to immerse the sensor to a depth equal to 10 times the diameter of the protection tube or thermowell.

3. Wiring and Lead Resistance

For RTDs, the resistance of the lead wires can add significant error. To counteract this, industrial systems typically use 3-wire or 4-wire configurations. A 3-wire circuit uses a bridge measurement to cancel out lead resistance, while a 4-wire circuit provides the highest precision by separating the current source from the voltage measurement.

4. EMI Shielding

In environments with heavy motors or variable frequency drives (VFDs), electrical noise can interfere with the millivolt signals of thermocouples. Using twisted-pair shielded cables and ensuring proper grounding is vital for signal integrity.

Industrial Grade Temperature Sensors visual guide

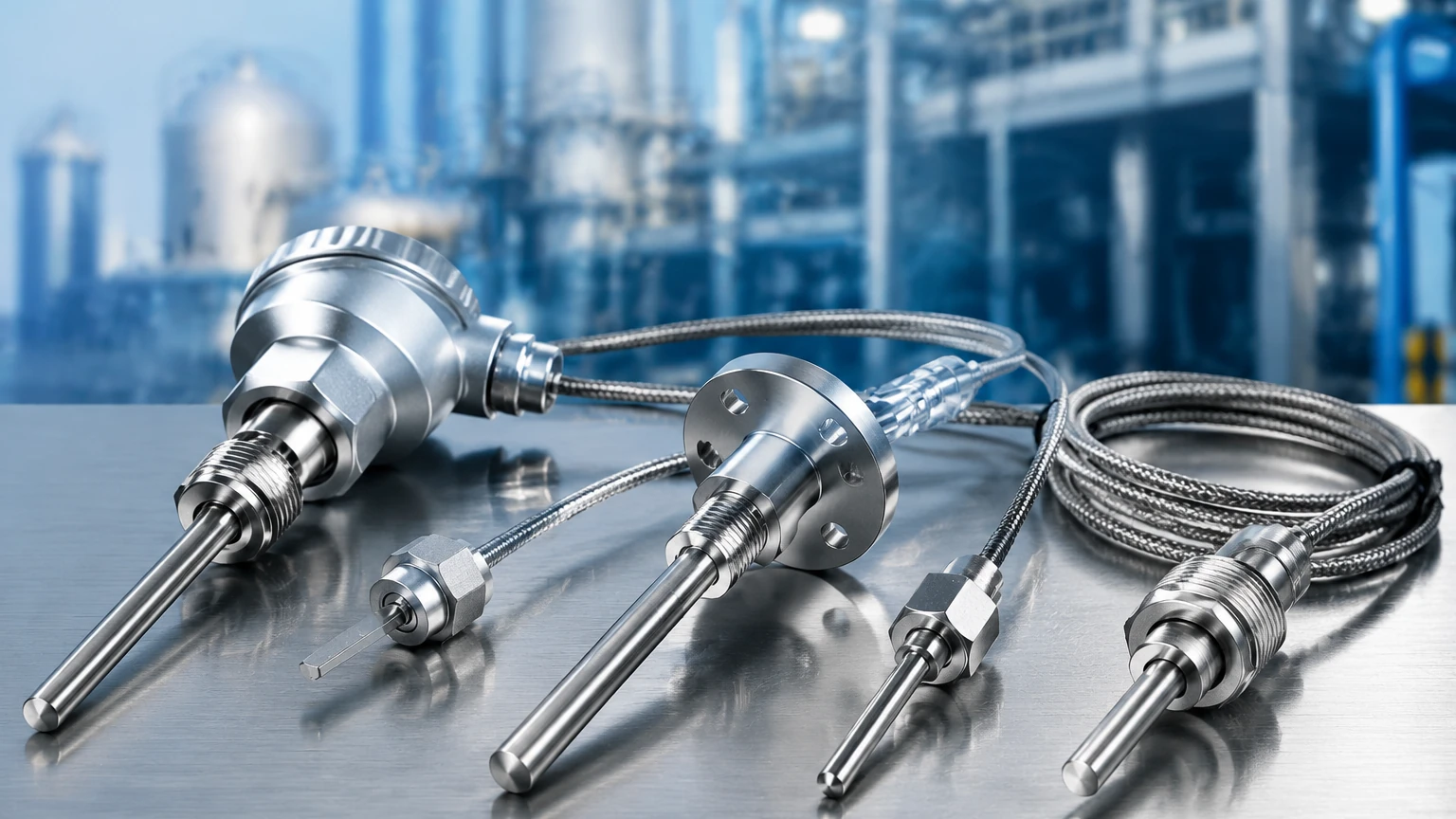

Overview visual for industrial grade temperature sensors.

Common Risks and Limitations

While industrial grade temperature sensors are robust, they are not immune to failure or degradation. Understanding these risks is essential for maintenance planning.

* Sensor Drift: Over time, the physical properties of the sensing element can change due to thermal cycling or contamination. Regular calibration is required to ensure the readings remain within the specified tolerance.

* Self-Heating: In RTDs, the current used to measure resistance also generates a small amount of heat within the sensor. If the current is too high or the process media is stagnant, the sensor may report a temperature slightly higher than the actual environment.

* Chemical Compatibility: The sheath material (usually Stainless Steel 316L, Inconel, or Hastelloy) must be compatible with the process fluid. Corrosive chemicals in water treatment or oil and gas applications can eat through a sheath, leading to sensor failure and potential process leaks.

* Vibration Fatigue: In high-flow pipelines, the thermowell can experience vortex-induced vibration. If not designed correctly (per ASME PTC 19.3 TW standards), the thermowell can snap, causing catastrophic failure.

Frequently Asked Questions (FAQ)

Q: How often should industrial temperature sensors be calibrated?

A: For most critical processes, an annual calibration is recommended. However, in high-accuracy applications or environments with extreme thermal cycling, semi-annual checks may be necessary.

Q: What is the difference between Class A and Class B RTDs?

A: These refer to the tolerance levels defined by IEC 60751. Class A is more accurate (±0.15°C at 0°C) compared to Class B (±0.30°C at 0°C). Class A is preferred for precision control, while Class B is often sufficient for general monitoring.

Q: Can I use a thermocouple for water treatment applications?

A: While possible, RTDs are generally preferred for water treatment because the temperature ranges are narrow (typically 0°C to 100°C) and the high accuracy/stability of an RTD is more beneficial than the high-temperature capability of a thermocouple.

Q: Why is my thermocouple reading fluctuating wildly?

A: This is often caused by electromagnetic interference or a loose connection at the terminal block. Ensure that the shielding is grounded at only one end and that the extension wire is the correct type for the thermocouple being used.

Conclusion

Industrial grade temperature sensors are the backbone of thermal monitoring in modern production. Whether utilizing the precision of a Pt100 RTD or the ruggedness of a Type K thermocouple, understanding the underlying measurement principles is the first step toward a reliable installation. By considering factors such as thermowell design, immersion depth, and the specific needs of the process—including how temperature affects other variables like liquid level—engineers can build systems that are both accurate and resilient. For those seeking integrated measurement solutions, reviewing the technical specifications and application support available on the Main Page can provide further clarity on selecting the right instrumentation for specific industrial challenges.
