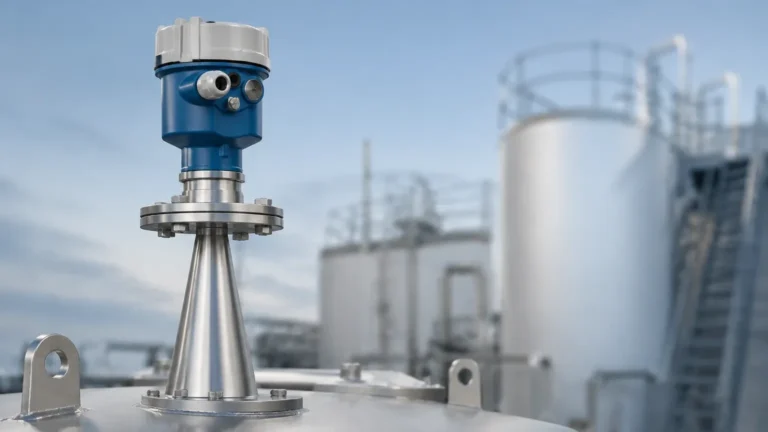

In the field of industrial automation and process control, the ability to accurately configure, monitor, and troubleshoot level measurement instruments is critical for operational efficiency. Modern level sensors, such as radar level meters, ultrasonic sensors, and hydrostatic transmitters, have evolved from simple analog devices into sophisticated digital systems. To bridge the gap between the sensor hardware and the digital management environment, interface adapters like the veg connect play a pivotal role. This guide explores the technical principles of sensor communication, the specific functions of interface adapters, and practical considerations for engineers integrating these tools into their workflows.
Principles of Sensor Communication and Configuration
Before selecting or utilizing an interface tool like veg connect, it is essential to understand the underlying communication principles that govern industrial level measurement. Most contemporary instruments utilize a combination of analog signals and digital protocols to transmit data and receive configuration commands.
The 4-20mA Analog Loop and HART Protocol
The most common standard in process industries is the 4-20mA current loop. In this setup, the measured level is represented by a current value between 4mA (empty) and 20mA (full). However, the Highway Addressable Remote Transducer (HART) protocol allows for digital communication to be superimposed on this analog signal. By using Frequency Shift Keying (FSK), digital data is modulated onto the current loop without interfering with the analog signal.
Interface adapters are designed to extract this digital information, allowing a PC or handheld terminal to "talk" to the sensor. This enables the adjustment of parameters such as measuring range, damping, and linearization curves without needing to access the physical sensor head in potentially hazardous or hard-to-reach locations.
Digital Bus Systems and I2C
Beyond HART, many sensors utilize internal bus systems or external digital protocols like Profibus PA, Foundation Fieldbus, or I2C for short-distance internal communication. An interface adapter serves as the translator between these specialized industrial protocols and standard computer interfaces, typically USB or RS232. This translation is vital for field service technicians who need to perform deep diagnostics or firmware updates on-site.
Understanding the Veg Connect Interface
The veg connect is a multi-functional interface adapter designed to connect various level and pressure sensors to a PC. It acts as a hardware bridge, ensuring that the software environment can recognize and interact with the field device regardless of its native communication protocol.
Hardware Components
A typical interface kit includes the adapter itself, which features a USB connector on one side and a variety of connection options on the other. These options often include:
- HART communication pins: For connecting directly to the 4-20mA signal lines.
- I2C interface cables: For direct connection to the sensor electronics (often used when the sensor is not powered via the loop).
- Galvanic isolation: A critical safety feature that protects the PC from high-voltage surges or ground loops present in the industrial environment.
Software Integration: FDT/DTM Technology
Hardware alone is insufficient for sensor configuration. The industry relies on the FDT/DTM (Field Device Tool / Device Type Manager) standard.
- FDT (The Frame): A software environment (such as PACTware or a dedicated PLC software) that acts as a container.
- DTM (The Driver): A device-specific driver provided by the manufacturer that contains all the parameters, logic, and graphical interface for a specific sensor model.
When using veg connect, the user installs the DTM for their specific radar or ultrasonic meter within an FDT frame. The interface adapter then facilitates the data flow between the DTM on the screen and the physical sensor in the tank.
Practical Selection Criteria for Interface Adapters
When evaluating communication tools for level measurement, engineers must consider several technical factors to ensure compatibility and safety. The following table outlines key criteria for selecting an interface adapter suitable for industrial applications.
| Feature | Requirement | Importance |
| :— | :— | :— |
| Protocol Support | HART, I2C, or specific internal bus | High: Determines which sensors can be accessed. |
| Galvanic Isolation | Minimum 500V AC/DC | High: Protects expensive laptops and personnel from electrical faults. |
| Power Supply | USB-powered or Loop-powered | Medium: Affects portability and the need for external power units. |
| Hazardous Area Approval | ATEX/IECEx (e.g., Ex ia) | Critical: Mandatory if connecting to sensors in explosive atmospheres. |
| Connector Types | 2mm pins, alligator clips, or modular plugs | Medium: Affects ease of connection in the field. |
For organizations managing a diverse fleet of instruments, ensuring that the interface tool is compatible with the Main Page of the manufacturer's technical documentation is essential for obtaining the correct DTM files and connection diagrams.
Installation and Setup Considerations
Proper installation of the interface adapter is necessary to prevent data corruption or hardware damage. Whether performing a bench-top calibration or field troubleshooting, the following steps should be followed:
1. Driver Installation: Always install the USB drivers for the adapter before connecting the hardware to the PC. This ensures the operating system correctly identifies the communication port.
2. Point-to-Point vs. Multi-drop: In standard HART configurations, the adapter is used in a point-to-point setup. If the sensor is part of a multi-drop network (where multiple sensors share one pair of wires), the adapter must be configured with the correct polling address.
3. Loop Resistance: For HART communication to function, a minimum load resistance of 250 Ohms is typically required in the 4-20mA loop. If the adapter is connected directly to a sensor without a PLC or power supply in the loop, an external resistor must be added.
4. Connection Polarity: While many modern adapters are polarity-independent, it is best practice to follow the positive and negative markings on the HART terminals to ensure signal stability.
Safety in Hazardous Areas
If the level sensor is located in a Zone 0, 1, or 2 hazardous area, the interface adapter must be used in conjunction with an intrinsically safe (IS) barrier. Alternatively, the adapter itself must be rated for use in those zones. Never connect a standard PC-side adapter directly to an IS loop without verifying that the entity parameters (Voltage, Current, Power) are compatible. Failure to do so can void the explosion protection of the entire installation.
Limitations and Common Troubleshooting
While tools like veg connect are highly reliable, certain environmental and technical factors can limit their performance.
- Cable Length: For I2C communication, the cable length between the adapter and the sensor is usually limited to a few meters due to signal degradation. HART communication can operate over much longer distances (up to 1,500 meters) depending on the cable capacitance.
- Interference: Electromagnetic interference (EMI) from large motors or variable frequency drives (VFDs) can disrupt the digital handshake between the PC and the sensor. Using shielded twisted-pair cabling is recommended.
- Software Conflicts: Occasionally, other COM port drivers (such as those for cellular modems or older serial devices) can conflict with the interface adapter. Disabling unused ports in the PC's Device Manager often resolves these issues.
Frequently Asked Questions (FAQ)
Q: Can I use one interface adapter for all brands of level sensors?
A: If the adapter is a standard HART-to-USB modem, it will work with any HART-compatible sensor for basic parameterization. However, proprietary features or non-HART protocols (like I2C) usually require the manufacturer-specific adapter, such as the veg connect.
Q: Is a separate power supply needed for the sensor when using the adapter?
A: Generally, yes. Most interface adapters do not provide power to the 4-20mA loop. The sensor must be powered by its usual 24V DC source. Some specialized adapters can provide a small amount of power for bench testing, but this should be verified in the technical manual.
Q: Do I need to stop the process to connect the adapter?
A: No. One of the primary advantages of HART-based adapters is that they can be connected while the sensor is live and the process is running. The digital signal does not affect the 4-20mA analog measurement used by the control system.
Conclusion
The integration of digital interface tools like veg connect has transformed the way industrial level measurement is managed. By facilitating a direct link between field hardware and sophisticated diagnostic software, these devices allow for higher precision, faster commissioning, and proactive maintenance. When selecting communication tools, engineers should prioritize safety ratings, protocol compatibility, and ease of software integration. For detailed specifications on compatible level measurement hardware and configuration tools, professionals should consult the Main Page of their equipment provider to ensure optimal system performance and reliability.
