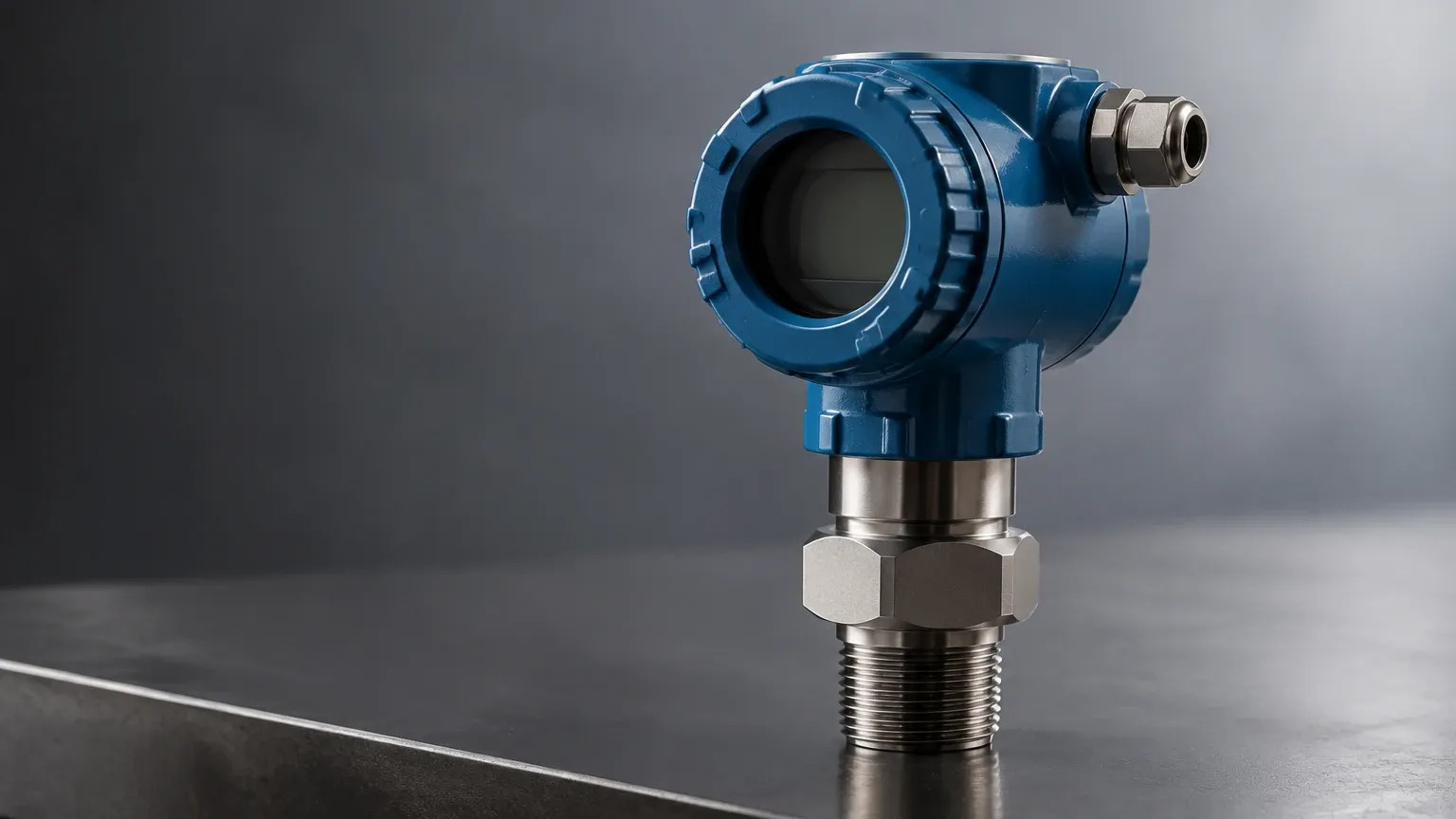

Air Pressure Transmitter
Air Pressure Transmitter
In the landscape of industrial automation and process control, the air pressure transmitter serves as a foundational instrument for monitoring, controlling, and safety management. While often categorized simply as a pressure sensor, the modern air pressure transmitter is a sophisticated device designed to convert pneumatic force into a standardized electrical signal, typically 4-20mA or a digital protocol like HART or Modbus. For engineers and site managers, understanding the nuances of these instruments is essential for maintaining system integrity, especially when integrated into complex level measurement or HVAC infrastructures.
At Welk, the focus remains on providing high-precision instrumentation that bridges the gap between physical process variables and digital control systems. Whether used for monitoring compressed air lines or as a component in hydrostatic level measurement systems, the selection of an air pressure transmitter requires a deep dive into its operating principles, environmental constraints, and application-specific requirements.
Fundamental Principles of Air Pressure Measurement
An air pressure transmitter operates by sensing the physical force exerted by air or gas on a sensing element. This mechanical displacement is then translated into an electrical output. The two most prevalent technologies in industrial settings are piezoresistive and capacitive sensing.
Piezoresistive Sensing Technology
This is the most common principle used in industrial air pressure transmitters. It utilizes a silicon or ceramic diaphragm with integrated strain gauges (typically arranged in a Wheatstone bridge circuit). When air pressure deforms the diaphragm, the electrical resistance of the strain gauges changes proportionally. This change is processed by internal electronics to produce a linear output signal. Piezoresistive sensors are favored for their high sensitivity and robust performance in standard industrial environments.
Capacitive Sensing Technology
Capacitive transmitters measure the change in electrical capacitance between a sensing diaphragm and a fixed reference electrode. As air pressure moves the diaphragm, the distance between the plates changes, altering the capacitance. This technology is highly stable and resistant to overpressure conditions, making it suitable for low-pressure applications where high precision is required, such as cleanroom monitoring or draft range measurement in furnaces.
Classification of Air Pressure Transmitters
To select the correct instrument, it is vital to distinguish between the different reference points used for measurement. Each type serves a distinct purpose in the industrial ecosystem.
1. Gauge Pressure Transmitters: These measure pressure relative to the local atmospheric pressure. The sensor includes a vent to the atmosphere, ensuring that the "zero" point shifts with changes in barometric pressure. These are standard for most compressed air and tank level applications.
2. Absolute Pressure Transmitters: These measure pressure relative to a full vacuum (zero pressure). These are critical in vacuum processes or when atmospheric pressure fluctuations would introduce unacceptable errors in the measurement.
3. Differential Pressure (DP) Transmitters: These measure the difference between two pressure points. In air systems, they are frequently used to monitor filter health (measuring pressure drop across the filter) or to calculate flow rates in pneumatic lines using orifice plates.
Role in Industrial Level Measurement
While primarily designed for gas measurement, the air pressure transmitter plays a pivotal role in liquid level monitoring, particularly through the "Bubbler Method." This is a core application for many users visiting the Main Page to explore hydrostatic solutions.
The Bubbler System Principle
In a bubbler level measurement system, a constant flow of air is pushed through a tube submerged in a liquid. An air pressure transmitter is connected to the top of this tube. The pressure required to force air bubbles out of the bottom of the tube is exactly equal to the hydrostatic pressure exerted by the liquid column above the tube's opening.
By applying the formula $P = \rho gh$ (where $P$ is pressure, $\rho$ is liquid density, $g$ is gravity, and $h$ is height), the transmitter can accurately determine the liquid level. This method is highly effective for corrosive, high-temperature, or slurry-filled tanks where direct contact sensors might fail.
Key Selection Criteria for Engineering Projects
Selecting an air pressure transmitter involves balancing technical specifications with the realities of the installation site. The following table outlines the primary evaluation criteria for industrial procurement.
| Parameter | Specification Range | Practical Engineering Impact |
| :— | :— | :— |
| Measuring Range | 0–100 kPa to 0–60 MPa | Must cover the maximum expected surge pressure to avoid sensor damage. |
| Accuracy Class | 0.1%, 0.25%, 0.5% FS | Higher accuracy is required for custody transfer; lower accuracy suffices for general monitoring. |
| Output Signal | 4-20mA, RS485, HART | Determines compatibility with existing PLC/DCS architectures. |
| Wetted Materials | 316L SS, Ceramic, Hastelloy | Must be chemically compatible with any moisture or contaminants in the air stream. |
| Process Connection | G1/2, NPT1/2, M20x1.5 | Ensures a leak-free mechanical fit to existing piping. |
| Ingress Protection | IP65, IP67, IP68 | Determines suitability for outdoor or wash-down environments. |
Installation Considerations and Best Practices
The reliability of an air pressure transmitter is often determined by the quality of its installation. Poor mounting can lead to signal drift, moisture accumulation, and premature failure.
Impulse Line Management
When connecting the transmitter to the process line, impulse piping should be as short as possible to minimize lag. For air systems, the transmitter should ideally be mounted *above* the process tap. This allows any condensation that forms in the lines to drain back into the process pipe rather than collecting in the sensor chamber, which could cause measurement errors or freezing damage.
Environmental Shielding
While many industrial transmitters are rated for outdoor use, extreme temperature fluctuations can cause thermal drift. Using sunshades or heat-traced enclosures in arctic or tropical climates ensures the electronics operate within their compensated temperature range (typically -20°C to +70°C).
Electrical Grounding and Shielding
In environments with heavy machinery or variable frequency drives (VFDs), electromagnetic interference (EMI) can distort the 4-20mA signal. Using shielded twisted-pair cabling and ensuring the transmitter housing is properly grounded is essential for maintaining a clean signal.
Limitations and Potential Risks
Despite their versatility, air pressure transmitters have specific limitations that must be managed:
* Overpressure Events: Exceeding the specified "Proof Pressure" can permanently deform the sensing diaphragm, leading to a permanent zero shift or total failure.
* Moisture and Contamination: If the air being measured contains oil mist or high humidity, these contaminants can clog the small orifices of the transmitter or cause corrosion. In such cases, the use of a diaphragm seal or air filtration is mandatory.
* Vibration: High-frequency vibration from nearby compressors can fatigue the internal electronics or mechanical connections. Remote mounting using flexible capillary lines is a common solution for high-vibration zones.
Frequently Asked Questions (FAQ)
Q: How often should an air pressure transmitter be calibrated?
A: For most industrial applications, an annual calibration check is recommended. However, in critical safety systems or high-precision processes, semi-annual or quarterly checks may be required to account for sensor drift.
Q: Can I use a standard air pressure transmitter for oxygen service?
A: No. Transmitters used for oxygen must be specifically cleaned and certified "oil-free." Any residual hydrocarbons from the manufacturing process can react violently with high-concentration oxygen.
Q: What is the difference between a 2-wire and a 4-wire transmitter?
A: A 2-wire transmitter uses the same pair of wires for both power and the 4-20mA output signal, which simplifies wiring. A 4-wire transmitter has separate pairs for power (often 110/220V AC or 24V DC) and the signal, which is typically used for devices requiring higher power consumption, such as those with integrated displays or heaters.
Q: How do I handle pressure spikes in pneumatic systems?
A: Installing a pressure snubber or a needle valve between the process and the transmitter can dampen rapid pressure fluctuations, protecting the sensing element from mechanical shock.
Conclusion
The air pressure transmitter is more than a simple gauge; it is a critical data point in the modern industrial facility. By selecting the appropriate sensing technology, ensuring correct reference pressure types, and adhering to rigorous installation standards, engineers can ensure long-term accuracy and reliability. Whether integrated into a Welk hydrostatic level system or a facility-wide compressed air network, these instruments provide the visibility needed for optimized operation. For more detailed technical specifications and application support, professionals are encouraged to review the comprehensive product options available on our Main Page.
