High Temperature Switch

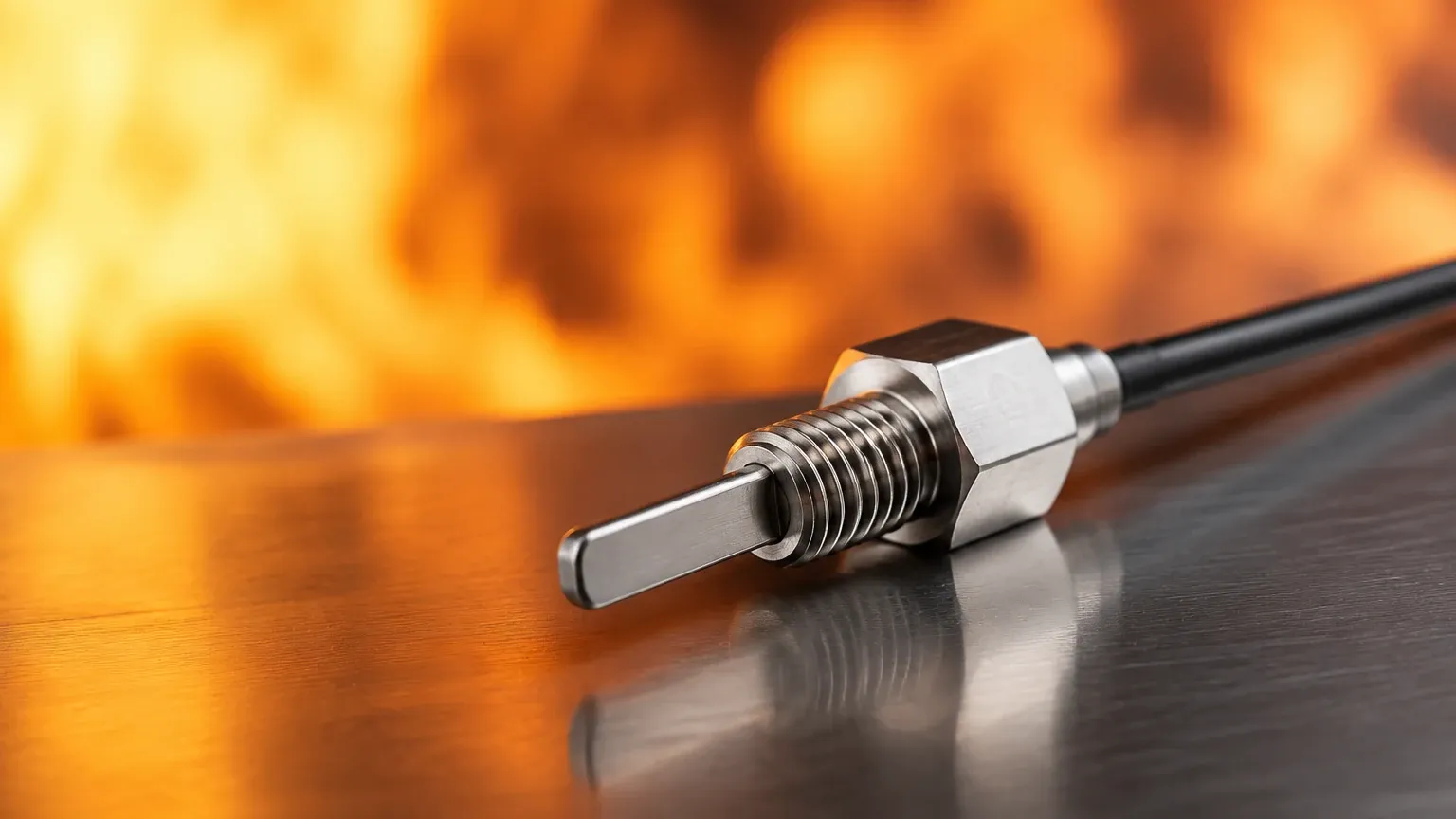

In the landscape of industrial automation, point-level detection in extreme environments remains one of the most significant engineering challenges. A high temperature switch is a specialized level measurement device designed to provide reliable on/off signals when a substance—whether liquid, slurry, or bulk solid—reaches a specific level within a vessel operating at elevated temperatures. Unlike standard level switches, these instruments are engineered with specialized materials, thermal barriers, and electronic configurations to prevent component failure under thermal stress.
Industries such as power generation, metallurgy, chemical processing, and oil refining frequently operate at temperatures ranging from 150°C (302°F) to well over 800°C (1472°F). In these settings, the choice of a high temperature switch is critical not only for process efficiency but also for safety and environmental protection. This guide explores the principles, selection criteria, and installation requirements for these robust instruments.
Measurement Principles for High Temperature Environments
Before selecting a device, it is essential to understand how different sensing technologies adapt to heat. The primary measurement principles used for high temperature switches include mechanical, vibratory, and electrical methods.
1. RF Admittance and Capacitance
RF (Radio Frequency) admittance is an evolution of capacitance technology. It measures the change in electrical admittance (the reciprocal of impedance) between a sensing probe and the vessel wall. In high-temperature applications, these switches are favored because they have no moving parts. To handle the heat, the probe is typically constructed from stainless steel with high-grade ceramic or PEEK (Polyether ether ketone) insulation. The "three-terminal" or "shield" technology allows the switch to ignore material buildup on the probe, which is a common occurrence in high-temperature sticky media.
2. Vibratory (Tuning Fork)
Tuning fork switches operate by vibrating two tines at their natural resonance frequency using piezoelectric crystals. When the medium covers the tines, the frequency shifts, triggering the switch. For high-temperature versions, the challenge lies in the piezoelectric elements, which have a "Curie Point"—a temperature at which they lose their piezoelectric properties. High-temperature tuning forks utilize specialized high-Curie-point crystals and extended sensors to isolate the electronics from the heat source.
3. Rotary Paddle
Used primarily for bulk solids, the rotary paddle switch employs a low-speed motor that rotates a paddle. When the material reaches the paddle, the rotation is impeded, and a microswitch is triggered. High-temperature variants incorporate heat-dissipating fins between the process mounting and the motor housing, along with high-temperature-resistant seals and bearings to prevent the lubricant from seizing.
4. Displacement and Float Switches
Mechanical float or displacement switches use buoyancy. In high-temperature liquid applications, such as steam drums or hot oil tanks, the float is often made of heavy-walled stainless steel or specialized alloys. The switching mechanism is typically isolated via a magnetic coupling, ensuring that the high-temperature fluid never comes into contact with the electrical switch assembly.
Technical Selection Criteria
Selecting a high temperature switch requires a detailed analysis of the process conditions. The following table provides a general comparison of common technologies used in high-temperature level detection.
| Technology | Typical Max Temperature | Suitable Media | Key Advantage |
| :— | :— | :— | :— |
| RF Admittance | Up to 800°C (1472°F) | Fly ash, molten salts, liquids | Handles buildup and extreme heat |
| Rotary Paddle | Up to 400°C (752°F) | Cement, hot sand, grain | Simple, robust for heavy solids |
| Tuning Fork | Up to 250°C (482°F) | Clean liquids, powders | Compact, no calibration needed |
| Displacement | Up to 450°C (842°F) | Boiler water, hot oil | Purely mechanical, high pressure |
Material Compatibility
The wetted parts of the switch must withstand both the temperature and the chemical nature of the medium. Common materials include:
* 316L Stainless Steel: Standard for most high-temperature applications up to 500°C.
* Ceramic (Alumina): Used for insulation in RF probes where temperatures exceed the limits of polymers like PTFE or PEEK.
* Inconel or Hastelloy: Employed when high temperatures are combined with highly corrosive chemical environments.
Pressure Considerations
High temperature often correlates with high pressure, especially in steam applications. It is vital to confirm that the process connection (flange or thread) and the sensor body can withstand the combined thermal and pressure stresses. For detailed technical specifications on various models, engineers should refer to the Main Page for comprehensive product data.
Installation and Thermal Management
The longevity of a high temperature switch is largely dependent on how well the electronics are protected from the process heat. There are several engineering strategies to manage thermal transfer.
Heat Dissipation Fins
Many switches feature a series of metal fins between the process connection and the electronics housing. These fins increase the surface area of the instrument, allowing ambient air to cool the neck of the sensor before the heat reaches the sensitive circuit boards.
Remote Mounting
In cases of extreme heat, the electronics can be housed in a separate enclosure located several meters away from the sensing probe. A high-temperature cable connects the two. This is the most effective way to ensure the electronics operate within their rated ambient temperature (usually -40°C to +80°C).
Extension Rods
Using an extension rod or pipe allows the active sensing element to reach into the vessel while keeping the mounting point and the electronics further away from the heat source. This is particularly common in rotary paddle switches and tuning forks used in insulated silos.
Orientation and Gasketing
* Horizontal vs. Vertical: Vertical installation is often preferred in high-temperature applications as it allows for better natural convection cooling around the sensor neck.
* Gaskets: Standard rubber or Viton gaskets will fail in high-heat scenarios. Graphite or metallic spiral-wound gaskets are required for the flange connections.
Common Risks and Limitations
While high temperature switches are designed for durability, they are not immune to failure if misapplied.
1. Thermal Expansion: In very long probes (over 2 meters), thermal expansion can cause the probe to bow or stress the mounting connection. Engineers must account for the linear expansion coefficient of the probe material.
2. Signal Drift: In electronic switches like RF admittance, extreme temperature fluctuations can cause slight shifts in the dielectric constant of the insulation material, potentially leading to false triggers if the sensitivity is set too high.
3. Condensation: In high-temperature tanks containing moisture, steam can condense in the cooler electronics housing if the seals are not perfect or if there is no breather vent. This can lead to short circuits.
4. Coating and Caking: High temperatures can cause materials to bake onto the sensor. While RF admittance handles this well, mechanical switches like paddles or forks may eventually become stuck if the material hardens into a "crust."
Frequently Asked Questions (FAQs)
Q: At what temperature does a standard level switch become a "high temperature" switch?
A: Generally, any application exceeding 80°C to 100°C (176°F to 212°F) requires a switch with high-temperature considerations, such as specialized seals or cooling fins. Once the process exceeds 150°C, a dedicated high-temperature design is mandatory.
Q: Can I use a high temperature switch for both liquids and solids?
A: It depends on the technology. RF admittance switches are versatile and can often be used for both. However, tuning forks and rotary paddles are usually optimized for one or the other. Always verify the medium density and viscosity requirements.
Q: Do these switches require special wiring?
A: If the electronics are integrated, standard industrial wiring is usually sufficient. However, if using a remote-mounted configuration, the cable connecting the probe to the electronics must be rated for the high ambient temperatures near the vessel.
Q: How do I maintain a high temperature switch?
A: Maintenance should focus on inspecting the seals and checking for material buildup. For mechanical switches, ensure the bearings or paddles move freely. For electronic switches, periodic verification of the switch point against a known level is recommended.
Conclusion
Implementing a high temperature switch requires a balance between robust mechanical design and sensitive electronic detection. By understanding the measurement principles—whether it be the frequency shift of a tuning fork or the admittance change in an RF probe—engineers can select a solution that minimizes downtime and maximizes safety. Proper installation, particularly the use of heat dissipation techniques and correct material selection, remains the most effective way to ensure long-term reliability in the most demanding thermal environments. For further assistance in selecting the correct instrument for your specific industrial application, please consult the technical resources available on our Main Page.
