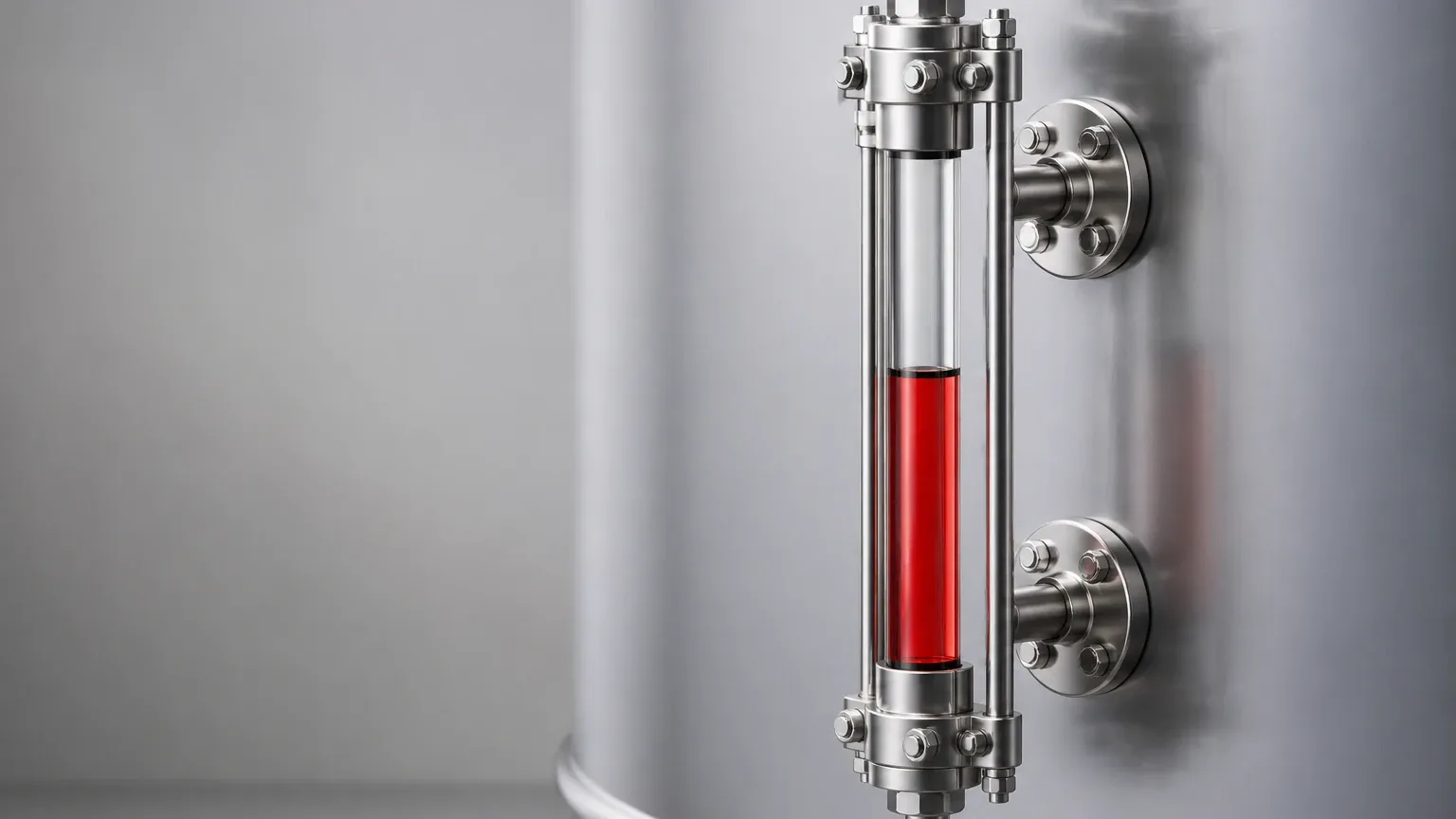

Magnetic Level Indicator
In industrial process control, the ability to monitor liquid levels safely and accurately is paramount. While electronic sensors provide data for automated systems, the requirement for a reliable, local, and power-free visual indication remains a critical safety and operational standard. The magnetic level indicator (MLI) has emerged as the preferred alternative to traditional glass sight gauges, particularly in high-pressure, high-temperature, or chemically aggressive environments. By utilizing the principles of buoyancy and magnetism, these instruments provide a clear visual representation of tank levels without the risk of glass breakage or leakage associated with direct-contact visual indicators.
Measurement Principles of Magnetic Level Indicators
The operation of a magnetic level indicator is based on two fundamental physical principles: Archimedes' Principle of Buoyancy and the law of magnetic attraction and repulsion. Unlike a standard sight glass, where the process fluid is viewed through a transparent tube, the MLI isolates the fluid within a robust, pressure-retaining metal chamber.
The Buoyancy Component
Inside the vertical chamber, which is connected to the process vessel, sits a sealed float. This float is engineered with a specific density lower than that of the process liquid, ensuring it floats accurately on the liquid surface. As the liquid level in the vessel rises or falls, the float moves accordingly within the chamber.
The Magnetic Coupling
The float contains an internal permanent magnet assembly. Outside the chamber, a visual indicator rail (often consisting of bi-color magnetic flags or rollers) is mounted. As the float moves, its magnetic field penetrates the non-magnetic chamber wall (typically stainless steel or plastic) and couples with the flags on the indicator rail. The magnetic force causes the flags to rotate 180 degrees. Typically, flags below the float level turn one color (e.g., red) to represent the liquid, while flags above the float remain a contrasting color (e.g., white) to represent the vapor space. This creates a sharp, high-visibility line that corresponds exactly to the liquid level inside the tank.
Key Components and Construction
To ensure long-term reliability in industrial settings, the construction of a magnetic level indicator must adhere to strict engineering standards. The primary components include:
1. The Chamber: Usually constructed from non-magnetic materials like 304/316L Stainless Steel, Titanium, or plastics like PVC and PP for corrosive applications. The chamber must be rated for the full design pressure and temperature of the vessel.
2. The Float: This is the most critical moving part. It must be pressurized or reinforced to prevent collapse under high process pressures and must be weighted precisely to match the specific gravity (SG) of the medium.
3. The Indicator Rail: This assembly is isolated from the process. It contains the bi-color flags, which are often housed in a glass or polycarbonate tube to protect them from environmental dust and moisture.
4. Process Connections: These are the flanges or threaded NPT/BSP connections that link the MLI chamber to the tank. Standard configurations include side-side, top-bottom, or side-bottom orientations.
Practical Selection Criteria
Selecting the correct magnetic level indicator requires a thorough understanding of the process conditions. Engineers must evaluate several factors to ensure the instrument performs accurately and safely.
Specific Gravity (SG)
The float must be lighter than the liquid it displaces. If the liquid has a low specific gravity (e.g., liquefied gases or hydrocarbons), the float must be larger or made of lighter materials like Titanium to maintain buoyancy. If the SG changes significantly due to temperature fluctuations, the indicated level may shift slightly, necessitating a float calibrated for the operating SG rather than the ambient SG.
Pressure and Temperature
Standard stainless steel MLIs can handle pressures up to 40 bar (approx. 580 psi) and temperatures up to 250°C. However, for high-pressure steam or chemical reactors, specialized chambers and high-strength floats are required to withstand pressures exceeding 200 bar or temperatures up to 450°C.
Material Compatibility
For general water treatment, 304 Stainless Steel is often sufficient. In chemical processing involving acids or bases, 316L Stainless Steel, Hastelloy, or PTFE-lined chambers are necessary to prevent corrosion. For highly corrosive, low-pressure applications, plastic variants like PVC or PVDF are cost-effective alternatives.
Selection Table for Magnetic Level Indicators
| Feature | Standard Industrial | High Pressure/Temp | Corrosive/Chemical |
| :— | :— | :— | :— |
| Chamber Material | SS304 / SS316L | Heavy-wall SS316L / Titanium | PVC / PP / PTFE Lined |
| Max Pressure | 40 bar (4.0 MPa) | Up to 250 bar (25 MPa) | 6 – 10 bar (0.6-1.0 MPa) |
| Max Temperature | 250°C | 450°C | 60°C – 100°C |
| Min Specific Gravity | 0.50 | 0.40 | 0.70 |
| Typical Applications | Water tanks, Oil storage | Boilers, High-pressure reactors | Acid storage, Plating baths |
Installation Considerations and Best Practices
Proper installation is vital for the mechanical integrity and accuracy of a magnetic level indicator. Because the system relies on a free-moving float, the following guidelines should be followed:
* Vertical Alignment: The chamber must be installed perfectly vertical. Even a slight tilt can cause the float to rub against the chamber walls, leading to friction, wear, or sticking.
* Magnetic Interference: Since the device operates on magnetic coupling, it must be kept away from large ferrous structures or high-voltage cables that generate strong electromagnetic fields. A minimum clearance of 100mm to 150mm from steel supports is generally recommended.
* Isolation Valves: It is best practice to install isolation valves (ball or gate valves) between the process vessel and the MLI. This allows for maintenance or cleaning of the chamber without draining the entire tank.
* Vent and Drain: Every MLI should be equipped with a vent plug at the top and a drain valve at the bottom. This facilitates the removal of trapped air during commissioning and the flushing of sediment during routine maintenance.
* Nozzle Placement: Ensure that the nozzles on the tank are aligned with the connections on the MLI. Misalignment can put mechanical stress on the chamber, potentially leading to stress corrosion cracking over time.
Limitations and Operational Constraints
While highly versatile, magnetic level indicators are not suitable for every application. Engineers should be aware of the following limitations:
1. Magnetic Particles: If the process fluid contains ferrous particles (e.g., rust or pipe scale), these particles will be attracted to the float's magnet. Over time, this buildup can increase the float's weight or cause it to jam against the chamber wall. In such cases, a magnetic trap should be installed in the bypass line.
2. High Viscosity: Extremely viscous liquids can impede the movement of the float. If the fluid is thick or prone to crystallization, the response time of the indicator will lag behind the actual level changes in the tank.
3. Coating and Scaling: Similar to viscosity issues, fluids that leave heavy deposits or scale can eventually interfere with float movement. Regular flushing of the chamber is required in these environments.
4. Specific Gravity Limits: There is a physical limit to how light a float can be made while still housing a magnet and resisting pressure. For fluids with an SG below 0.4, alternative technologies like radar may be more appropriate.
Integrating Remote Monitoring
A significant advantage of the magnetic level indicator is its ability to be upgraded with electronic components without breaching the pressure boundary. By strapping a reed-chain transmitter or a magnetostrictive sensor to the outside of the chamber, the local visual indicator becomes a dual-purpose device providing a 4-20mA HART or Modbus signal to a PLC or DCS. Additionally, magnetic switches can be clamped to the rail to provide high or low-level point alarms.
For a comprehensive overview of available technologies and to find the right configuration for your specific industrial needs, visit the Main Page.
Frequently Asked Questions (FAQs)
Q: Can a magnetic level indicator be used for interface measurement between two liquids?
A: Yes. By weighting the float to a specific gravity that is between the densities of the two liquids (e.g., between oil and water), the float will sink through the upper layer and float on the lower layer, effectively indicating the interface level.
Q: What maintenance is required for an MLI?
A: MLIs are relatively low-maintenance. The primary task is periodically flushing the chamber via the drain valve to remove any accumulated sludge or sediment. The indicator rail should also be checked for any damaged flags or moisture ingress.
Q: Why is my indicator showing a "broken" level (some flags flipped, some not)?
A: This usually happens if a float is moved too quickly through the chamber (surging) or if there is external magnetic interference. Most indicators can be "reset" by passing a handheld magnet along the rail to realign the flags.
Q: Are MLIs safe for hazardous areas?
A: Because the basic visual indication is purely mechanical and requires no power, it is inherently safe. If electronic transmitters or switches are added, they must be specified with the appropriate ATEX, IECEx, or UL certifications for the specific zone.
Conclusion
The magnetic level indicator remains a cornerstone of industrial level measurement due to its simplicity, safety, and clarity. By isolating the process fluid and providing a robust mechanical display, it eliminates the risks of traditional sight glasses while offering the flexibility to integrate with modern automation systems. Whether used in water treatment, chemical processing, or oil and gas, understanding the buoyancy and magnetic principles behind these devices ensures they are selected and installed for maximum operational life. For more detailed technical specifications and product options, refer to the Main Page for expert support.
