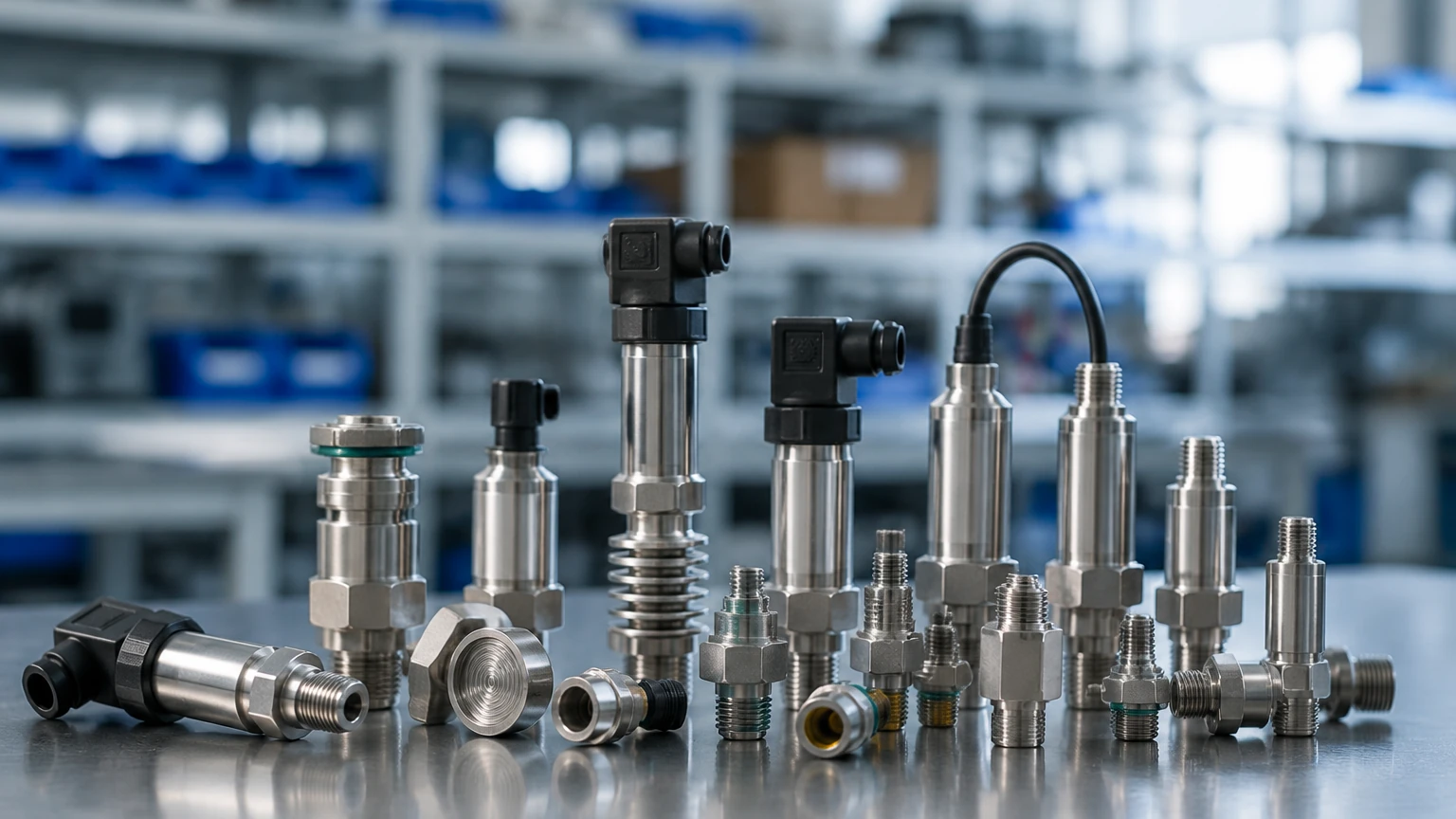

In the landscape of modern industrial automation, the pressure sensor industrial grade component serves as a fundamental sensory organ for control systems. Whether monitoring the structural integrity of a hydraulic press, managing the flow of natural gas through a pipeline, or determining the liquid level in a chemical storage tank, pressure measurement is indispensable. For engineers and procurement specialists, selecting the right sensor requires a deep understanding of measurement physics, material compatibility, and the specific environmental rigors of the application site.
Industrial pressure sensors convert physical force into an electrical signal. Unlike consumer-grade electronics, these devices are engineered to withstand extreme temperatures, corrosive media, and mechanical vibration while maintaining long-term stability. As a professional manufacturer, Welk provides high-performance solutions that integrate these sensors into comprehensive measurement systems, ensuring that process data remains accurate and actionable.
Core Measurement Principles
Before selecting a specific model, it is essential to understand the underlying technology that drives a pressure sensor industrial application. Most modern sensors rely on one of three primary physical principles.
Piezoresistive Sensors
This is the most widely used technology in industrial settings. It utilizes a silicon or ceramic diaphragm with integrated resistors. When pressure is applied, the diaphragm deforms, changing the electrical resistance of the sensing elements (the piezoresistive effect). These resistors are typically arranged in a Wheatstone bridge circuit to maximize sensitivity and temperature compensation. Piezoresistive sensors are favored for their high accuracy and excellent response time, though they often require isolation from corrosive media via a stainless steel or tantalum diaphragm.
Capacitive Sensors
Capacitive pressure sensors measure the change in electrical capacitance between a flexible diaphragm and a fixed metal plate. As pressure moves the diaphragm, the distance between the plates changes, altering the capacitance. These sensors are exceptionally robust and are often used for low-pressure applications or in environments where high overpressure protection is required. Their simple mechanical structure makes them resistant to electrical interference and thermal shocks.
Strain Gauge Sensors
Strain gauge technology involves bonding fine wire or foil patterns onto a supporting structure. As the structure deforms under pressure, the length and cross-section of the wire change, altering its resistance. While often less sensitive than piezoresistive types, strain gauge sensors are incredibly durable and are frequently used in heavy-duty industrial applications involving hydraulic systems or high-pressure gas cylinders exceeding 1,000 bar (14,500 PSI).
Hydrostatic Level Measurement via Pressure
One of the most common applications for a pressure sensor industrial unit is hydrostatic level measurement. This method relies on the principle that the pressure at the bottom of a liquid column is directly proportional to the height of the liquid and its density.
The formula used is:
P = ρ × g × h
* P: Hydrostatic pressure (Pa)
* ρ (rho): Density of the liquid (kg/m³)
* g: Acceleration due to gravity (approx. 9.81 m/s²)
* h: Height of the liquid column (m)
In practical engineering, a submersible pressure transmitter or a flange-mounted sensor at the bottom of the tank measures this pressure. By knowing the density of the fluid, the control system can calculate the exact level. This method is highly reliable for water treatment, oil storage, and chemical processing because it involves no moving parts. For those seeking specialized equipment for these tasks, you can Review product options and application support at the Welk main page to find instruments tailored for hydrostatic applications.
Technical Selection Criteria for Industrial Applications
Choosing a pressure sensor industrial device involves more than matching a pressure range. Engineers must evaluate several critical parameters to ensure the longevity of the instrument.
1. Pressure Type: Gauge, Absolute, or Differential
* Gauge Pressure: Measured relative to atmospheric pressure. Most common for tank level and pipe pressure.
* Absolute Pressure: Measured relative to a perfect vacuum. Used in vacuum distillation and meteorological applications.
* Differential Pressure: Measures the difference between two points. Essential for monitoring filter clogging or flow rates across an orifice plate.
2. Media Compatibility
The wetted parts of the sensor must be chemically compatible with the process fluid. While 316L stainless steel is the standard, aggressive chemicals like hydrochloric acid or seawater may require specialized materials such as Hastelloy C, Tantalum, or Ceramic diaphragms. Welk offers customized OEM/ODM services to match these specific material requirements for harsh industrial environments.
3. Output Signals and Communication
In the context of industrial automation, the sensor must communicate with a PLC or DCS. Common standards include:
* 4-20 mA Analog: The industry standard for long-distance transmission with high noise immunity.
* 0-10 VDC: Common in HVAC and light industrial machinery.
* HART Protocol: Allows digital data to be superimposed on the 4-20 mA signal for remote diagnostics.
* RS485/Modbus: Ideal for digital networking of multiple sensors over a single bus.
4. Environmental Protection
Industrial sensors often face moisture, dust, and explosive atmospheres. Look for IP ratings (e.g., IP65 for splash resistance, IP68 for continuous immersion). For oil and gas or chemical plants, ATEX or IECEx intrinsic safety certifications are mandatory to prevent the sensor from becoming an ignition source.
Industrial Sensor Selection Table
| Feature | Piezoresistive | Capacitive | Strain Gauge |
| :— | :— | :— | :— |
| Typical Accuracy | 0.1% to 0.25% FS | 0.05% to 0.1% FS | 0.25% to 0.5% FS |
| Pressure Range | 0.1 bar to 600 bar | 0.01 bar to 40 bar | 10 bar to 2,000+ bar |
| Stability | High | Excellent | Moderate |
| Cost | Moderate | High | Lower |
| Best Use Case | General process control | Low-pressure / High-precision | Heavy hydraulic machinery |
Installation and Calibration Best Practices
Correct installation is as vital as the sensor quality itself. A poorly installed pressure sensor industrial unit will yield inaccurate data regardless of its laboratory-tested precision.
Mounting Orientation
For gas applications, sensors should be mounted above the pipeline to prevent moisture from collecting on the diaphragm. For liquid applications, mounting below the pipe prevents air bubbles from entering the sensor housing, which could cause erratic readings.
Venting for Gauge Pressure
Submersible hydrostatic sensors used for level measurement must have a vented cable. This vent tube allows the sensor to compensate for changes in barometric pressure. If the vent is blocked or kinked, the reading will drift as the local weather changes.
Impulse Piping
In high-temperature applications (e.g., steam), use a siphon or impulse piping to create a "water seal." This prevents live steam from directly contacting the sensor diaphragm, which could exceed the device's thermal limits (typically 85°C to 125°C for standard electronics).
Zero and Span Calibration
Industrial sensors should be calibrated annually. "Zeroing" ensures the sensor reads zero at atmospheric pressure, while "Span" adjustment ensures the output is correct at the maximum expected pressure. Many modern Welk transmitters feature external buttons or HART communication to simplify this process in the field.
Limitations and Common Risks
While industrial pressure sensors are highly reliable, they are not infallible. Awareness of common failure modes is essential for maintenance planning.
1. Pressure Spikes (Water Hammer): Rapid valve closures can create pressure surges many times higher than the sensor's rating. Using a pressure snubber can dampen these spikes and protect the diaphragm.
2. Clogging: In wastewater or slurry applications, viscous fluids can build up in the pressure port. Flush-diaphragm sensors are recommended here, as they eliminate the cavity where debris can collect.
3. Temperature Drift: All sensors experience some change in accuracy as temperature fluctuates. High-quality industrial sensors include internal temperature compensation circuits to minimize this error, but extreme fluctuations may still require external insulation.
4. Electromagnetic Interference (EMI): Sensors located near large motors or VFDs can pick up electrical noise. Using shielded cables and ensuring proper grounding of the sensor housing is critical for signal integrity.
Frequently Asked Questions (FAQ)
Q: What is the difference between a pressure sensor and a pressure transmitter?
A: In industrial terminology, a "sensor" is the raw sensing element, while a "transmitter" includes the electronics to amplify the signal and convert it into a standard output like 4-20 mA or Modbus.
Q: How do I choose between a ceramic and a stainless steel diaphragm?
A: Stainless steel (316L) is versatile and handles high pressures well. Ceramic is often better for abrasive fluids or specific corrosive chemicals where steel might fail, and it offers excellent recovery after overpressure events.
Q: Can I use a pressure sensor industrial unit to measure flow?
A: Yes, by using a differential pressure (DP) sensor across a restriction like an orifice plate or Venturi tube. The square root of the pressure drop is proportional to the flow rate.
Q: How often should I replace my pressure sensors?
A: There is no fixed expiration date. With proper calibration and protection from overpressure/corrosion, high-quality industrial sensors can last 10 years or more. Replacement is usually driven by drift that exceeds the allowable process tolerance.
Conclusion
The selection of a pressure sensor industrial component is a critical decision that impacts the safety and efficiency of an entire facility. By understanding the measurement principles—whether piezoresistive, capacitive, or strain gauge—and carefully evaluating the media, environment, and output requirements, engineers can implement robust solutions. Welk continues to support the global industrial sector with advanced level and pressure measurement technologies designed for the most demanding applications. For detailed technical specifications and to explore our full range of industrial instruments, visit the Main Page for comprehensive product information.
