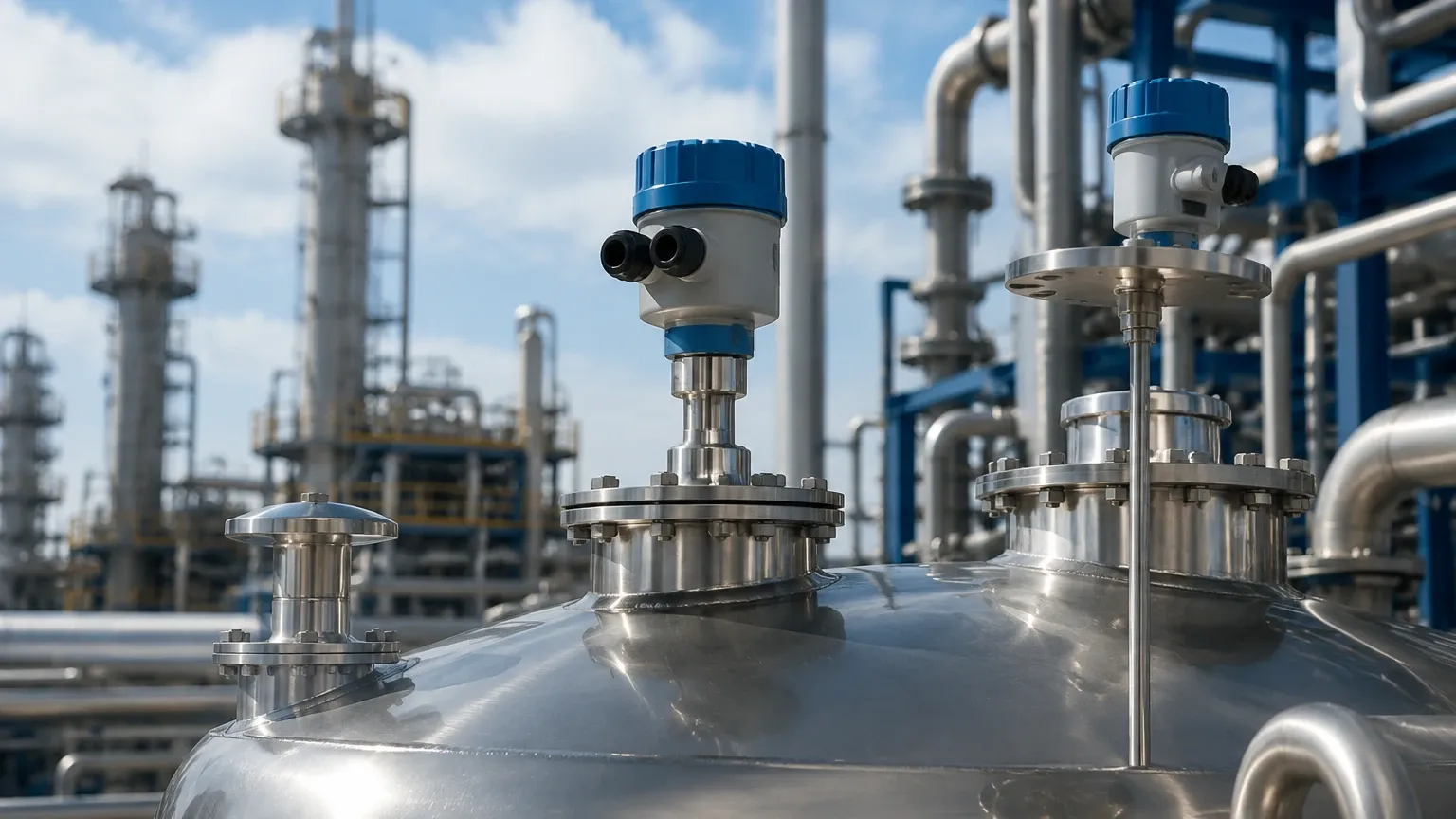

Difference Between Radar and Guided Wave Radar Level Transmitter

In industrial process automation, selecting the correct level measurement technology is critical for operational safety, inventory accuracy, and process efficiency. Among the most reliable technologies available today are microwave-based systems. However, engineers often face a choice between two distinct methods: non-contact radar and guided wave radar (GWR).

While both utilize electromagnetic pulses to detect material levels, their physical execution and suitability for specific environments differ significantly. This guide explores the technical difference between radar and guided wave radar level transmitter systems, providing the factual foundation necessary for informed procurement and engineering design.

Measurement Principles: How They Work

Before comparing the two, it is essential to understand the physics governing their operation. Both technologies measure the "time of flight"—the duration it takes for a microwave signal to travel to a surface and return to the sensor.

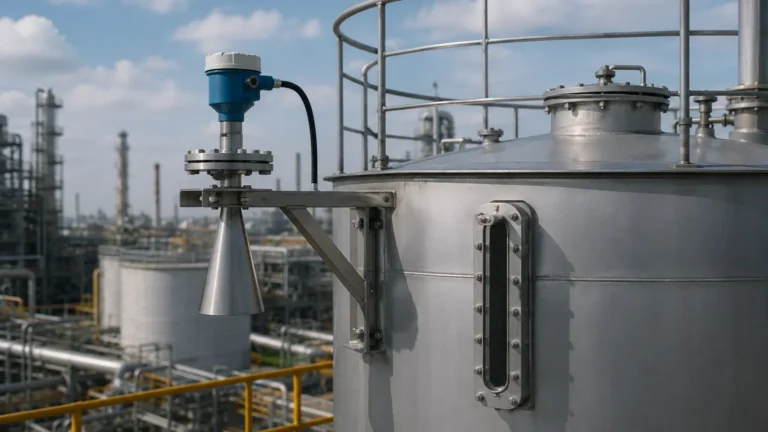

Non-Contact Radar Level Meters

Non-contact Radar Level Meters emit electromagnetic waves through the air from an antenna. These waves travel at the speed of light. When they encounter a medium with a different dielectric constant (εr) than the air or vapor space, a portion of the energy is reflected back to the transmitter.

Modern non-contact systems typically use one of two modulation techniques:

1. Pulse Radar: The transmitter sends a short microwave pulse and measures the time it takes to return.

2. FMCW (Frequency Modulated Continuous Wave): The transmitter emits a continuous signal with a constantly changing frequency. The difference in frequency between the emitted and received signal is proportional to the distance. FMCW is generally preferred for high-precision industrial applications due to its superior signal-to-noise ratio.

Guided Wave Radar (GWR)

Guided Wave Radar is based on the principle of Time Domain Reflectometry (TDR). Instead of broadcasting waves through free space, GWR directs a low-energy microwave pulse along a physical waveguide (a probe). This probe can be a single metal rod, a flexible cable, or a coaxial tube.

When the pulse reaches the surface of the product (liquid or solid), the change in the dielectric constant causes a reflection. Because the signal is confined to the path of the probe, the energy is concentrated, allowing for more efficient measurement of materials with low reflectivity.

Key Differences: Radar vs. Guided Wave Radar

The primary difference between radar and guided wave radar level transmitter technology lies in the signal propagation path and how the energy interacts with the process environment.

1. Media Contact

* Non-Contact Radar: As the name implies, no part of the instrument touches the process media. This makes it ideal for highly corrosive, viscous, or abrasive materials that might damage or coat a physical probe. It is also preferred in hygienic (food and beverage/pharmaceutical) applications where contact must be minimized.

* Guided Wave Radar: This is a contact-based technology. The probe must extend to the bottom of the measurement range. While this provides a very stable signal, the probe material must be chemically compatible with the process fluid.

2. Dielectric Constant (εr) Requirements

* Non-Contact Radar: Because the signal spreads out (beam angle), a significant amount of energy is lost. Therefore, non-contact radar usually requires a medium with a higher dielectric constant (typically εr > 1.4 to 2.0) to ensure a strong enough return signal, especially in turbulent conditions.

* Guided Wave Radar: By guiding the signal along a probe, energy loss is minimized. GWR can effectively measure media with very low dielectric constants (as low as εr 1.2), such as liquefied gases, oils, and pure solvents.

3. Surface Conditions (Foam and Turbulence)

* Non-Contact Radar: Heavy foam can absorb or scatter the microwave signal, leading to signal loss. Similarly, extreme turbulence can deflect the signal away from the antenna.

* Guided Wave Radar: GWR is remarkably resilient to surface foam and turbulence. Since the signal is focused on the probe, it can often "see through" foam to detect the true liquid level below, provided the foam is not highly conductive.

4. Tank Internal Obstructions

* Non-Contact Radar: These meters require a clear "line of sight." Internal structures like agitators, heating coils, or ladders can cause false echoes. While modern software can "map out" these obstructions, they still present a challenge for installation.

* Guided Wave Radar: Because the signal is contained within a small radius around the probe (the "electromagnetic field zone"), GWR is less affected by tank internals, provided the probe is installed with sufficient clearance from metal walls and obstructions.

—

Technical Comparison Table

| Feature | Non-Contact Radar | Guided Wave Radar (GWR) |

| :— | :— | :— |

| Measurement Type | Non-contact | Contact (Probe-based) |

| Signal Path | Free space (Beam) | Waveguide (Probe) |

| Dielectric Sensitivity | Moderate to High (εr > 1.4) | Very High (εr > 1.2) |

| Foam Performance | Poor to Moderate | Excellent |

| Turbulence Handling | Moderate | Excellent |

| Max Temperature | Up to +450°C (842°F) | Up to +450°C (842°F) |

| Max Pressure | Up to 160 bar (2320 psi) | Up to 400 bar (5800 psi) |

| Installation Complexity | Low (Top mount) | Moderate (Requires probe length) |

| Maintenance | Extremely Low | Periodic probe cleaning may be needed |

—

Installation Considerations

For Non-Contact Radar Level Meters

1. Beam Angle and Nozzle Height: The antenna must be positioned so the signal beam does not hit the nozzle edge or the tank wall. Higher frequency radars (e.g., 80GHz) have narrower beam angles, allowing for installation in smaller nozzles and taller tanks.

2. Orientation: The transmitter should be mounted vertically, perpendicular to the liquid surface. For solids, a swiveling flange may be required to aim the beam at the material's angle of repose.

3. Dead Zone: There is a small "blocking distance" (typically 50mm to 300mm) at the top of the sensor where measurement is not possible.

For Guided Wave Radar Transmitters

1. Probe Selection: Choose a rod probe for liquids in small tanks, a cable probe for tall silos (up to 60m/196ft), or a coaxial probe for low-dielectric fluids or tanks with many internals.

2. Clearance: Maintain a minimum distance (usually 100mm to 300mm) from the tank wall and internal obstructions to prevent signal interference.

3. Nozzle Diameter: Ensure the nozzle is wide enough to prevent the probe from touching the sides, which would cause a short circuit in the signal.

Limitations and Application Risks

Non-Contact Radar Limitations

* Vapor and Condensation: While microwaves generally pass through vapor, extremely heavy steam or heavy condensation on the antenna lens can attenuate the signal. Specialized PTFE or ceramic covers are often used to mitigate this.

* Vacuum Conditions: In a vacuum, the dielectric constant of the space is 1.0. While radar works in a vacuum, the transition to the liquid surface must be distinct enough for detection.

Guided Wave Radar Limitations

* Mechanical Stress: In tall silos or high-flow tanks, the lateral force on a cable or rod probe can be significant. If the probe breaks or bends into the tank wall, the unit will fail.

* Build-up: While GWR is better with coating than many technologies, extremely thick, conductive build-up (like wet mud or metallic pastes) can bridge the gap between the probe and the tank wall or coat the probe enough to cause measurement errors.

Selection Criteria: Which One Should You Choose?

Choosing between these technologies depends on the specific process parameters.

Choose Non-Contact Radar if:

* The media is highly corrosive or extremely hot, and you want to avoid contact.

* The tank has no easy way to support a long probe.

* You are measuring a hygienic or sterile fluid.

* The media is prone to heavy coating or crystallization that would stick to a probe.

Choose Guided Wave Radar if:

* The tank is narrow or has many internal obstructions.

* The media has a very low dielectric constant (e.g., hydrocarbons).

* There is heavy foam or significant surface turbulence.

* You need to measure an interface (e.g., the boundary between oil and water).

Frequently Asked Questions (FAQs)

Q: Can non-contact radar measure interface levels?

No. Non-contact radar typically reflects off the first surface it encounters. To measure an interface (e.g., oil over water), Guided Wave Radar is the standard choice because the signal can pass through the upper low-dielectric layer and reflect off the lower high-dielectric layer.

Q: How does frequency affect non-contact radar?

Lower frequencies (6GHz – 10GHz) are more tolerant of steam and dust. Higher frequencies (26GHz – 80GHz) provide narrower beam angles and better precision, making them easier to install in complex tanks.

Q: Is GWR more expensive than non-contact radar?

Generally, the costs are comparable. However, for very deep tanks, the cost of a long GWR cable probe may exceed the cost of a high-frequency non-contact radar unit.

Q: Does the tank material matter?

For non-contact radar, a metal tank acts as a shield against external interference and provides a clean environment for the signal. In plastic tanks, the signal can pass through the tank wall, which may require the sensor to be mounted inside or shielded.

Conclusion for International Buyers

When sourcing level measurement equipment, the difference between radar and guided wave radar level transmitter selection often comes down to the physical constraints of the vessel and the chemical properties of the media. For most standard liquid applications where the antenna can be kept clean, non-contact Radar Level Meters offer the longest service life due to the lack of moving parts or wetted probes. However, for difficult applications involving low-dielectric fluids or heavy foam, GWR remains the engineering gold standard.

Before finalizing a purchase, ensure you have confirmed the following with your technical supplier:

1. Media Dielectric Constant: Is it above the sensor's minimum threshold?

2. Process Temperature and Pressure: Do they fall within the instrument’s safety rating?

3. Vessel Drawing: Are there obstructions that will interfere with the beam or probe?

4. Chemical Compatibility: Are the wetted parts (probes, seals, or antennas) resistant to the process fluid?
