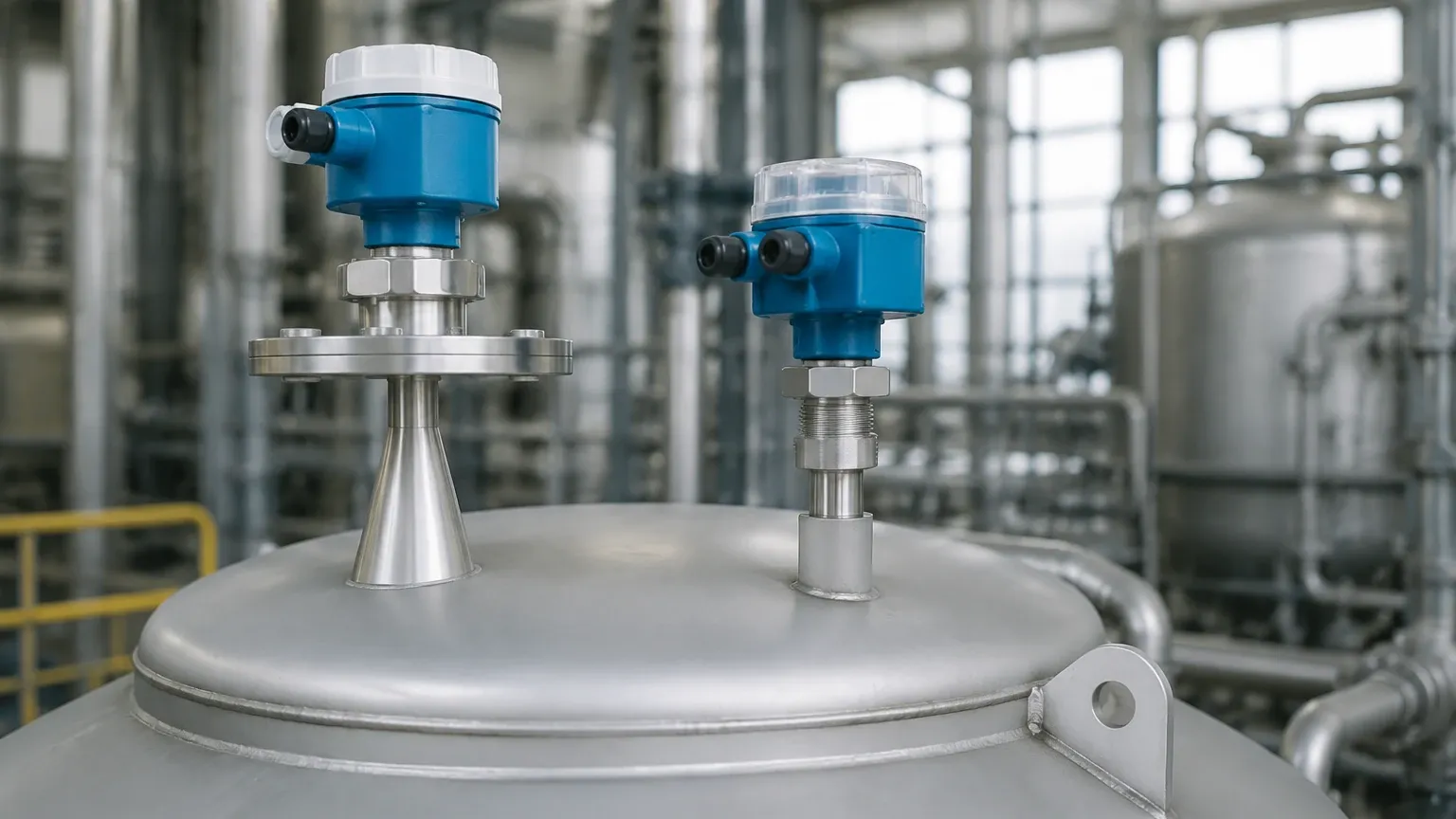

Radar and Ultrasonic Level Transmitter Difference
In the field of industrial process automation, selecting the correct instrumentation for liquid and solid level monitoring is critical for operational safety, inventory accuracy, and process efficiency. Among the various technologies available, non-contact methods are often preferred due to their low maintenance requirements and ability to measure corrosive or abrasive media without physical contact. The two most prominent non-contact technologies are ultrasonic and radar.
Understanding the fundamental radar and ultrasonic level transmitter difference is essential for engineers and procurement professionals. While both technologies utilize the Time-of-Flight (ToF) principle to determine distance, the physics of the waves they employ—sound versus electromagnetism—results in vastly different performance characteristics under varying pressure, temperature, and atmospheric conditions.
1. Measurement Principles Explained
Before comparing the two technologies, it is necessary to understand how each sensor interacts with the environment and the process media.
Ultrasonic Level Measurement Principle
Ultrasonic transmitters utilize a piezoelectric transducer to emit high-frequency sound pulses, typically in the range of 20 kHz to 200 kHz. These sound waves travel through the air or gas space above the medium, reflect off the surface, and return to the transducer. The device measures the time elapsed between emission and reception.
Because the speed of sound is known (approximately 343 m/s in air at 20°C), the distance ($D$) can be calculated using the formula:
$D = (c \times t) / 2$
Where $c$ is the speed of sound and $t$ is the transit time. The level of the material is then derived by subtracting this distance from the total tank height.
Radar Level Measurement Principle
Radar Level Meters utilize electromagnetic waves, typically in the microwave spectrum (6 GHz, 26 GHz, or 80 GHz). Unlike sound, electromagnetic waves do not require a physical medium for propagation and travel at the speed of light ($c \approx 300,000$ km/s).
There are two primary types of radar measurement:
1. Pulse Radar: Similar to ultrasonic, it sends a pulse and measures the return time.
2. FMCW (Frequency Modulated Continuous Wave): The transmitter emits a continuous signal with a constantly changing frequency. The difference in frequency between the emitted signal and the reflected signal is proportional to the distance. FMCW is generally more accurate and is the standard for high-end industrial radar sensors.
2. Key Radar and Ultrasonic Level Transmitter Differences
The choice between these two technologies often comes down to the "three Ps": Physics, Process, and Price.
Medium of Propagation
* Ultrasonic: Sound waves require a medium (gas or air). Consequently, ultrasonic sensors cannot function in a vacuum. Because the speed of sound varies significantly with air density, temperature, and humidity, these sensors require integrated temperature compensation to maintain accuracy.
* Radar: Electromagnetic waves travel through a vacuum and are virtually unaffected by the composition, temperature, or pressure of the gas layer above the liquid. This makes radar inherently more stable in complex process environments.
Surface Conditions and Foam
* Ultrasonic: Sound waves are mechanical. If the liquid surface is covered in heavy, thick foam, the sound waves are often absorbed rather than reflected, leading to a loss of signal (Signal-to-Noise ratio degradation).
* Radar: Microwaves can often penetrate light foam to reach the liquid surface. However, very dense or metallic foam may reflect the signal prematurely. Generally, radar performs better in agitated or turbulent surfaces due to its higher signal strength and advanced algorithms.
Material Properties (Dielectric Constant)
* Ultrasonic: The reflection of sound depends on the change in density between the air and the material. It is largely unaffected by the electrical properties of the material.
* Radar: The strength of the reflection depends on the Dielectric Constant ($ε_r$) of the medium. Materials with a low dielectric constant (like liquid nitrogen or certain oils, $ε_r < 2.0$) reflect very little energy, requiring high-sensitivity radar or guided-wave radar. Water, with a high $ε_r$ of ~80, provides an excellent reflection for radar.
3. Selection Criteria: Comparison Table
| Feature | Ultrasonic Transmitter | Radar Level Meter |
| :— | :— | :— |
| Wave Type | Mechanical (Sound) | Electromagnetic (Microwave) |
| Medium Required | Yes (Air/Gas) | No (Works in Vacuum) |
| Accuracy | Typical ±0.25% of range | Up to ±1 mm (80 GHz models) |
| Max Range | Up to 15–30 m | Up to 100–120 m |
| Pressure Limits | Low (typically < 0.3 MPa) | High (up to 40 MPa or more) |
| Temp Limits | Low (typically < 80°C) | High (up to 450°C or more) |
| Dust/Steam Impact | High (Sound attenuation) | Minimal |
| Cost | Economical | Higher Initial Investment |
4. Installation Considerations and Constraints
Proper installation is paramount for both technologies to avoid false echoes from internal tank structures like ladders, agitators, or heating coils.
Blocking Distance (Dead Zone)
Both sensors have a "dead zone" directly beneath the sensor face where measurement is impossible.
* Ultrasonic: Typically has a larger dead zone (0.2 m to 0.8 m) because the transducer needs time to stop vibrating after emitting a pulse before it can "listen" for the return.
* Radar: Modern high-frequency radar (80 GHz) has a very small dead zone, often as little as 0.05 m (50 mm), allowing for measurement nearly to the top of the vessel.
Beam Angle and Obstacles
The beam angle determines how much the signal spreads. A wider beam is more likely to hit tank walls or obstructions.
* Ultrasonic beams are generally wider (10° to 15°).
* Radar, especially 80 GHz units, offers very narrow beam angles (as low as 3°), which allows for installation in narrow tanks or vessels with many internal obstructions.
Nozzle Installation
Radar antennas must often be mounted on nozzles. If the nozzle is too long or narrow, it can create internal reflections. Ultrasonic sensors also require a clear path, but since they are often used in open-air sumps or large basins, nozzle interference is less common than in closed-vessel radar applications.
5. Application Risks and Limitations
When to Avoid Ultrasonic:
1. Vacuum Applications: The sensor will fail immediately as there is no medium to carry the sound.
2. High Steam/Vapor: High concentrations of steam can change the speed of sound and attenuate the signal, leading to significant errors.
3. High Noise Environments: Heavy industrial machinery operating at frequencies near the ultrasonic pulse can cause interference.
When to Avoid Radar:
1. Extremely Low Dielectric Media: If measuring a dry solid or a liquid with $ε_r < 1.4$ in a large tank, the signal may be too weak for standard non-contact radar.
2. Budget-Constrained Simple Water Apps: For simple, ambient-pressure water tank monitoring where accuracy requirements are modest, radar may be over-engineered and cost-prohibitive compared to ultrasonic.
6. Buyer’s Checklist: What to Confirm Before Purchase
When sourcing level measurement equipment from an international manufacturer like Welk, provide the following data to ensure the correct technology is selected:
* Medium Characteristics: Is the liquid corrosive? What is its dielectric constant? Is there foam or agitation?
* Vessel Geometry: Provide the height and diameter. Are there internal obstructions like agitators or spray balls?
* Atmospheric Conditions: What are the maximum and minimum operating pressures and temperatures? Is there a vacuum?
* Mounting Requirements: What is the flange or thread size? Is there a specific nozzle height to consider?
* Output Requirements: Do you require 4-20mA HART, RS485 Modbus, or Profibus?
7. Frequently Asked Questions (FAQs)
Q: Can radar measure the level of solids like grain or cement?
A: Yes. High-frequency Radar Level Meters are excellent for solids because they can penetrate dust and handle the low dielectric properties of materials like plastic pellets or grain better than ultrasonic sensors, which struggle with the uneven surfaces and dust of solid piles.
Q: Does wind affect ultrasonic sensors?
A: Yes. In outdoor applications like river level monitoring, strong wind can "blow" the sound pulse away from the receiver or create turbulence in the air, leading to inconsistent readings. Radar is unaffected by wind.
Q: Is radar always better than ultrasonic?
A: Technically, radar is more versatile and robust. However, for standard water treatment applications, open channels, and sumps where conditions are stable, ultrasonic transmitters remain a cost-effective and reliable solution.
Q: How do I handle condensation on the sensor face?
A: For ultrasonic sensors, condensation can block the transducer. Many radar sensors feature PTFE drip-off antenna designs or lenses that allow condensation to roll off without affecting the microwave signal.
Conclusion
The radar and ultrasonic level transmitter difference lies primarily in how the measurement signal interacts with the process environment. While ultrasonic sensors offer a cost-effective solution for simple, atmospheric liquid applications, radar technology provides the precision and reliability required for complex industrial processes involving high temperatures, pressures, and vapors. By carefully evaluating the dielectric constant of the media and the physical constraints of the vessel, engineers can select the instrumentation that ensures long-term operational stability.
