What Does a Level Gauge Do

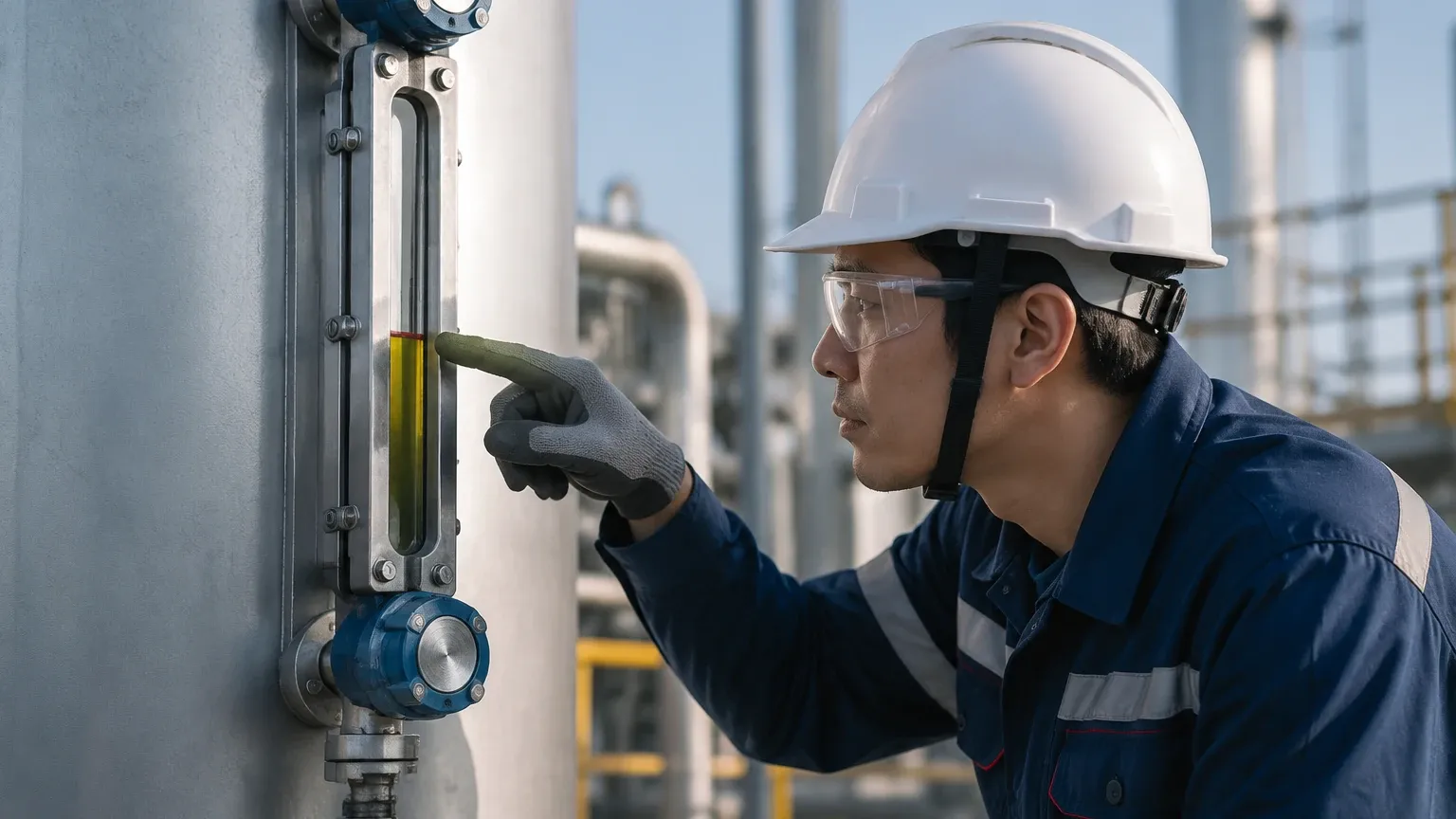

In the context of industrial process control and storage, understanding the fundamental question of what does a level gauge do is essential for ensuring operational safety and efficiency. At its core, a level gauge is a device used to provide a visual or mechanical indication of the height of a liquid or solid within a pressurized or atmospheric vessel. Unlike electronic sensors that may transmit data to a remote PLC (Programmable Logic Controller), a level gauge primarily serves as a local reference point, allowing operators to verify the contents of a tank directly at the source.
Industrial environments, such as chemical processing plants, water treatment facilities, and oil refineries, rely on Magnetic & Local Level Gauges to maintain inventory accuracy and prevent hazardous conditions like overfilling or dry-running pumps. This guide explores the mechanical principles, selection criteria, and practical applications of these vital instruments.
Measurement Principles of Local Level Gauges
To understand what does a level gauge do, one must first understand how it interacts with the medium. Level gauges operate on several physical principles, depending on their design. The most common principles include buoyancy, hydrostatic pressure, and optical refraction.
The Buoyancy Principle
Most mechanical level gauges, particularly magnetic types, operate based on Archimedes' principle. A float is designed with a density lower than the process liquid, allowing it to stay on the surface. As the liquid level rises or falls, the float moves accordingly. In a magnetic level gauge, this float contains a permanent magnet assembly that interacts with an external indicator.
Optical Refraction
Traditional glass level gauges utilize the refractive properties of light. In a reflex-style gauge, the glass has internal prisms. When the glass is in contact with gas or vapor, light is reflected back to the observer, appearing bright. When in contact with a liquid, the light is absorbed, making the liquid column appear dark. This provides a clear, high-contrast interface for the operator.
Magnetic Coupling
Magnetic level gauges improve upon glass gauges by isolating the process fluid from the indicator. The float’s magnetic field passes through the wall of a non-magnetic chamber (usually stainless steel) to flip small, bi-colored magnetic flags or move a magnetic follower on an external scale. This eliminates the risk of glass breakage and leaks, which is a critical safety consideration in high-pressure or toxic applications.
Types of Level Gauges and Their Functions
Different industrial scenarios require specific gauge designs. The choice often depends on the chemical compatibility, pressure, and temperature of the medium.
| Gauge Type | Primary Principle | Best Use Case | Maximum Pressure (Typical) |
| :— | :— | :— | :— |
| Magnetic Level Gauge | Buoyancy & Magnetism | Hazardous, toxic, or high-pressure liquids | 200 bar (2900 psi) |
| Reflex Glass Gauge | Optical Refraction | Clean, non-viscous liquids | 40 bar (580 psi) |
| Transparent Glass Gauge | Direct Vision | Interface detection and dirty fluids | 120 bar (1740 psi) |
| Tubular Glass Gauge | Direct Vision | Low-pressure, non-hazardous water tanks | 10 bar (145 psi) |
What Does a Level Gauge Do in Practice?
While the primary function is indicating height, the practical utility of a level gauge extends into several critical operational areas:
1. Manual Verification of Automated Systems: Electronic transmitters (such as radar or ultrasonic sensors) can occasionally drift or fail due to signal interference. A local level gauge provides a "source of truth" that allows operators to cross-check electronic readings during routine rounds.
2. Safety and Redundancy: In the event of a power failure, electronic sensors stop functioning. Because most Magnetic & Local Level Gauges are purely mechanical and require no external power, they continue to provide accurate readings, ensuring the plant remains safe during emergencies.
3. Interface Measurement: Certain gauges are designed to show the boundary between two immiscible liquids, such as oil and water. By weighting the float to a specific gravity between the two liquids, the gauge can accurately track the interface level.
4. Point Level Control: Many magnetic gauges can be fitted with bistable switches. As the float passes a switch, it triggers an alarm or starts/stops a pump, combining continuous indication with point level control.
Key Selection Criteria
When determining which level gauge is suitable for a project, engineers must evaluate several technical parameters. Selecting the wrong gauge can lead to inaccurate readings or catastrophic mechanical failure.
Process Fluid Density (Specific Gravity)
For buoyancy-based gauges, the float must be engineered to match the specific gravity (SG) of the liquid. If the liquid is too light (e.g., liquefied gases with an SG of 0.45), the float may not be buoyant enough to track the surface. Conversely, if the liquid is very dense, a standard float may sit too high, causing an offset in the reading.
Pressure and Temperature Ratings
Level gauges are pressure vessels. Standard magnetic gauges are often rated for temperatures ranging from -196°C (-320°F) for cryogenic applications to over 400°C (752°F) for steam and thermal oil. Pressure ratings must account for both the operating pressure and potential surges within the system.
Chemical Compatibility
The wetted materials—the parts of the gauge that touch the liquid—must be resistant to corrosion. Common materials include 316L Stainless Steel, Titanium, Hastelloy, and plastics like PVC or PTFE for highly corrosive acids.
Installation and Engineering Considerations
Proper installation is as important as the selection of the instrument itself. A poorly installed level gauge will provide inaccurate data and may become a maintenance burden.
* Vertical Alignment: Level gauges must be installed perfectly vertical. If the gauge is tilted, the internal float may experience friction against the chamber walls, leading to "sticking" and false readings.
* Isolation Valves: It is standard engineering practice to install isolation valves (ball or needle valves) between the vessel and the gauge. This allows the gauge to be removed for maintenance or cleaning without depressurizing the entire tank.
* Venting and Draining: Every gauge installation should include a vent valve at the top and a drain valve at the bottom. This allows operators to clear the chamber of trapped gas or sediment, which is essential for accurate buoyancy.
* Center-to-Center Distance: This is the measurement between the two connection points on the tank. Standard lengths range from 300 mm to over 6000 mm. For very long spans, magnetic gauges are often preferred over glass because they can be manufactured in sections without the risk of glass breakage.
Limitations and Potential Risks
While highly reliable, level gauges are not universal solutions. Understanding their limitations is key to successful implementation.
* Viscosity and Coating: Highly viscous liquids or those that tend to crystallize can impede the movement of the float in a magnetic gauge or obscure the glass in a sight gauge. In these cases, internal coatings or steam jackets may be required to keep the fluid moving.
* Magnetic Interference: Because magnetic gauges rely on internal magnets, they should not be installed near high-power electrical lines or large iron structures that could distort the magnetic field and cause the indicator flags to fail.
* Solid Particles: If the process fluid contains heavy sediment or metallic particles, these can accumulate in the bottom of the chamber or stick to the magnetic float, eventually causing it to sink or jam.
Frequently Asked Questions (FAQ)
Q: Can a level gauge be used for solids?
A: Standard magnetic and glass level gauges are designed for liquids. For solids, like powders or grains, different technologies such as rotating paddles or guided wave radar are typically used.
Q: How often should a level gauge be calibrated?
A: Mechanical level gauges do not require "calibration" in the electronic sense. However, they should be inspected annually for float integrity, sediment buildup, and the condition of the seals and gaskets.
Q: What is the difference between a level gauge and a level transmitter?
A: A level gauge provides a local visual display for human operators. A level transmitter converts the level measurement into an electrical signal (like 4-20mA) to be sent to a control system. Many modern magnetic gauges can be equipped with a transmitter to perform both functions simultaneously.
Q: Are magnetic level gauges safe for high-pressure steam?
A: Yes, provided they are designed with high-temperature magnets and the chamber is rated for the specific steam pressure. They are often preferred over glass gauges in steam applications because they eliminate the risk of "glass thinning" caused by the corrosive nature of high-temperature boiler water.
Conclusion
So, what does a level gauge do? It serves as the primary visual interface between the process and the operator, providing a fail-safe, mechanical method of monitoring tank contents. By selecting the appropriate Magnetic & Local Level Gauges, industrial facilities can ensure they have a reliable backup to electronic systems, enhancing both safety and operational continuity. Whether dealing with cryogenic liquids or high-pressure steam, the correct gauge is a fundamental component of any robust process engineering design.
