Calculate the Absolute Pressure P1 of the Manometer

In industrial process control and fluid mechanics, the ability to accurately determine pressure is fundamental to safety, efficiency, and system integrity. Manometers, among the oldest and most reliable pressure measurement instruments, operate on the principle of hydrostatic balance. While modern facilities often utilize digital transmitters, the underlying physics remains the cornerstone of instrumentation engineering. To effectively manage pressurized systems, engineers must frequently calculate the absolute pressure p1 of the manometer, a process that requires a clear understanding of the relationship between gauge pressure, atmospheric pressure, and fluid dynamics.

This guide provides a comprehensive technical overview of the principles of manometry, the mathematical frameworks required for calculation, and practical considerations for selecting and installing these instruments in industrial environments.

Understanding the Principles of Manometry

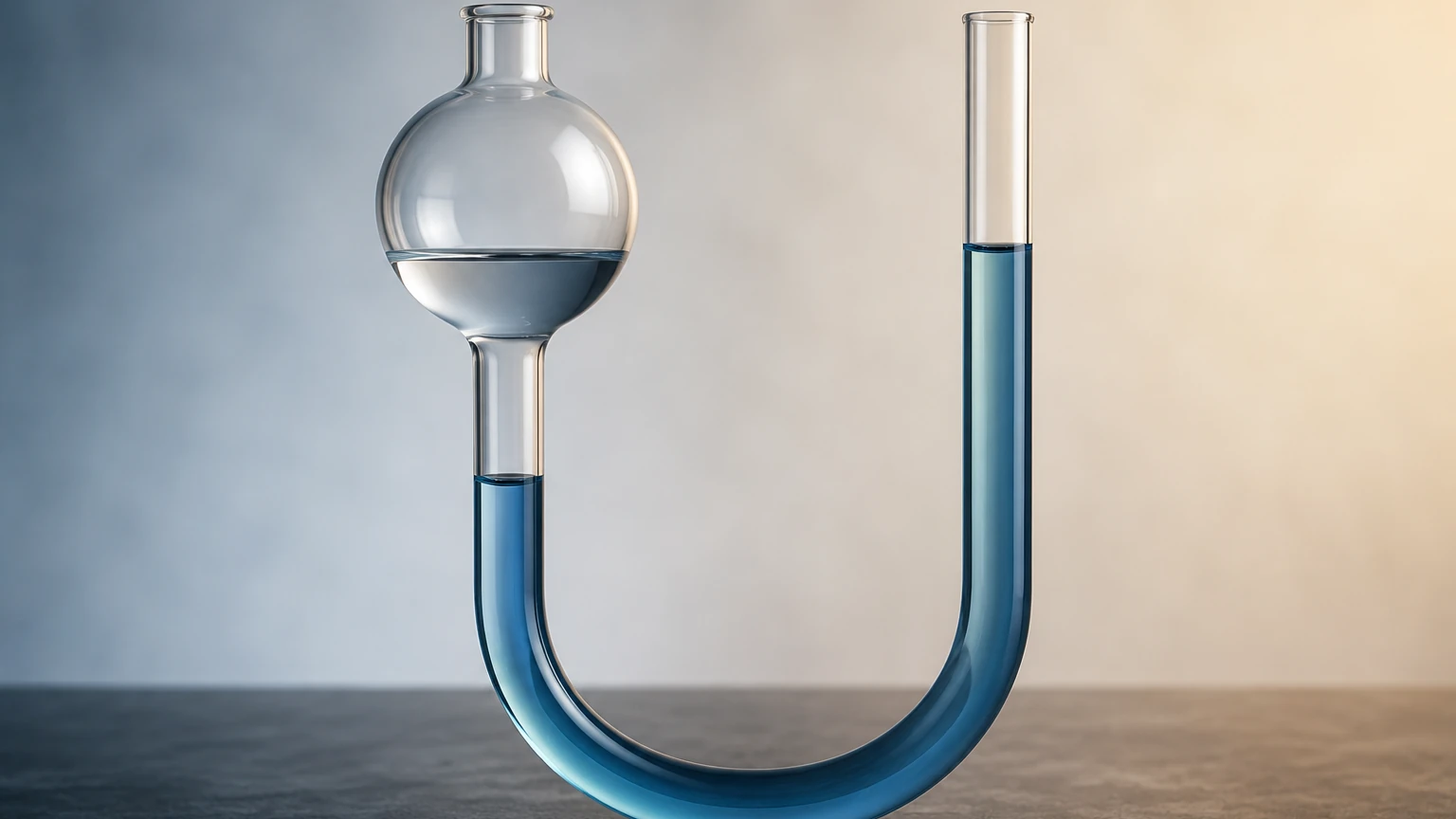

Before we calculate the absolute pressure p1 of the manometer, it is essential to define the physical principles at play. A manometer measures pressure by balancing a column of liquid against the pressure to be measured. The simplest form is the U-tube manometer, which consists of a transparent tube bent into a 'U' shape and partially filled with a manometric fluid, such as water, mercury, or specialized oils.

Gauge Pressure vs. Absolute Pressure

In industrial contexts, pressure is typically expressed in two ways:

1. Gauge Pressure ($P_g$): This is the pressure relative to the local atmospheric pressure. If a gauge reads zero, it means the internal pressure is equal to the surrounding atmosphere.

2. Absolute Pressure ($P_{abs}$): This is the total pressure measured from a theoretical perfect vacuum. It is the sum of the gauge pressure and the atmospheric pressure.

When we refer to $P_1$ in a manometer calculation, we are usually looking for the pressure at a specific inlet or point within the system. If the manometer is open to the atmosphere on one side, it measures gauge pressure. To find the absolute pressure, the local barometric reading must be added to the result.

How to Calculate the Absolute Pressure P1 of the Manometer

The fundamental equation used to determine pressure based on a liquid column is derived from the hydrostatic pressure formula:

$$P = \rho \cdot g \cdot h$$

Where:

* $P$ is the pressure exerted by the liquid column (Pascals, Pa).

* $ρ$ (Rho) is the density of the manometric fluid ($kg/m^3$).

* $g$ is the acceleration due to gravity (approximately $9.81 m/s^2$).

* $h$ is the height difference between the two liquid levels (meters, m).

Step-by-Step Calculation for a U-Tube Manometer

To calculate the absolute pressure p1 of the manometer connected to a gas tank or pipe, follow these steps:

1. Identify the Reference Pressure: Determine if the reference side of the manometer is open to the atmosphere or connected to another pressure source. If open, the reference pressure is $P_{atm}$.

2. Measure the Height Displacement ($h$): Observe the difference in the height of the fluid levels in the two limbs of the U-tube. Ensure the measurement is taken in meters for SI consistency.

3. Determine Fluid Density ($ρ$): Identify the density of the fluid used (e.g., water at $20°C$ is $\approx 998 kg/m^3$; mercury is $\approx 13,546 kg/m^3$).

4. Calculate Gauge Pressure: Apply the formula $P_{gauge} = ρgh$. If the fluid level on the reference side is higher than the $P_1$ side, the pressure $P_1$ is greater than atmospheric pressure (positive gauge pressure). If the level on the $P_1$ side is higher, the system is under a vacuum (negative gauge pressure).

5. Calculate Absolute Pressure ($P_1$): Use the following equation:

$$P_1 (absolute) = P_{atm} + (ρ \cdot g \cdot h)$$

Example Calculation:

Assume a mercury manometer is connected to a tank. The height difference ($h$) is $0.5$ meters, and the local atmospheric pressure is $101,325 Pa$.

* $ρ = 13,546 kg/m^3$

* $g = 9.81 m/s^2$

* $h = 0.5 m$

* $P_{gauge} = 13,546 \cdot 9.81 \cdot 0.5 = 66,443 Pa$

* $P_1 (absolute) = 101,325 + 66,443 = 167,768 Pa$ (or approximately $1.68 bar$).

Influencing Factors and Accuracy

Calculating pressure accurately requires more than just reading a scale. Several environmental and physical factors can introduce errors into the calculation.

Temperature Effects

The density of the manometric fluid changes with temperature. In high-precision industrial applications, engineers must apply a correction factor to the density ($ρ$) based on the ambient temperature. For instance, mercury expands as it warms, which would result in a higher $h$ reading for the same pressure if not corrected.

Local Gravity

While $9.81 m/s^2$ is the standard average, actual gravity varies by latitude and elevation. For critical B2B applications, such as custody transfer or high-precision laboratory testing, the local value of $g$ should be used to calculate the absolute pressure p1 of the manometer.

Meniscus and Capillarity

In narrow tubes, surface tension causes the fluid to curve (the meniscus). For water, the reading should be taken at the bottom of the curve; for mercury, at the top. Using tubes with a diameter larger than $10 mm$ helps minimize capillary action errors.

Selection Criteria for Pressure Measurement Instruments

Choosing the right instrument depends on the required pressure range, the nature of the process fluid, and the environmental conditions. While traditional manometers are excellent for calibration and low-pressure gas monitoring, industrial automation often requires robust electronic solutions.

| Instrument Type | Measurement Range | Best Use Case | Limitations |

| :— | :— | :— | :— |

| U-Tube Manometer | Low to Medium (0-2 bar) | Laboratory, HVAC testing | Manual reading, fragile glass |

| Well-Type Manometer | Low to Medium | Direct reading without summing limbs | Stationary installation required |

| Hydrostatic Transmitter | Wide Range | Tank level, deep wells | Requires power supply |

| Radar Level Meter | Very Wide | Corrosive or high-temp fluids | Higher initial cost |

For organizations looking to transition from manual manometry to automated process control, the Main Page of Welk offers a variety of advanced radar, ultrasonic, and hydrostatic measurement technologies designed for industrial scale.

Installation Considerations for Manometers

Proper installation is as critical as the calculation itself. An incorrectly installed manometer will yield inaccurate data, regardless of the mathematical rigor applied.

1. Vertical Alignment: Manometers must be perfectly vertical. Any tilt will cause the height $h$ to represent a slant height rather than a true vertical head, leading to an overestimation of pressure.

2. Zeroing the Scale: Before connecting the pressure source, ensure the fluid levels are equal and the scale is set to zero. Any offset at this stage will propagate through the entire calculation.

3. Fluid Compatibility: Ensure the manometric fluid does not react with or dissolve into the process gas or liquid. For example, using a water manometer on a system with water-soluble gases will lead to fluid contamination and changing density.

4. Overpressure Protection: Manometers should be equipped with check valves or traps to prevent the manometric fluid from being blown out into the process line or the atmosphere in the event of a sudden pressure surge.

Limitations of Manual Manometry

While knowing how to calculate the absolute pressure p1 of the manometer is a vital skill for engineers, manual manometry has distinct limitations in modern industrial B2B environments:

* Data Logging: Manual manometers do not provide real-time data output for SCADA or PLC systems.

* Human Error: Parallax errors and misreadings are common during manual observation.

* Safety: Using glass tubes or toxic fluids like mercury poses significant health and safety risks in high-traffic industrial zones.

In these scenarios, hydrostatic level transmitters or electronic pressure transducers are preferred. These devices automate the calculation of absolute pressure by using internal sensors to compensate for atmospheric changes and temperature fluctuations.

Frequently Asked Questions (FAQs)

1. Why do I need to add atmospheric pressure to find P1?

Because a standard manometer measures the *difference* between the system pressure and the atmosphere. If you only use the $ρgh$ calculation, you are finding the gauge pressure. Absolute pressure is necessary for thermodynamic calculations and for understanding the total stress on a vessel.

2. Can I use any liquid in a manometer?

Technically, yes, but practically, the liquid must have a known, stable density and a low vapor pressure. Water is common for low pressures, while mercury is used for higher pressures due to its high density. However, mercury is increasingly restricted due to environmental regulations.

3. How does the diameter of the tube affect the calculation?

In theory, it doesn't. Pressure is independent of the tube's cross-sectional area. However, in practice, tubes that are too narrow ($<5 mm$) introduce capillary errors that make it harder to calculate the absolute pressure p1 of the manometer accurately.

4. What happens if the gas in the manometer is heavy?

If the gas being measured has a significant density (like high-pressure CO2), the weight of the gas column itself may need to be factored into the calculation. For most low-pressure air or gas applications, the gas density is negligible compared to the liquid density.

Conclusion

Calculating the absolute pressure $P_1$ of a manometer is a fundamental task that bridges the gap between theoretical physics and practical engineering. By understanding the hydrostatic formula and accounting for environmental variables like temperature and local gravity, engineers can ensure precise measurements. As industrial requirements evolve toward greater automation and safety, many facilities are supplementing these manual methods with advanced instrumentation. For those seeking reliable, high-accuracy level and pressure measurement solutions, exploring the Main Page provides access to the latest innovations in radar, ultrasonic, and hydrostatic technology, ensuring that your process remains both accurate and compliant with modern standards.
