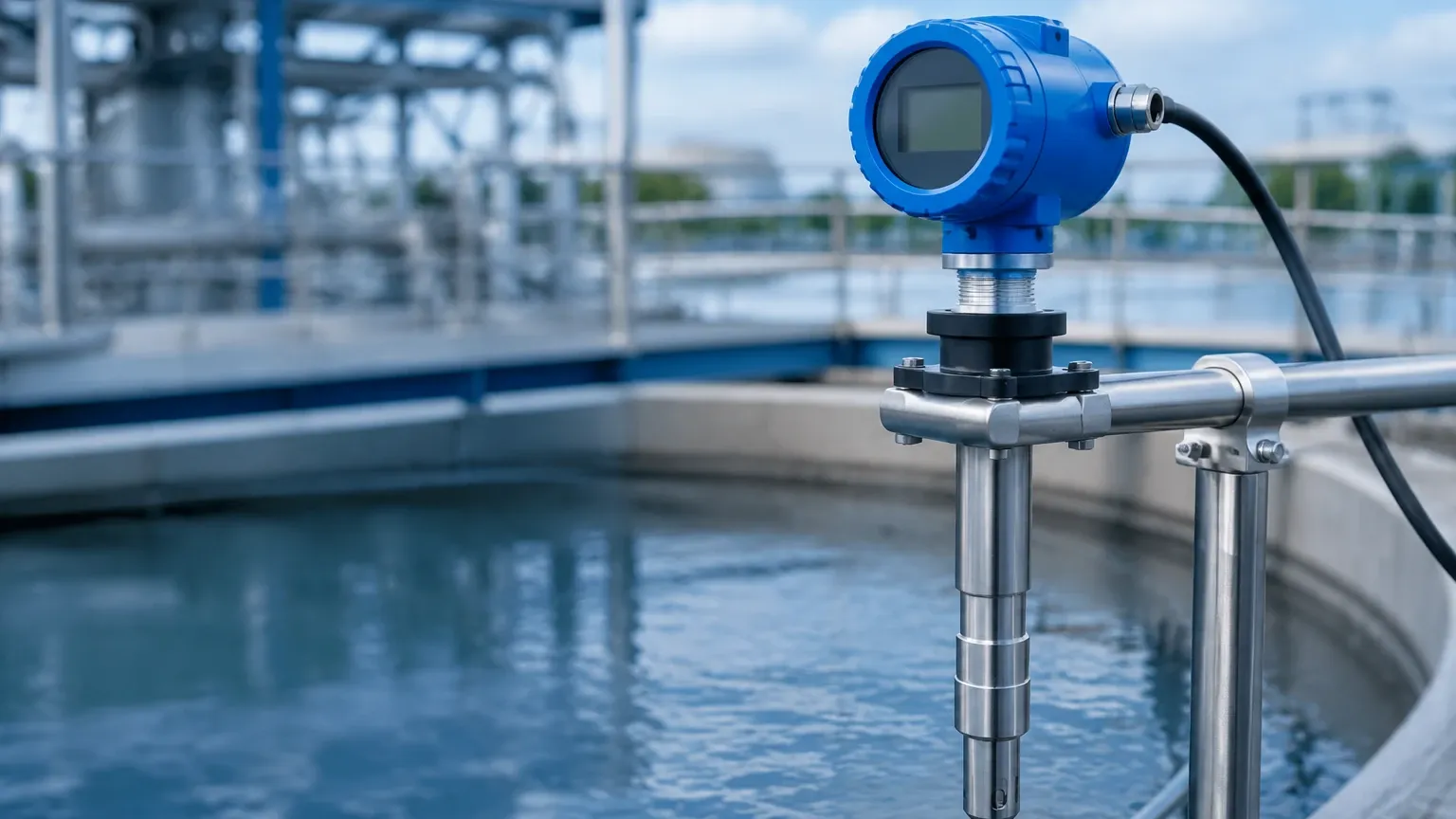

Conductivity Transmitters
Conductivity Transmitters
Conductivity transmitters are essential instruments in industrial process control, used to measure the ability of a liquid to conduct an electric current. This measurement serves as a critical proxy for the concentration of dissolved ions, such as salts, acids, or bases, within a solution. In sectors ranging from municipal water treatment to complex chemical manufacturing, conductivity data allows engineers to monitor water purity, manage chemical dosing, and detect leaks in heat exchangers.
While often categorized alongside pH or dissolved oxygen sensors, conductivity transmitters require a specific understanding of electrolytic behavior and sensor geometry to ensure long-term accuracy. This guide provides a detailed technical overview of conductivity measurement principles, sensor types, and the practical considerations necessary for selecting and installing these devices in industrial environments.
Understanding Conductivity Measurement Principles
Electrolytic conductivity is the measure of how easily an electrical current can flow through a liquid. In metallic conductors, current is carried by electrons; however, in liquids, current is carried by ions. The conductivity of a solution is directly proportional to the concentration of these ions, their charge, and their mobility.
The Basic Physics
The fundamental unit of conductivity is the Siemen (S), formerly known as the mho. In industrial applications, measurements are typically expressed in Microsiemens per centimeter (µS/cm) or Millisiemens per centimeter (mS/cm). The resistance (R) of a solution is determined by Ohm’s Law ($V = I \times R$), and conductivity ($G$) is the reciprocal of resistance ($G = 1/R$).
To standardize the measurement regardless of the sensor's physical size, the "Cell Constant" ($K$) is used. The cell constant is the ratio of the distance ($L$) between the electrodes to the cross-sectional area ($A$) of the liquid between them ($K = L/A$). The transmitter multiplies the measured conductance by the cell constant to provide the final conductivity value.
Temperature Compensation
One of the most critical aspects of conductivity measurement is temperature. As the temperature of a liquid increases, the viscosity decreases and ionic mobility increases, leading to higher conductivity even if the concentration remains the same. Most aqueous solutions exhibit a conductivity increase of approximately 1.5% to 3% per degree Celsius.
Modern conductivity transmitters utilize integrated temperature sensors (typically Pt100 or Pt1000 RTDs) to perform automatic temperature compensation. They normalize the reading to a reference temperature, usually 25°C (77°F), allowing for consistent process monitoring across varying thermal conditions.
Types of Conductivity Transmitters and Sensors
There are two primary methods for measuring conductivity: contacting and inductive (toroidal). Each has distinct advantages depending on the chemical nature and conductivity range of the process fluid.
1. Contacting Conductivity Sensors
Contacting sensors utilize electrodes that come into direct physical contact with the process liquid. They are generally categorized by the number of electrodes used:
* Two-Pole Sensors: These consist of two electrodes (usually stainless steel, graphite, or titanium) placed a fixed distance apart. They are highly accurate for low-conductivity applications, such as ultrapure water or boiler condensate.
* Four-Pole Sensors: These use four electrodes to mitigate the effects of polarization and electrode fouling. Two electrodes drive the current, while the other two measure the voltage drop. This design is more robust for medium-to-high conductivity ranges and is less sensitive to scale buildup.
2. Inductive (Toroidal) Conductivity Sensors
Inductive sensors, often called toroidal sensors, do not use electrodes. Instead, they contain two wire-wound coils (tori) encased in a non-conductive plastic housing (such as PEEK or PFA). One coil acts as a transmitter, inducing an alternating current in the liquid loop passing through the center of the sensor. The second coil acts as a receiver, measuring the strength of the induced current, which is proportional to the liquid's conductivity.
Because there are no metal electrodes to corrode or foul, inductive transmitters are the preferred choice for aggressive chemicals, high-salinity brines, and wastewater applications where solids might coat a traditional sensor.
Key Selection Criteria for Industrial Applications
Selecting the right conductivity transmitter requires a balance between the required measurement range and the physical properties of the process medium. Use the following table as a general reference for sensor technology selection:
| Application Requirement | Preferred Technology | Typical Cell Constant (K) | Reason |
| :— | :— | :— | :— |
| Ultrapure Water | Contacting (2-pole) | 0.01 to 0.1 | High sensitivity required for low ion counts. |
| Potable/Drinking Water | Contacting (2-pole) | 0.1 to 1.0 | Standard range, low risk of fouling. |
| Cooling Tower Water | Contacting (4-pole) | 1.0 | Handles moderate scaling and chemical additives. |
| Concentrated Acids/Bases | Inductive (Toroidal) | N/A | High chemical resistance; no electrode corrosion. |
| Wastewater/Slurries | Inductive (Toroidal) | N/A | Resistant to coating and physical abrasion. |
| CIP (Clean-in-Place) | Inductive (Toroidal) | N/A | Withstands rapid temperature swings and harsh detergents. |
Material Compatibility
For contacting sensors, the electrode material must be chemically compatible with the process. Stainless steel 316L is standard, but titanium or Monel may be required for seawater or acidic environments. For inductive sensors, the outer casing material (e.g., Polypropylene, PVDF, or PEEK) must be chosen based on the maximum process temperature and chemical concentration.
Pressure and Temperature Ratings
Standard industrial sensors are typically rated for pressures up to 10 bar (145 psi) and temperatures up to 100°C (212°F). However, high-pressure steam applications or aggressive chemical reactors may require specialized sensors rated for 20 bar (290 psi) or higher. Always verify that the transmitter electronics can be mounted remotely if the process temperature exceeds the local display's operating limits.
Installation Guidelines and Best Practices
Correct installation is vital to prevent measurement errors caused by air bubbles, sediment, or electrical interference.
1. Full Immersion: The sensor must be completely submerged in the liquid at all times. In partially filled pipes, conductivity readings will be erroneously low. For this reason, sensors should be installed in vertical pipe sections with upward flow or in the bottom of a horizontal pipe.
2. Avoid Air Bubbles: Air is non-conductive. If bubbles accumulate on the electrode surface or inside the toroidal bore, the measured conductivity will drop. Avoid installing sensors immediately downstream of pumps or valves where cavitation may occur.
3. Pipe Clearance: Inductive sensors require a minimum clearance from pipe walls (typically 20 mm to 50 mm / 0.8" to 2.0") to prevent the pipe material from interfering with the magnetic field. If installing in small-diameter pipes, use a dedicated flow cell.
4. Cable Management: Conductivity signals, especially in low-range applications, are high-impedance and susceptible to electromagnetic interference (EMI). Use shielded cables and keep them away from high-voltage power lines or variable frequency drives (VFDs).
5. Grounding: Ensure the process piping is properly grounded. Stray currents in the liquid can introduce noise into the transmitter, leading to unstable readings.
Maintenance, Calibration, and Troubleshooting
While conductivity transmitters are generally lower maintenance than pH probes, they still require periodic verification to ensure accuracy.
Calibration Procedures
Calibration is typically performed using standard solutions with a known conductivity (e.g., 1413 µS/cm).
* Dry Calibration: For inductive sensors, a "zero" calibration is performed in air to ensure the transmitter reads zero when no liquid is present.
* Wet Calibration: The sensor is immersed in a calibration standard. It is crucial to allow the temperature to stabilize before adjusting the transmitter, as the temperature compensation algorithm relies on an accurate RTD reading.
Cleaning Protocols
Fouling is the most common cause of drift.
* For contacting sensors, oils or scales can be removed using a mild detergent or a 5% hydrochloric acid solution, followed by a thorough rinse with deionized water. Avoid abrasive materials that could change the surface area of the electrodes.
* For inductive sensors, the center bore must remain clear. Since there are no electrodes, cleaning is simpler and can often be done with a soft brush.
Common Troubleshooting Steps
* Unstable Readings: Often caused by air bubbles or poor grounding. Check the flow orientation and the shielding of the signal cable.
* Readings Always Low: Likely due to electrode coating or the sensor not being fully submerged.
* Readings Always High: May indicate a short circuit in the cable or significant polarization in a 2-pole sensor used in a high-conductivity liquid.
Integration with Level Measurement and Process Control
In many industrial setups, conductivity transmitters work in tandem with level measurement systems to provide a complete picture of tank or vessel status. For instance, in chemical storage, a radar level meter monitors the volume, while a conductivity transmitter ensures the concentration of the stored chemical remains within specification.
Furthermore, the principle of conductivity is often used for point-level detection. Conductive level switches utilize the liquid's conductivity to bridge the gap between two electrodes, signaling when a tank has reached a high or low limit. For comprehensive process automation, engineers often Review product options and application support on the Main Page to find compatible level and analytical instruments that can be integrated into a single control loop via 4-20mA, HART, or Modbus protocols.
Frequently Asked Questions (FAQs)
Q: How often should I calibrate my conductivity transmitter?
A: This depends on the application. For clean water, once every six months is usually sufficient. In fouling environments like wastewater, monthly verification is recommended.
Q: Can I use a contacting sensor for seawater?
A: While possible, a 4-pole contacting sensor or an inductive sensor is preferred. Standard 2-pole sensors will suffer from polarization at high salinity, leading to inaccurate results.
Q: What is the difference between TDS and Conductivity?
A: Total Dissolved Solids (TDS) is a measure of the mass of dissolved material. Conductivity transmitters often have a "TDS factor" (typically 0.5 to 0.7) that multiplies the conductivity reading to estimate TDS in mg/L or ppm.
Q: Does the flow rate affect the conductivity reading?
A: Generally, no. Conductivity is an intrinsic property of the fluid. However, flow is necessary to ensure the sensor sees a representative sample of the process and to prevent the accumulation of bubbles or debris.
Limitations of Conductivity Measurement
While highly effective, conductivity transmitters have specific limitations:
* Non-Selective Measurement: Conductivity measures the total ionic content. It cannot distinguish between different types of ions (e.g., it cannot tell the difference between sodium chloride and potassium chloride in the same solution).
* Non-Ionic Contaminants: Substances like sugar, oils, or alcohols do not ionize in water and therefore cannot be detected by conductivity transmitters.
* Extreme Concentration: At very high concentrations, the relationship between conductivity and concentration can become non-linear or even inverse (a phenomenon known as the "peak" in certain acids), requiring advanced transmitter algorithms for accurate scaling.
By understanding these technical boundaries and selecting the appropriate sensor geometry, industrial operators can maintain precise control over their liquid processes, ensuring both product quality and equipment longevity.
