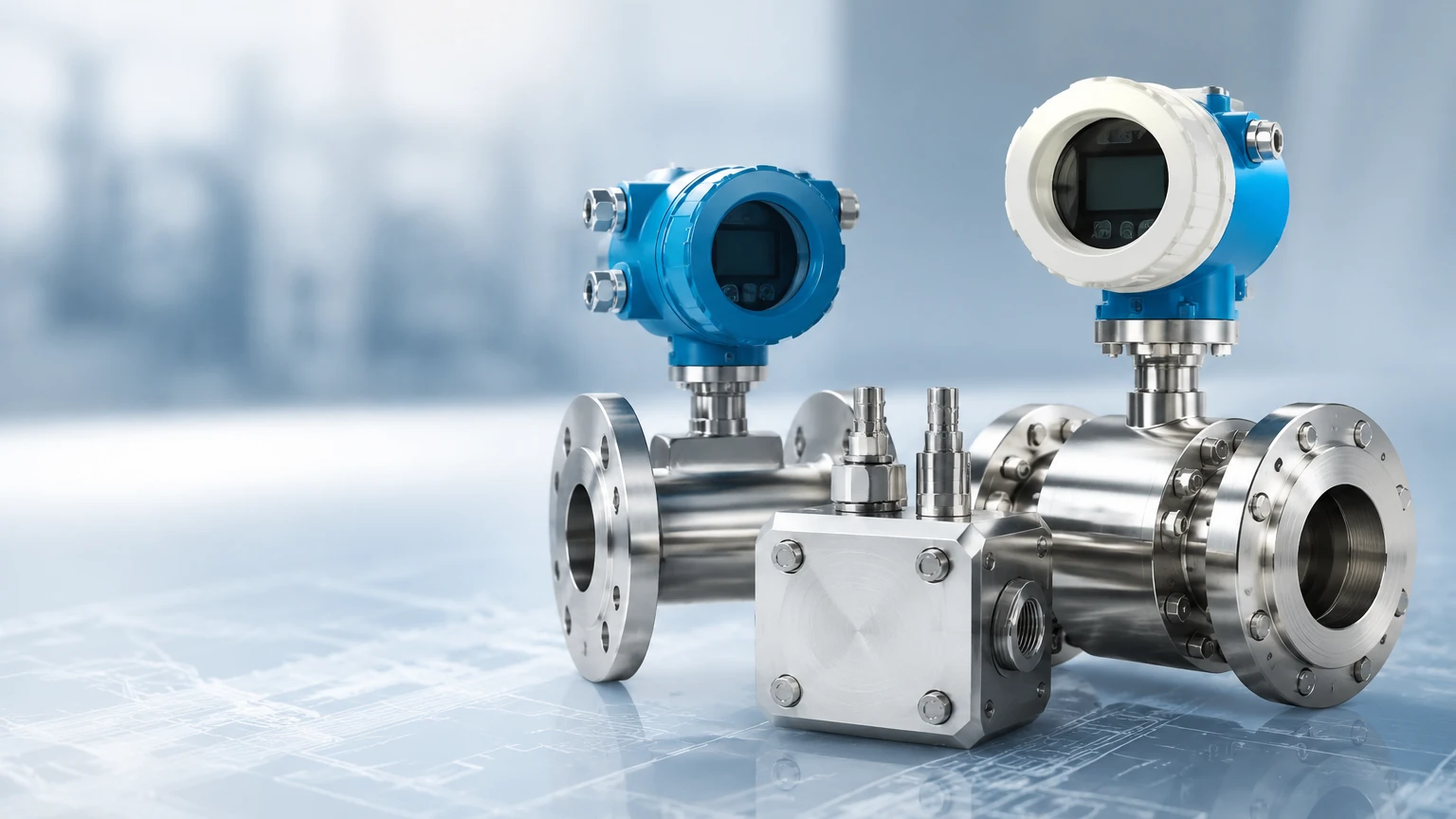

Gas Flow Meters
Gas Flow Meters
In the landscape of industrial automation and process control, the measurement of gas flow is a critical requirement for safety, efficiency, and billing accuracy. Whether managing compressed air in a manufacturing facility, monitoring natural gas in a boiler room, or controlling specialized gases in chemical processing, selecting the correct instrumentation is paramount. Gas flow meters are devices designed to measure the volume or mass of a gas moving through a closed conduit. Unlike liquid measurement, gas measurement is significantly more complex due to the compressibility of the fluid, where changes in temperature and pressure directly alter the density and volume of the medium.
For engineers and facility managers, understanding the underlying physics of various measurement technologies is the first step toward optimizing a system. This guide provides a technical overview of the primary gas flow measurement principles, selection criteria, and installation best practices required for industrial applications.
Measurement Principles of Gas Flow Meters
Gas flow measurement technologies are generally categorized into two types: volumetric flow measurement and mass flow measurement. Because gas volume fluctuates with environmental conditions, mass flow is often preferred for scientific and high-precision industrial applications.
1. Thermal Mass Flow Measurement
Thermal mass flow meters operate on the principle of thermal dispersion. The sensor typically consists of two RTD (Resistance Temperature Detector) probes: one serves as a reference for the gas temperature, and the other is heated to a specific temperature above the reference. As gas flows past the heated sensor, it carries away heat. The amount of energy required to maintain the temperature differential is directly proportional to the mass flow rate of the gas.
* Advantages: Direct mass flow measurement without additional pressure or temperature compensation; high sensitivity at low flow rates.
* Limitations: Sensitive to changes in gas composition; requires the gas to be clean and dry to avoid sensor coating.
2. Vortex Shedding Principles
Vortex flow meters utilize the Karman Vortex Street effect. When gas encounters an obstruction (a bluff body) in the flow stream, it creates alternating vortices on either side. The frequency of these vortices is directly proportional to the velocity of the gas. By measuring this frequency with a piezoelectric sensor, the meter calculates the volumetric flow rate.
* Advantages: No moving parts, low maintenance, and suitable for high-temperature and high-pressure applications.
* Limitations: Requires a minimum Reynolds number to function; sensitive to pipe vibration.
3. Turbine Flow Measurement
Turbine meters use a multi-bladed rotor suspended in the gas stream. The kinetic energy of the moving gas causes the rotor to spin at a speed proportional to the gas velocity. A magnetic pickup or proximity sensor detects the rotation of the blades and converts it into a volumetric flow signal.
* Advantages: High accuracy and excellent repeatability; wide turndown ratios.
* Limitations: Moving parts are subject to wear; requires clean gas to prevent bearing damage; introduces a pressure drop.
4. Ultrasonic Transit-Time Measurement
Ultrasonic gas flow meters use pairs of transducers to send and receive sound pulses across the pipe. The time it takes for a pulse to travel "upstream" against the flow is compared to the time it takes to travel "downstream" with the flow. The difference in transit time is proportional to the gas velocity.
* Advantages: Non-intrusive (no pressure drop), no moving parts, and handles high flow velocities.
* Limitations: Higher initial cost; performance can be affected by acoustic noise from valves or regulators.
5. Differential Pressure (DP) Measurement
DP meters, such as orifice plates, venturi tubes, or pitot tubes, create a constriction in the flow path. According to Bernoulli’s principle, the pressure drops as the velocity increases through the constriction. The square root of the pressure difference between the upstream and downstream points is proportional to the flow rate.
* Advantages: Well-understood technology with global standards (ISO 5167); low cost for large pipe sizes.
* Limitations: High permanent pressure loss; limited turndown ratio (typically 3:1 or 4:1).
Technical Selection Criteria
Choosing the right gas flow meter requires a detailed analysis of the process conditions. The following table compares the most common technologies used in industrial settings.
| Technology | Typical Accuracy | Turndown Ratio | Pressure Drop | Primary Application |
| :— | :— | :— | :— | :— |
| Thermal Mass | ±1% of Reading | 100:1 | Negligible | Compressed air, aeration, gas leak detection |
| Vortex | ±1% of Rate | 10:1 to 20:1 | Medium | Steam, natural gas, high-velocity air |
| Turbine | ±0.5% to ±1% | 15:1 | High | Custody transfer, fuel gas monitoring |
| Ultrasonic | ±0.5% to ±1.5% | 50:1 | None | Large diameter pipes, flare gas, natural gas |
| Differential Pressure | ±2% of Span | 4:1 | High | General process control, legacy systems |
Key Evaluation Factors
1. Gas Composition: Is the gas a pure substance or a mixture? Thermal meters require specific calibration for the gas type, whereas vortex meters are largely independent of fluid density.
2. Flow Range (Turndown): The ratio between the maximum and minimum flow the meter can measure accurately. If your process has high seasonal variance, a high turndown ratio (like Thermal or Ultrasonic) is necessary.
3. Process Conditions: Maximum and minimum operating pressures (bar or PSI) and temperatures (°C or °F) must fall within the meter's design limits.
4. Accuracy vs. Repeatability: In some processes, knowing the exact mass (accuracy) is vital for billing. In others, simply ensuring the flow is the same every day (repeatability) is sufficient for process stability.
Installation Considerations and Best Practices
Even the most advanced gas flow meters will fail to provide accurate data if installed incorrectly. Engineers must adhere to strict piping requirements to ensure a fully developed flow profile.
Straight Pipe Runs
Most flow meters require a specific length of straight pipe upstream and downstream of the sensor to eliminate turbulence caused by elbows, valves, or reducers. A common rule of thumb is "10D Upstream and 5D Downstream" (where D is the pipe diameter), but this varies by technology. For example, turbine meters may require up to 20D upstream if a flow straightener is not used.
Orientation and Positioning
* Horizontal vs. Vertical: While many meters can be installed in any orientation, thermal mass meters are often best installed horizontally to prevent moisture from pooling on the sensors. If installed vertically, the flow should generally be upward to ensure the pipe remains full and to assist in moisture drainage.
* Moisture and Condensation: Gas streams often contain water vapor. If the temperature drops, condensation can form. Meters should be installed at high points in the piping system, and drip legs or separators should be installed upstream to protect the sensors.
Electrical and Communication
Modern industrial environments rely on integrated data. Most gas flow meters provide a 4-20mA analog output, but many now include digital protocols like Modbus RTU, HART, or Profibus. Ensure the meter’s power requirements (typically 24V DC or 110/220V AC) and signal outputs are compatible with the local PLC or SCADA system.
Common Risks and Limitations
* Pressure Drop: Differential pressure and turbine meters introduce a permanent pressure loss in the system. In low-pressure gas systems, this can lead to insufficient pressure at the point of use.
* Calibration Drift: Over time, sensors can become fouled by oil, dust, or chemicals in the gas stream. Regular maintenance and recalibration are necessary to maintain accuracy.
* Gas Density Changes: Volumetric meters (Vortex, Turbine, DP) require separate pressure and temperature sensors to calculate "Standard" or "Normal" flow units (e.g., Nm³/h or SCFM). Without these compensations, the readings will be inaccurate as the gas expands or contracts.
For comprehensive industrial instrumentation, including level and flow solutions that integrate seamlessly into automated systems, engineers should Review product options and application support on the Welk Main Page to ensure all process variables are monitored with professional-grade hardware.
Frequently Asked Questions (FAQ)
Q: Can I use a liquid flow meter to measure gas?
A: Generally, no. Gas is compressible and has much lower density than liquid. Most liquid meters (like electromagnetic meters) rely on properties that gases do not possess (such as electrical conductivity) or are calibrated for much higher force/density levels.
Q: What is the difference between Actual Cubic Meters (ACMH) and Standard Cubic Meters (SCMH)?
A: Actual units represent the volume at the current operating pressure and temperature. Standard (or Normal) units represent what the volume would be at a reference pressure (usually 1.013 bar) and temperature (usually 0°C or 20°C). Since gas is compressible, standard units are used for mass-equivalent comparisons.
Q: How do I handle "dirty" gas with particulates?
A: Avoid turbine or orifice meters, as particles will erode the blades or the orifice edge. Ultrasonic or Vortex meters are better suited for dirty gas because they have no moving parts and are more resistant to abrasion.
Q: Is a flow straightener always necessary?
A: No. If you have sufficient straight pipe runs (e.g., 30D+), a straightener is usually not required. However, in tight spaces where you cannot meet the 10D/5D requirement, a flow straightener can help normalize the flow profile and improve accuracy.
Conclusion
Effective gas flow measurement is a cornerstone of modern industrial efficiency. By understanding the physical principles of thermal, vortex, turbine, and ultrasonic technologies, engineering teams can select the most cost-effective and reliable solution for their specific application. Proper installation, particularly regarding straight pipe runs and moisture management, remains the most critical factor in long-term performance. For those managing complex industrial sites, integrating reliable flow data with other process variables like level and pressure is essential for achieving optimal automation and safety standards.
