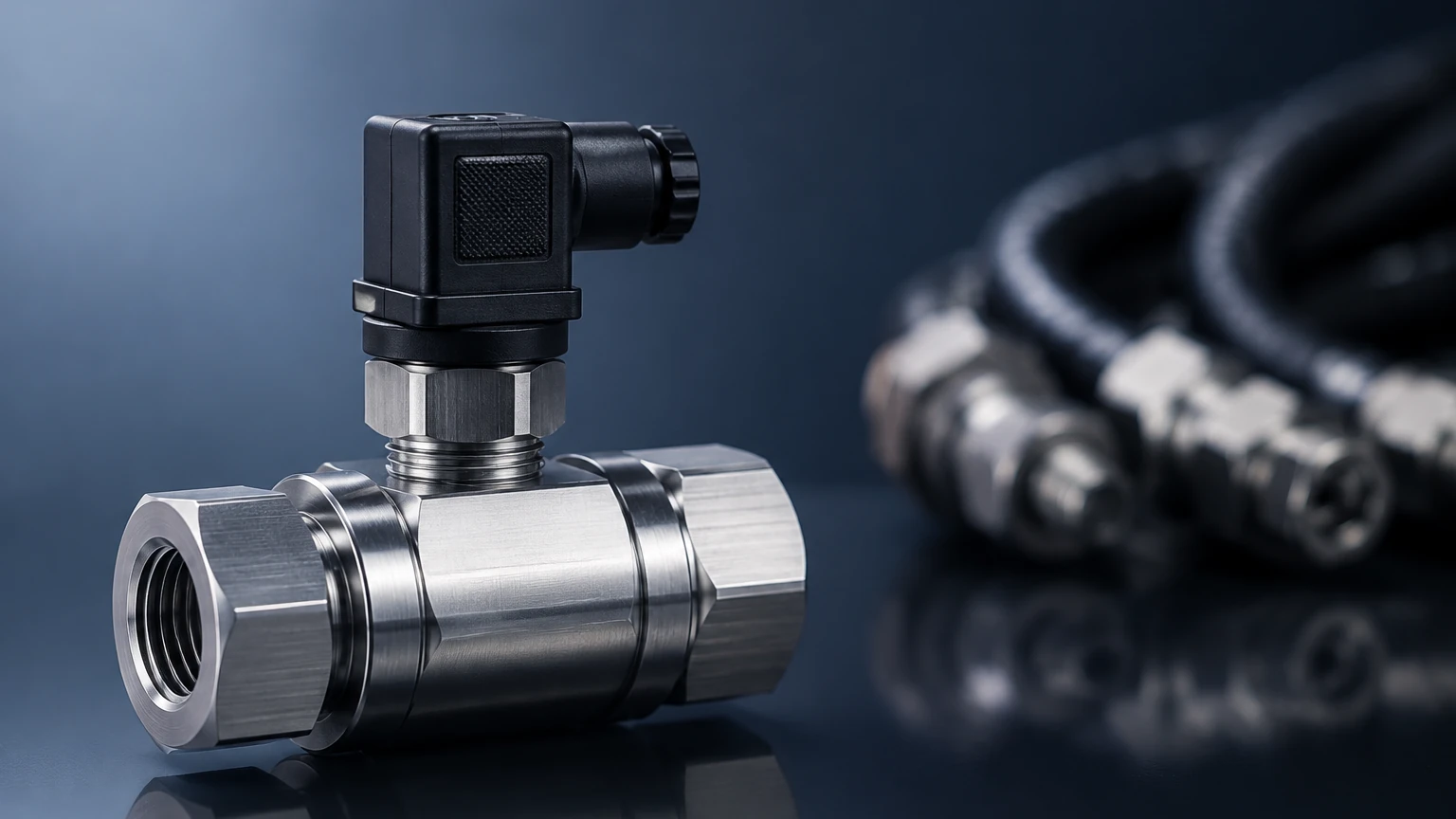

Hydraulic Flow Sensor
Hydraulic Flow Sensor
In industrial fluid power systems, the ability to measure the rate of fluid movement is critical for maintaining efficiency, ensuring safety, and diagnosing potential component failures. A hydraulic flow sensor is a precision instrument designed to monitor the volume or mass of hydraulic fluid passing through a specific point in a system. Unlike standard water flow meters, these sensors must withstand high operating pressures, varying fluid viscosities, and the demanding environments typical of industrial machinery and mobile hydraulics.
Accurate flow measurement allows operators to verify the performance of pumps, detect internal leakage in actuators, and ensure that cooling and lubrication circuits are functioning within specified parameters. This guide provides a technical overview of hydraulic flow sensor technologies, selection criteria, and installation best practices for engineering professionals.
Measurement Principles of Hydraulic Flow Sensors
Understanding the underlying physics of different sensor types is the first step in selecting the correct instrument for a specific application. Hydraulic systems present unique challenges, such as high-frequency pressure pulsations and rapid changes in fluid temperature, which affect the choice of measurement principle.
Turbine Flow Sensors
Turbine sensors utilize a multi-bladed rotor mounted on bearings within the fluid stream. As the hydraulic fluid moves through the housing, it imparts kinetic energy to the rotor, causing it to spin at a velocity proportional to the flow rate. A magnetic pickup or Hall-effect sensor located outside the fluid path detects the passage of the rotor blades and generates a frequency signal.
* Advantages: High accuracy (typically ±0.5% to ±1% of reading), excellent repeatability, and fast response times.
* Limitations: Sensitive to changes in fluid viscosity and requires clean, filtered fluid to prevent bearing wear.
Positive Displacement (Gear) Sensors
Positive displacement (PD) sensors, often utilizing internal or external gears, measure flow by trapping a fixed volume of fluid between the gear teeth and the housing. As the fluid forces the gears to rotate, a specific volume is displaced per revolution. Because the volume is mechanically defined, these sensors are highly effective for measuring high-viscosity fluids.
* Advantages: Extremely accurate even at low flow rates, largely independent of viscosity changes, and capable of handling high pressures (up to 420 bar / 6000 psi).
* Limitations: Higher pressure drop compared to turbine meters and generally more expensive due to precision-machined internal components.
Ultrasonic Flow Sensors
Ultrasonic sensors use sound waves to determine fluid velocity. They are available in two primary formats: transit-time and Doppler. Transit-time sensors measure the difference in time it takes for an ultrasonic pulse to travel upstream versus downstream. In hydraulic applications, these are often "clamp-on" devices that do not require cutting into the pipe.
* Advantages: No moving parts, zero pressure drop, and non-intrusive installation.
* Limitations: Accuracy can be affected by entrained air or high levels of contamination in the oil.
Differential Pressure (Orifice) Sensors
These sensors work on Bernoulli’s principle. By placing a restriction (orifice plate) in the flow path, a pressure drop is created. The square root of the pressure difference between the upstream and downstream sides of the restriction is proportional to the flow rate.
* Advantages: Robust, simple design with no moving parts; suitable for high-temperature applications.
* Limitations: Limited turndown ratio (rangeability) and permanent pressure loss across the orifice.
Key Evaluation Criteria for Selection
Selecting a hydraulic flow sensor requires a thorough analysis of the system’s operating environment. Engineers must confirm several technical parameters before finalizing a specification.
Fluid Compatibility and Viscosity
Hydraulic systems use various fluids, from standard mineral oils to fire-resistant water-glycols or synthetic esters. The sensor must be chemically compatible with the fluid and the seals (e.g., Viton, EPDM). Furthermore, because the viscosity of hydraulic oil changes significantly with temperature, the sensor must either be viscosity-compensated or calibrated for the specific operating temperature range of the system.
Pressure and Temperature Ratings
Hydraulic circuits often operate at pressures exceeding 250 bar (3625 psi) and temperatures above 80°C (176°F). It is vital to ensure that the sensor housing and internal components are rated for the maximum possible system pressure, including potential pressure spikes during valve actuation. For high-temperature environments, remote-mounted electronics may be necessary to prevent thermal damage to the sensor's circuitry.
Flow Range and Accuracy
The "turndown ratio" defines the range between the maximum and minimum flow rates the sensor can accurately measure. For example, a sensor with a 10:1 turndown ratio and a maximum flow of 100 LPM can accurately measure down to 10 LPM. If the application requires monitoring low-flow leakage, a gear-type sensor with a wider turndown ratio is usually preferred.
Signal Output and Integration
Modern industrial automation requires seamless integration with PLCs and SCADA systems. Common output signals include:
* Analog: 4-20 mA or 0-10 V DC.
* Digital/Pulse: Frequency outputs proportional to flow.
* Communication Protocols: IO-Link, Modbus, or CANbus (common in mobile hydraulics).
For comprehensive fluid management solutions, including advanced level measurement and monitoring, engineers can consult the Main Page of professional instrumentation providers to integrate flow and level data into a single control architecture.
Practical Selection Table
| Sensor Type | Best For | Typical Accuracy | Max Pressure | Viscosity Sensitivity |
| :— | :— | :— | :— | :— |
| Turbine | High-speed, low-viscosity oil | ±0.5% | Up to 400 bar | High |
| Gear (PD) | High viscosity, precision dosing | ±0.5% | Up to 420 bar | Low |
| Ultrasonic | Retrofitting, no-leak requirements | ±1.0% – 2.0% | N/A (Clamp-on) | Medium |
| Orifice | Simple monitoring, high temp | ±2.0% | System limited | High |
Installation Considerations and Best Practices
Proper installation is as important as sensor selection. Even the most accurate hydraulic flow sensor will provide erroneous data if installed incorrectly.
1. Straight Pipe Runs: Most flow sensors (especially turbine and differential pressure types) require a specific length of straight pipe upstream and downstream to eliminate turbulence. A common rule of thumb is 10 diameters (10D) of straight pipe upstream and 5 diameters (5D) downstream.
2. Filtration: To protect the internal mechanisms of gear and turbine sensors, a high-quality filter (typically 10 to 25 microns) should be installed upstream. Contaminants like metal shavings or silt can seize gears or erode turbine blades.
3. Orientation: While some sensors are orientation-independent, others must be mounted horizontally or vertically to ensure the measuring chamber remains full of fluid and to prevent air pockets from forming.
4. Avoid Cavitation: Ensure the sensor is installed on the high-pressure side of the system or that there is sufficient back-pressure to prevent cavitation, which can damage the sensor and cause significant measurement errors.
Common Risks and Limitations
Engineers must be aware of the environmental and operational factors that can compromise sensor performance:
* Aeration: Entrained air in the hydraulic fluid is a common cause of inaccuracy. Air bubbles change the fluid's density and compressibility, leading to over-reading in volumetric sensors.
* Pressure Spikes: Rapid valve closures can create "water hammer" effects. Without adequate damping or pressure snubbers, these spikes can physically deform turbine blades or crack sensor housings.
* Fluid Aging: As hydraulic oil degrades, its chemical properties and viscosity change. Regular calibration or the use of sensors with integrated temperature and viscosity compensation is recommended for long-term reliability.
Frequently Asked Questions (FAQs)
Q: Can a hydraulic flow sensor measure flow in both directions?
A: Some sensors, particularly gear-type and certain ultrasonic models, are designed for bi-directional flow. However, turbine sensors are typically uni-directional. Always check the manufacturer's specification if the application involves reversing flow.
Q: How often should a hydraulic flow sensor be calibrated?
A: In standard industrial applications, annual calibration is recommended. In critical systems or those operating with highly contaminated fluids, semi-annual checks may be necessary to ensure the k-factor (pulses per liter) has not drifted.
Q: Is it possible to use a water flow meter for hydraulic oil?
A: Generally, no. Water meters are typically not rated for the high pressures found in hydraulic systems, and their materials (such as brass or certain plastics) may not be compatible with hydraulic additives. Additionally, the calibration would be incorrect due to the difference in fluid density and viscosity.
Q: What is the impact of high-frequency vibration on the sensor?
A: Excessive vibration can cause mechanical wear in turbine bearings and introduce electrical noise into the output signal. In high-vibration environments, look for sensors with potted electronics and reinforced mounting structures.
Conclusion
The implementation of a robust hydraulic flow sensor is a fundamental requirement for modern predictive maintenance and process control. By understanding the specific strengths and limitations of turbine, gear, and ultrasonic technologies, engineers can select a solution that balances accuracy, durability, and cost. Whether monitoring a simple cooling circuit or a complex multi-axis CNC machine, the right flow sensor provides the data necessary to optimize system performance and prevent costly downtime. For those looking to expand their system monitoring capabilities to include tank levels and chemical storage, reviewing the product options and application support on the Main Page of specialized instrument manufacturers is a recommended next step.
