Magnetic Level Indicators
In industrial process control, the ability to monitor liquid levels safely and accurately is a fundamental requirement. Magnetic level indicators (MLIs), also known as magnetic sight glasses or bypass level indicators, have become a standard solution for high-pressure, high-temperature, and corrosive applications where traditional glass gauges pose a safety risk. These instruments provide a clear, high-visibility local display while isolating the process fluid within a pressure-tight chamber.
As a professional manufacturer of industrial level measurement instruments, Welk provides advanced solutions designed to meet the rigorous demands of chemical processing, oil and gas, and water treatment sectors. For engineers and procurement specialists seeking comprehensive technical data on these systems, the Main Page offers detailed product specifications and application support.
Principles of Operation
The operation of magnetic level indicators is based on two primary physical principles: buoyancy (Archimedes' Principle) and magnetism. Unlike a standard sight glass, where the process fluid is visible through a transparent tube, an MLI uses a bypass chamber and a magnetic float to communicate the level to an external indicator.
The Bypass Chamber
The instrument consists of a vertical pipe, known as the chamber, which is connected to the side of the process vessel (tank) via two or more nozzles. Because of the principle of communicating vessels, the liquid level inside the chamber always matches the liquid level inside the main tank.
The Magnetic Float
Inside the chamber is a specially engineered float. This float is designed to have a density lower than the process fluid, allowing it to remain partially submerged at the surface. Crucially, the float contains a high-intensity permanent magnet assembly. As the liquid level rises or falls, the float moves accordingly within the chamber.

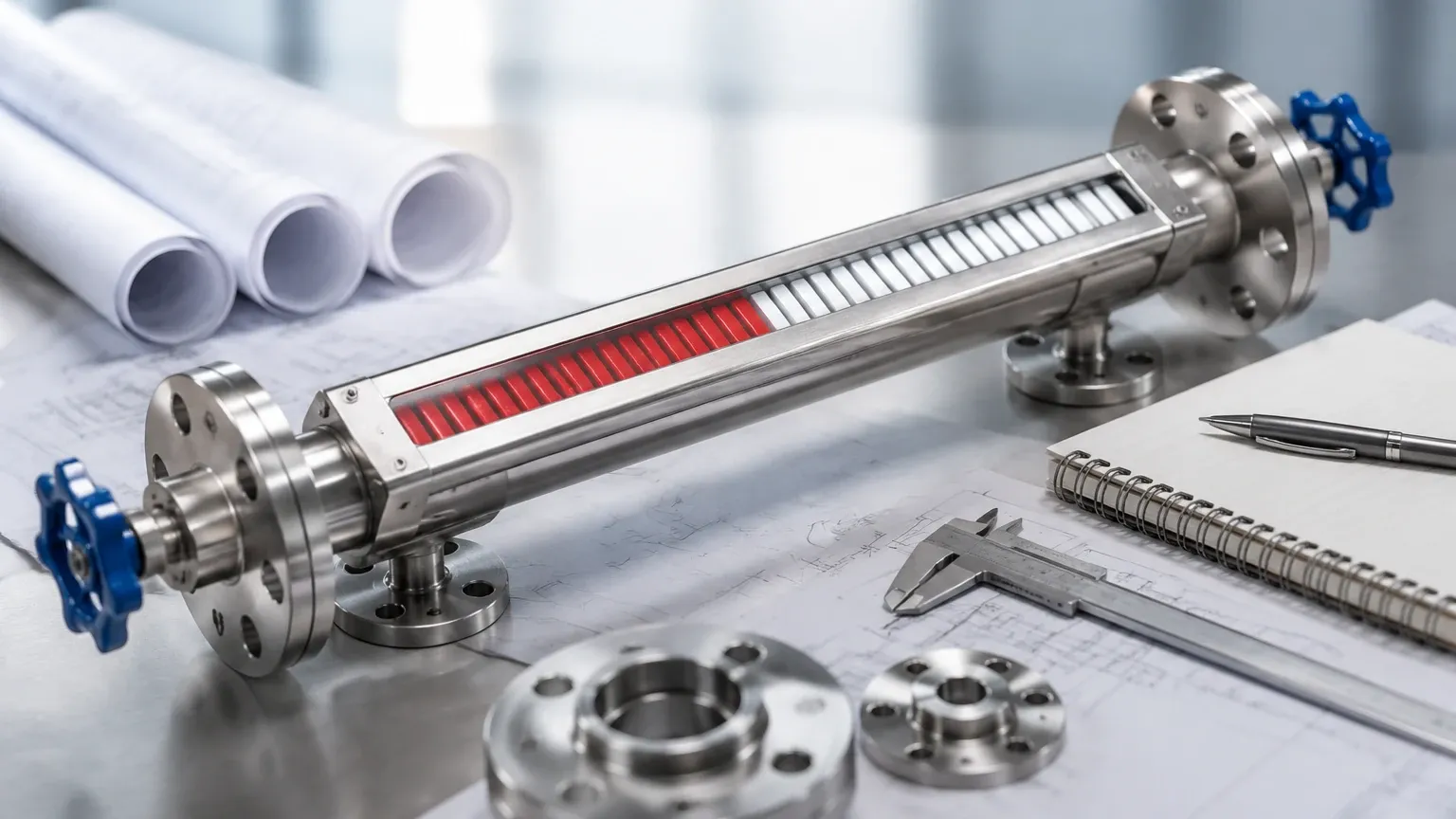

The External Indicator
Mounted to the outside of the chamber is a sealed indicator scale. This scale typically contains a series of bi-color magnetic flags or rollers (often red and white or yellow and black). As the float moves past these flags, the magnetic field from the float causes the flags to rotate 180 degrees. This change in color provides a clear, continuous visual representation of the liquid level that can be seen from a significant distance, even in low-light conditions.
Key Components and Construction Materials
The reliability of magnetic level indicators depends heavily on the materials used in their construction. Since the chamber is a pressure-retaining component, it must be manufactured to withstand the specific operating conditions of the facility.
1. Chamber Materials: Most industrial MLIs are constructed from stainless steel (SS304 or SS316L). For highly corrosive environments involving acids or seawater, specialty materials such as Hastelloy, Monel, Titanium, or PVC/CPVC/PVDF plastics are utilized.
2. The Float: The float is the most critical moving part. It must be pressurized to prevent collapse at high process pressures. Welk engineers floats based on the specific gravity (SG) of the fluid, ensuring the magnetic ring aligns perfectly with the liquid surface.
3. Process Connections: These are typically flanged (ANSI, DIN, or JIS standards) or NPT/BSP threaded. The size of the connections usually ranges from 15 mm (1/2") to 50 mm (2").
4. Indicator Housing: The housing for the flags is usually made of aluminum or stainless steel with a transparent glass or polycarbonate cover to protect the flags from environmental debris and UV radiation.
Technical Selection Criteria
Selecting the correct magnetic level indicator requires a detailed understanding of the process parameters. An incorrectly specified MLI may fail to float, provide inaccurate readings, or suffer from mechanical failure.
Fluid Density (Specific Gravity)
The float must be lighter than the liquid it displaces. If the fluid density is too low (e.g., liquefied gases with an SG of 0.45), a larger, specialized float may be required. Conversely, if the SG changes significantly due to temperature fluctuations, the accuracy of the indicator may be affected.
Pressure and Temperature
MLIs are capable of handling extreme conditions, with some models rated for pressures up to 200 bar (approx. 2900 psi) and temperatures ranging from -196°C (cryogenic) to over 450°C. High-temperature applications require specific magnetic materials (like Alnico) that do not lose their magnetism at elevated heat.
Viscosity and Solids Content
While MLIs are robust, extremely viscous fluids or those containing high concentrations of magnetic particles (like iron filings) can impede float movement. In such cases, oversized chambers or magnetic filters may be necessary.
Selection Table for Common Configurations
| Feature | Standard Industrial | High Pressure/Temp | Chemical/Corrosive |
| :— | :— | :— | :— |
| Chamber Material | SS304 / SS316 | Heavy-wall SS316L | PVC / PVDF / PTFE Lined |
| Max Pressure | 40 bar | Up to 200 bar | 6 – 10 bar |
| Max Temperature | 150°C | 450°C | 60°C – 100°C |
| Min Specific Gravity| 0.70 | 0.45 | 0.80 |
| Typical Application | Water, Light Oils | Steam Boilers, Crude Oil | Acids, Bleach, Brine |
Installation Guidelines and Best Practices
Proper installation is vital for the longevity and safety of magnetic level indicators. Engineers should follow these standard procedures:
* Vertical Alignment: The chamber must be installed perfectly vertical. Even a slight tilt can cause the float to frictionally bind against the chamber wall, leading to "stuck" readings.
* Isolation Valves: It is highly recommended to install isolation valves between the tank and the MLI. This allows for maintenance and cleaning without draining the entire process vessel.
* Vent and Drain: Every MLI should be equipped with a vent plug at the top and a drain valve at the bottom. This facilitates the removal of trapped air during start-up and the flushing of sediment during maintenance.
* Magnetic Interference: Ensure that no large ferrous structures or strong electromagnetic fields are located within 100 mm to 200 mm of the indicator, as these can interfere with the magnetic coupling between the float and the flags.
* Initial Filling: When commissioning the unit, open the valves slowly. A sudden surge of liquid can slam the float against the top of the chamber, potentially damaging the internal magnets or the float structure.
Advantages and Limitations
Advantages
* Safety: There is no glass in contact with the process fluid, eliminating the risk of catastrophic leaks due to glass breakage.
* Visibility: The bi-color flags are much easier to read from a distance than a clear liquid in a glass tube.
* Maintenance: Since the indicator is external to the process, it can be repaired or replaced without breaking the pressure seal.
* No Power Required: For local visual indication, the system is entirely mechanical and does not require electricity, making it ideal for remote or hazardous areas.
Limitations
* Moving Parts: Because it relies on a float, the system is subject to mechanical wear over many years.
* Magnetic Particles: If the process fluid contains magnetic debris, it can accumulate on the float and cause it to stick or sink.
* Initial Cost: MLIs generally have a higher upfront cost compared to simple sight glasses, though this is offset by lower maintenance and higher safety ratings.
Integration with Automation Systems
While magnetic level indicators are excellent for local visual monitoring, modern industrial plants often require remote data transmission. MLIs can be easily upgraded with electronic components to integrate with PLC or DCS systems.
* Magnetic Switches: Point-level reed switches can be clamped to the outside of the chamber. As the float passes these switches, they trip, providing high or low-level alarms.
* Magnetostrictive Transmitters: For continuous 4-20mA or HART output, a magnetostrictive transmitter can be mounted alongside the chamber. This senses the position of the float with high precision (often ±1 mm) and transmits the data to a control room.
By combining visual indication with electronic transmission, the MLI serves as a redundant, highly reliable level measurement station. For more information on integrating these sensors with industrial automation, visit the Welk Main Page.
Frequently Asked Questions (FAQs)
Q: Can magnetic level indicators be used for interface measurement?
A: Yes. By weighting the float to sink in the upper (lighter) liquid but float on the lower (heavier) liquid, MLIs can accurately track the interface between two immiscible fluids, such as oil and water.
Q: What happens if the float is installed upside down?
A: The magnetic field will not align correctly with the indicator flags, and the float may not provide an accurate representation of the liquid level. Most floats are clearly marked with "TOP" to prevent this error.
Q: How often should an MLI be cleaned?
A: This depends on the fluid. For clean liquids, an annual inspection is usually sufficient. For fluids that tend to scale or contain particulates, quarterly flushing via the drain valve is recommended.
Q: Can I use an MLI for underground tanks?
A: Standard bypass MLIs are designed for side-mounting. For underground tanks, a "top-mount" magnetic level indicator is used, which utilizes a vertical rod connected to a float to move the magnets within an above-ground housing.
By following these engineering principles and selection guidelines, industrial operators can ensure reliable, long-term level monitoring for even the most challenging process environments.
