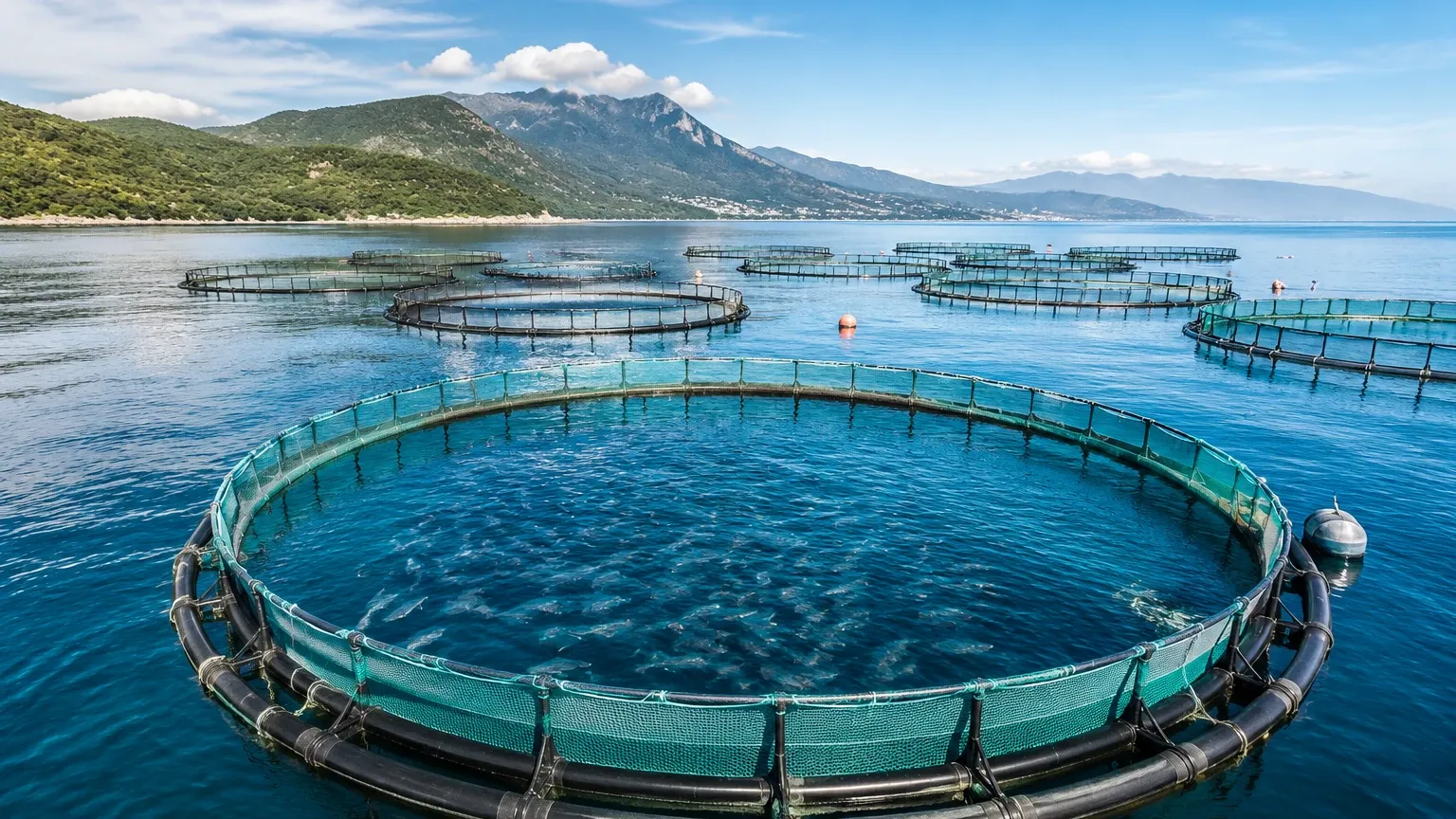

In the modern aquaculture industry, the transition from traditional pond farming to high-intensity Recirculating Aquaculture Systems (RAS) and precision-managed offshore cages has necessitated a sophisticated approach to monitoring. A "mess und regelsystem aquakultur" (measurement and control system for aquaculture) serves as the nervous system of these facilities, ensuring that water quality parameters and fluid levels remain within the narrow physiological windows required for aquatic species health.
For engineers and facility managers, selecting the right instrumentation is not merely about data collection; it is about maintaining a stable environment that maximizes feed conversion ratios (FCR) and minimizes mortality rates. This article explores the fundamental measurement principles, selection criteria, and integration strategies for level and process control in aquaculture environments.
Core Measurement Principles in Aquaculture Control
Before implementing a control system, it is essential to understand the physics behind the sensors. In aquaculture, level measurement is one of the most critical variables, as it directly impacts volume calculations for chemical dosing, biomass density management, and pump protection.
Hydrostatic Level Measurement
Hydrostatic sensors operate on the principle that the pressure at a specific depth is proportional to the height of the liquid column above it. The formula $P = \rho \cdot g \cdot h$ (where $P$ is pressure, $
ho$ is density, $g$ is gravity, and $h$ is height) allows the system to calculate the water level. In aquaculture, submersible transmitters are frequently used in deep tanks or open-water enclosures. These sensors must be constructed from corrosion-resistant materials like 316L stainless steel or titanium to withstand saline environments.
Ultrasonic (Time-of-Flight)
Ultrasonic sensors emit high-frequency sound pulses that reflect off the water surface. By measuring the time it takes for the echo to return, the system calculates the distance. This non-contact method is ideal for freshwater applications where the sensor needs to remain free from biofouling. However, in systems with heavy protein skimming or aeration, surface foam can absorb the signal, leading to inaccuracies.
Radar Level Measurement
Radar technology uses high-frequency electromagnetic waves (typically in the 26GHz or 80GHz range). Like ultrasonic sensors, radar is non-contact, but it is far more resilient to environmental interference. Radar waves are unaffected by air temperature fluctuations, steam, or surface foam, making them the gold standard for precision in complex mess und regelsystem aquakultur setups. For a comprehensive overview of available industrial instrumentation, professionals can visit the Main Page to evaluate specific sensor specifications.
Technical Selection Criteria for Aquaculture Sensors
Choosing the appropriate sensor requires a balance between accuracy, durability, and cost-effectiveness. The following table provides a comparison of the primary technologies used in aquaculture level control.
| Feature | Hydrostatic Transmitters | Ultrasonic Sensors | Radar Level Meters |
| :— | :— | :— | :— |
| Measurement Type | Contact (Submerged) | Non-contact | Non-contact |
| Accuracy | ±0.25% to ±0.5% FS | ±0.25% of range | ±1mm to ±3mm |
| Maintenance | High (cleaning required) | Medium (lens cleaning) | Low (self-cleaning designs) |
| Saltwater Suitability | Requires Titanium/PTFE | Excellent | Excellent |
| Foam Interference | None | High | Low to Moderate |
| Typical Range | 0–200m | 0–15m | 0–30m+ |
Material Compatibility
In marine aquaculture, the salinity of the water is highly corrosive. Standard stainless steel may suffer from pitting corrosion over time. When selecting components for a mess und regelsystem aquakultur, specify materials such as PVDF, Hastelloy, or specialized plastics for any parts in contact with the media. Even for non-contact sensors, the housing should be rated to at least IP67 or IP68 to protect against the high-humidity environment of indoor hatcheries.
Integrating the Regelsystem (Control Loop)
A measurement is only useful if it leads to an action. The "regelsystem" (control system) typically consists of a Programmable Logic Controller (PLC) or a Distributed Control System (DCS) that receives signals from the sensors and executes logic to maintain setpoints.
1. Signal Transmission: Most modern sensors utilize 4-20mA analog signals or digital protocols like RS485 (Modbus RTU). Digital protocols are preferred in large-scale aquaculture because they allow for multi-drop configurations and provide diagnostic data (e.g., sensor health alerts).
2. Automated Water Exchange: If the level sensor detects a drop due to evaporation or a rise due to heavy rainfall in outdoor ponds, the control system can trigger solenoid valves or pumps to restore the optimal level.
3. Pump Protection: Level meters serve as a safety interlock. If the water level in a sump or intake tank falls below a critical threshold, the regelsystem must immediately shut down pumps to prevent dry running and mechanical failure.
4. Aeration Control: While level is vital, the integration of Dissolved Oxygen (DO) sensors into the same control loop allows the system to activate aerators only when needed, significantly reducing energy costs.
Installation Considerations and Best Practices
Proper installation is often the difference between a reliable system and one that requires constant troubleshooting. When installing a mess und regelsystem aquakultur, consider the following engineering guidelines:
* Stilling Wells: In tanks with high turbulence caused by powerful aerators or fish movement, install level sensors inside a stilling well (a vertical pipe with small vent holes). This dampens surface waves and provides a stable surface for the sensor to measure.
* Dead Zones: Every ultrasonic and radar sensor has a "dead zone" or "blind zone" directly beneath the transducer face (typically 0.1m to 0.5m). Ensure the sensor is mounted high enough that the maximum water level never enters this zone.
* Beam Angle: Non-contact sensors emit a cone-shaped signal. Ensure there are no obstructions, such as pipes, ladders, or feeders, within this beam angle, as they will cause false reflections.
* Cable Protection: For hydrostatic sensors, the vented cable is a critical component that allows the sensor to compensate for atmospheric pressure. These cables should never be kinked and should terminate in a dry junction box with a desiccant cartridge to prevent moisture from entering the vent tube.
Limitations and Practical Challenges
Despite advancements in technology, certain challenges remain inherent to the aquaculture environment.
Biofouling: This is the most significant challenge for contact-based sensors. Algae, barnacles, and biofilm can accumulate on the diaphragms of hydrostatic pressure sensors, causing drift or total signal loss. Regular cleaning cycles or the use of anti-fouling coatings are necessary.
Temperature Gradients: In large outdoor ponds, temperature stratification can affect the speed of sound, which in turn affects ultrasonic measurements. While many sensors include integrated temperature compensation, radar is generally a more robust choice for outdoor use as it is unaffected by air density changes.
Signal Noise: In industrial aquaculture settings, large Variable Frequency Drives (VFDs) used for pumps can generate significant electromagnetic interference (EMI). Using shielded cables and ensuring proper grounding of the mess und regelsystem aquakultur is essential to prevent signal jitter.
Frequently Asked Questions (FAQ)
Q: How often should level sensors in an aquaculture system be calibrated?
A: For critical tanks (e.g., fry tanks or chemical dosing), a semi-annual calibration check is recommended. For general reservoir monitoring, an annual check is usually sufficient, provided the sensors are kept clean of biofouling.
Q: Can I use one control system for multiple ponds?
A: Yes. Using a centralized PLC with Modbus-connected sensors allows you to monitor and control dozens of ponds from a single interface. This reduces the per-unit cost of the regelsystem.
Q: Is radar technology too expensive for small-scale fish farming?
A: While the initial investment for radar is higher than ultrasonic or hydrostatic sensors, the total cost of ownership is often lower due to reduced maintenance requirements and higher reliability, especially in humid or foamy environments.
Q: What is the best way to protect sensors from lightning in outdoor ponds?
A: Use surge protection modules at both the sensor end and the PLC end of the signal loop. Additionally, ensure that all metal mounting structures are properly bonded to a common ground.
Conclusion
Implementing a robust mess und regelsystem aquakultur is a foundational requirement for any commercial aquaculture operation aiming for scalability and consistency. By understanding the measurement principles of hydrostatic, ultrasonic, and radar technologies, and by adhering to strict installation and material compatibility standards, facility managers can ensure their systems provide the accurate data necessary for successful aquatic production. For those seeking technical support or specific product ranges, reviewing the Main Page of professional instrumentation providers is a recommended next step in the system design process.
