In the landscape of industrial automation and process control, the pressure measurement sensor stands as a fundamental component for monitoring fluid dynamics and storage levels. These instruments are engineered to convert physical pressure into an electrical signal, providing critical data for safety, efficiency, and inventory management. Whether used in water treatment facilities, chemical processing plants, or oil and gas refineries, understanding the technical nuances of these sensors is essential for engineering professionals tasked with system design and maintenance.
This guide explores the principles, types, and selection criteria for pressure measurement sensors, specifically focusing on their application in hydrostatic level measurement. By examining the relationship between pressure and liquid height, process engineers can better evaluate which technology aligns with their specific operational requirements.
Fundamental Principles of Hydrostatic Pressure Measurement
The most common application for a pressure measurement sensor in level monitoring is based on the principle of hydrostatic pressure. This principle dictates that the pressure at a specific point within a static liquid is proportional to the weight of the liquid column above it.
The mathematical relationship is expressed by the formula:
P = ρ × g × h
Where:
* P is the hydrostatic pressure (typically measured in Pascals or bar).
* ρ (rho) is the density of the liquid (kg/m³).
* g is the acceleration due to gravity (approximately 9.81 m/s²).
* h is the height of the liquid column above the sensor (meters).
Because gravity and (ideally) density remain constant in many applications, the pressure measured by the sensor correlates directly to the level of the liquid. A pressure measurement sensor is usually calibrated to ignore atmospheric pressure—either through a vent tube in the cable or by using a differential pressure configuration—ensuring that only the weight of the liquid is measured. For a comprehensive look at how these sensors integrate into broader industrial systems, engineers often consult the Main Page of specialized instrument manufacturers to review specific model capabilities.
Types of Pressure Measurement Sensors for Industrial Level Control
Industrial pressure sensors are categorized based on their mounting style and the environment in which they operate. Selecting the right type is the first step in ensuring long-term reliability.
1. Submersible Level Transmitters
These sensors are designed to be lowered directly into the medium. They feature a waterproof housing, typically made of stainless steel, and a specialized cable that includes a capillary tube for atmospheric pressure compensation. They are ideal for deep wells, reservoirs, and open tanks where external mounting is not feasible.

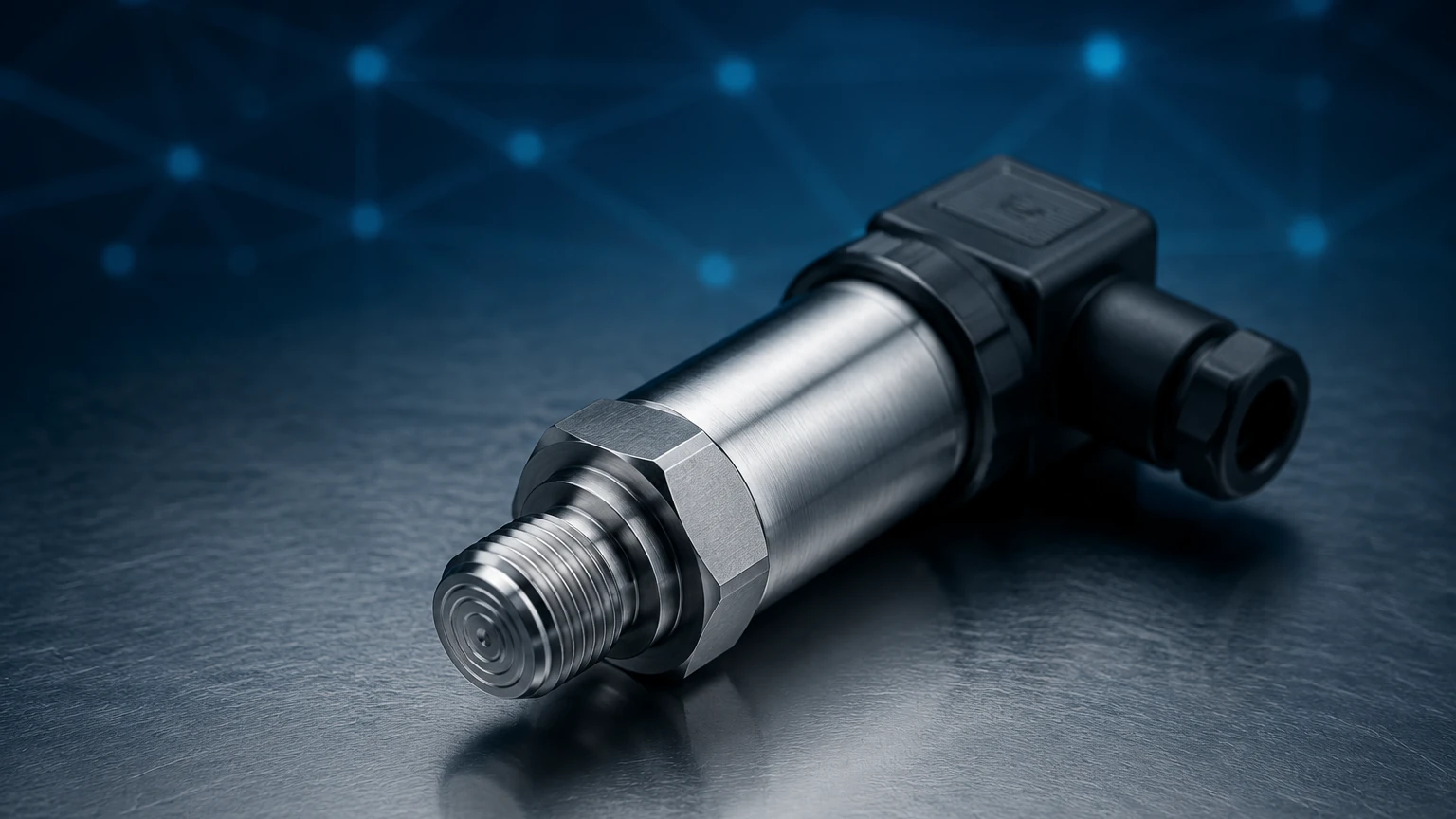

2. Externally Mounted Gauge Pressure Sensors
Mounted at the bottom or side of a tank via a threaded or flanged connection, these sensors measure the pressure relative to the local atmospheric pressure. They are commonly used in vented tanks where the liquid is non-corrosive or where the sensor can be isolated by a valve for maintenance.
3. Differential Pressure (DP) Transmitters
In pressurized or closed vessels, a standard gauge pressure sensor cannot accurately measure level because the head space pressure (the pressure of the gas above the liquid) adds to the hydrostatic pressure. A DP transmitter uses two sensing elements—one at the bottom and one at the top—to subtract the gas pressure from the total pressure, leaving only the hydrostatic pressure of the liquid.
Key Evaluation Criteria for Selection
Choosing a pressure measurement sensor requires more than just matching a pressure range. Engineers must consider the chemical, thermal, and mechanical environment of the application.
Media Compatibility and Material Selection
The wetted parts of the sensor must be chemically resistant to the process fluid. While 316L stainless steel is the standard for water and mild oils, more aggressive chemicals may require:
* Hastelloy C: For high-corrosion environments.
* Ceramic Diaphragms: Highly resistant to abrasion and many acids.
* PTFE/Teflon Coatings: Used for extreme chemical resistance in submersible applications.
Pressure Range and Overpressure Protection
The sensor should be selected such that the maximum expected liquid height corresponds to approximately 75% to 90% of the sensor's full-scale range. This provides a buffer for unexpected surges. Additionally, checking the "overpressure rating" is vital; it defines the maximum pressure the sensor can withstand without permanent damage or calibration shift.
Accuracy and Long-term Stability
In B2B applications, accuracy is often defined as a percentage of the Full Scale (FS). A standard industrial sensor might offer 0.5% FS accuracy, while high-precision applications may require 0.1% FS or better. Long-term stability refers to the sensor's ability to maintain its calibration over time, reducing the frequency of maintenance cycles.
Technical Selection Table
The following table provides a quick reference for comparing common pressure measurement sensor configurations used in industrial level sensing.
| Feature | Submersible Transmitter | Gauge Pressure Sensor | Differential Pressure (DP) |
| :— | :— | :— | :— |
| Best Use Case | Deep wells, open tanks, sumps | Vented process tanks | Pressurized/Closed vessels |
| Installation | Suspended by cable | Threaded/Flanged (Bottom) | Dual ports (Top and Bottom) |
| Atmospheric Comp. | Internal vent tube | Vent hole in housing | Comparative measurement |
| Maintenance | Requires pulling cable | Can use isolation valves | Complex manifold required |
| Typical Accuracy | 0.2% to 0.5% FS | 0.1% to 0.5% FS | 0.075% to 0.2% FS |
| Media Contact | Fully submerged | Diaphragm only | Diaphragms and impulse lines |
Installation and Engineering Considerations
Correct installation is as critical as the selection of the pressure measurement sensor itself. Improper mounting can lead to signal noise, premature failure, or inaccurate readings.
1. Atmospheric Compensation (Venting)
For submersible sensors, the vent tube in the cable must remain unobstructed. It should terminate in a dry environment, often using a desiccant filter to prevent moisture from entering the tube. Moisture ingress can cause internal corrosion or lead to measurement errors due to "water slugs" in the capillary.
2. Avoiding Turbulence and Silt
In tanks with agitators or high-flow inlets, sensors should be installed away from direct flow paths. For submersible units, using a stilling well (a perforated pipe) can protect the sensor from mechanical stress and turbulence. In wastewater applications, the sensor should be mounted slightly above the bottom to avoid being buried in silt or sludge.
3. Temperature Effects
Pressure measurement sensors are sensitive to temperature changes, which can cause the fill fluid behind the diaphragm to expand or contract. High-quality sensors include internal temperature compensation. However, if the process temperature exceeds the sensor's limits (typically above 80°C for standard units), cooling elements or remote seals should be utilized.
Limitations and Common Risks
While pressure measurement sensors are versatile, they are not universal solutions. Engineers must be aware of the following limitations:
* Density Sensitivity: Since the measurement is weight-based, any change in the liquid's density (due to temperature fluctuations or concentration changes) will result in a level error. If the density decreases, the sensor will report a lower level than actually exists.
* Mechanical Damage: Thin diaphragms are susceptible to damage from solids in the fluid or improper cleaning techniques. Never touch the diaphragm with a tool or high-pressure water jet.
* Signal Interference: In industrial environments, long cable runs can pick up electromagnetic interference (EMI). Using shielded twisted-pair cabling and 4-20mA current loops helps mitigate this risk.
Frequently Asked Questions (FAQ)
Q: How often should a pressure measurement sensor be calibrated?
A: Most industrial sensors should be checked annually. However, in critical applications or harsh environments, a six-month interval may be necessary. If the sensor shows a "zero drift" (reading non-zero when the tank is empty), it is time for recalibration.
Q: Can I use a pressure sensor for boiling liquids?
A: It is challenging. Boiling liquids have fluctuating densities due to vapor bubbles, and the steam can affect the pressure in the head space. Differential pressure transmitters with remote seals are usually required for these applications.
Q: What is the difference between a pressure transducer and a pressure transmitter?
A: In common industrial parlance, a transducer typically outputs a voltage signal (e.g., 0-10V), while a transmitter outputs a current signal (e.g., 4-20mA). Transmitters are preferred in B2B industrial settings because current signals are more resistant to electrical noise and can travel longer distances without signal loss.
Q: Does the shape of the tank affect the pressure measurement?
A: No. Hydrostatic pressure depends only on the height of the liquid and its density. Whether the tank is a narrow cylinder or a wide basin, the pressure at the bottom will be the same if the liquid height is the same. However, the tank shape *does* affect the volume calculation derived from that level.
Conclusion
The pressure measurement sensor remains a cornerstone of industrial level monitoring due to its reliability and relatively low cost of ownership. By understanding the hydrostatic principle and carefully matching sensor materials and ranges to the specific process environment, engineers can ensure accurate data collection. For those seeking specific product specifications or technical support for complex installations, visiting a professional manufacturer's Main Page provides the necessary documentation and expert guidance to move from planning to implementation. Proper selection, combined with rigorous installation standards, ensures that these sensors provide the stable, long-term performance required in modern industrial automation.
