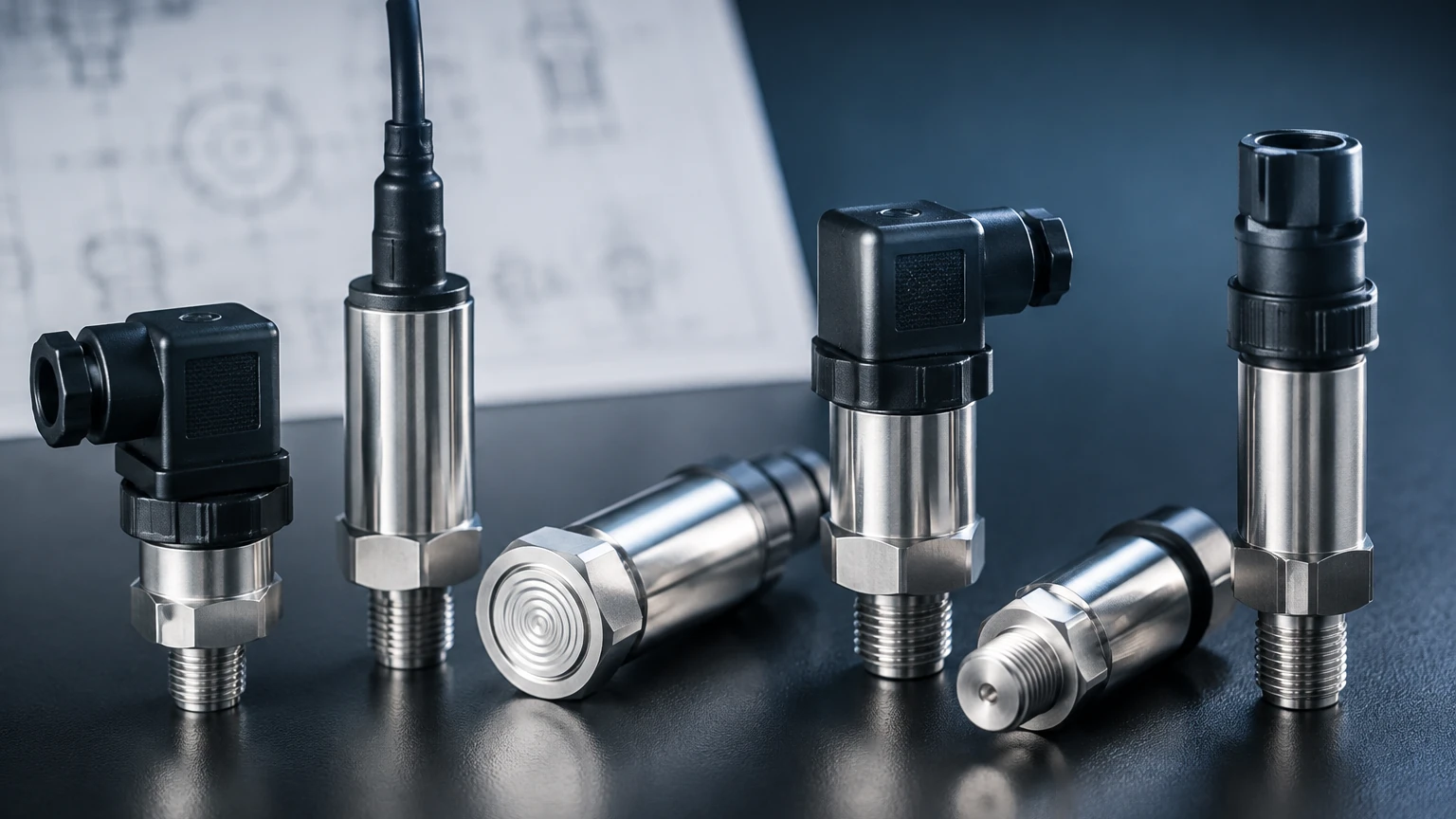

Pressure Sensor Types
Pressure Sensor Types
In industrial automation and process control, pressure sensors serve as the fundamental sensory organs for monitoring system health and fluid dynamics. Whether measuring the force within a hydraulic line or determining the liquid level in a storage tank via hydrostatic head, selecting the correct instrument requires a deep understanding of the various pressure sensor types and their underlying physics. This guide explores the engineering principles, technological variations, and selection criteria essential for professional application.
Fundamental Measurement Principles
Before categorizing pressure sensor types by their application, it is critical to understand the physical phenomena used to convert mechanical pressure into an electrical signal. Most modern industrial sensors rely on the deflection of a diaphragm, but the method of detecting that deflection varies.
Piezoresistive Sensors
This is the most common principle used in industrial applications. Piezoresistive sensors utilize strain gauges—often made of silicon or metal foil—bonded to a diaphragm. When pressure is applied, the diaphragm deforms, causing a change in the electrical resistance of the strain gauges. This change is typically measured using a Wheatstone bridge circuit. Piezoresistive sensors are favored for their high sensitivity and robustness, though they can be susceptible to temperature fluctuations if not properly compensated.
Capacitive Sensors
Capacitive pressure sensors measure the change in electrical capacitance between a flexible diaphragm and a fixed backplate. As pressure moves the diaphragm, the distance between the plates changes, altering the capacitance. These sensors are known for their extreme sensitivity and ability to measure very low pressures. They are also inherently more resistant to overpressure because the diaphragm can bottom out against the backplate without breaking.
Resonant Wire and Optical Sensors
In high-precision environments, resonant wire sensors measure the change in resonant frequency of a wire under tension as the diaphragm moves. Optical sensors, on the other hand, use fiber optics to detect diaphragm displacement, making them immune to electromagnetic interference (EMI) and suitable for hazardous or high-voltage environments.
Categorization by Reference Pressure
Pressure is a relative measurement. To provide a meaningful value, a sensor must compare the process pressure against a known reference. The three primary pressure sensor types defined by their reference are gauge, absolute, and differential.
1. Gauge Pressure Sensors
Gauge pressure is measured relative to the local atmospheric pressure. The back of the sensing diaphragm is vented to the atmosphere through a small tube or vent in the cable. This ensures that the sensor ignores changes in barometric pressure caused by weather or altitude. Gauge pressure is the standard for most industrial tank level measurements and pipe pressure monitoring.
2. Absolute Pressure Sensors
Absolute pressure sensors measure pressure relative to a perfect vacuum sealed within the device. These are used when atmospheric fluctuations would introduce unacceptable errors, such as in vacuum distillation processes, barometric weather monitoring, or high-altitude aerospace applications.
3. Differential Pressure (DP) Sensors
Differential pressure sensors measure the difference between two distinct pressure points. They feature two process ports (High and Low). In level measurement, DP sensors are essential for pressurized tanks; the "High" side measures the total pressure at the bottom (liquid + headspace gas), while the "Low" side measures only the headspace gas pressure. The sensor subtracts the gas pressure to provide a clean reading of the liquid level.
Industrial Pressure Sensor Technologies
Beyond the measurement reference, the physical construction of the sensor determines its suitability for specific media and environments. Engineers must choose between various material-based pressure sensor types.
* Ceramic Sensors: These utilize a thick-film strain gauge on a ceramic base. Ceramic is highly resistant to corrosion and abrasion, making these sensors ideal for aggressive chemicals or slurries where stainless steel might fail.
* Silicon-on-Sapphire (SoS): By bonding silicon to a sapphire diaphragm, manufacturers create a sensor with exceptional thermal stability and radiation resistance. These are often found in high-temperature or aerospace applications.
* Thin-Film Sensors: These are produced by sputtering thin layers of metal or dielectric material onto a stainless steel diaphragm. They offer excellent long-term stability and are highly resistant to vibration and shock, common in heavy machinery and hydraulic systems.
Pressure Sensors in Level Measurement
One of the most significant applications for these instruments is hydrostatic level measurement. According to the hydrostatic principle, the pressure at the bottom of a liquid column is directly proportional to its height ($h = P / (\rho \cdot g)$). For engineers reviewing level measurement options, understanding the specific Main Page for technical specifications is essential for matching the sensor to the fluid density and tank geometry.
Submersible vs. External Sensors
* Submersible Level Transmitters: These are gauge pressure sensors designed to be lowered directly into the liquid. They are encased in waterproof housing (often IP68) with a vented cable to provide the atmospheric reference. They are ideal for open wells, reservoirs, and lift stations.
* Flange-Mounted / Threaded Sensors: These are mounted to the side or bottom of a tank. They are easier to maintain as they do not require removal from the top of the vessel, but they require a process connection (hole) in the tank wall.
Practical Selection Table
| Sensor Type | Best For | Typical Accuracy | Limitations |
| :— | :— | :— | :— |
| Piezoresistive | General industrial, hydraulics | 0.25% to 0.5% FS | Temperature sensitivity |
| Capacitive | Low pressure, laboratory | 0.05% to 0.1% FS | Sensitive to vibration |
| Ceramic | Corrosive chemicals, wastewater | 0.5% FS | Lower overpressure limit |
| Differential | Pressurized tanks, flow measurement | 0.1% to 0.25% FS | Complex installation (impulse lines) |
| Submersible | Deep wells, open reservoirs | 0.2% to 0.5% FS | Difficult to calibrate in-situ |
Installation Considerations and Best Practices
Selecting the right pressure sensor types is only half the battle; proper installation is required to maintain accuracy and longevity.
1. Venting and Moisture: For gauge sensors, the vent tube must remain unobstructed. In humid environments, a desiccant filter or a specialized bellows should be used to prevent moisture from entering the vent tube and causing internal corrosion or signal drift.
2. Mounting Position: Sensors should be mounted where the fluid is relatively stagnant. Installing a sensor directly in the path of an inlet flow or near an agitator can cause "noise" in the readings due to turbulence.
3. Impulse Lines: For differential pressure sensors in steam or high-temperature applications, impulse lines (small diameter pipes) are used to distance the sensor from the heat. These lines must be sloped to prevent gas bubbles (in liquid lines) or condensate (in gas lines) from becoming trapped.
4. Electrical Isolation: In environments with heavy motors or VFDs (Variable Frequency Drives), ensure the sensor is properly grounded and uses shielded cabling to prevent EMI from distorting the 4-20mA or digital signal.
Limitations and Common Risks
While pressure sensors are highly reliable, they are subject to specific failure modes that engineers must mitigate:
* Overpressure and Pressure Spikes: Rapid valve closures can create "water hammer" effects, producing pressure spikes many times the rated limit of the sensor. Using a pressure snubber or choosing a sensor with a high overpressure rating (e.g., 3x or 4x the nominal range) is necessary in these systems.
* Chemical Compatibility: The diaphragm material (316L Stainless Steel, Hastelloy, Tantalum, or Ceramic) must be compatible with the process media. Even a small amount of corrosion can change the diaphragm's thickness, leading to permanent calibration drift.
* Thermal Shift: All sensors experience some degree of error when the temperature changes. While high-quality transmitters include active temperature compensation, extreme shifts can still impact accuracy. In such cases, remote seals (capillary systems) may be used to isolate the electronics from the heat.
Frequently Asked Questions (FAQ)
Q: What is the difference between a pressure sensor, a pressure transducer, and a pressure transmitter?
A: While the terms are often used interchangeably, a *sensor* is the raw element (e.g., the Wheatstone bridge). A *transducer* converts the sensor signal into a millivolt or voltage output. A *transmitter* is a more robust device that converts the signal into a standardized industrial format like 4-20mA, HART, or Modbus, suitable for long-distance transmission.
Q: How often should industrial pressure sensors be calibrated?
A: For most industrial applications, an annual calibration check is standard. However, in critical custody transfer or highly corrosive environments, semi-annual or quarterly checks may be required to ensure accuracy remains within the specified tolerance.
Q: Can I use a gauge pressure sensor on a sealed tank?
A: No. If the tank is sealed, the headspace pressure will change as the liquid level rises or falls, or as the temperature changes. A gauge sensor will not be able to distinguish between liquid height and headspace pressure. You must use a differential pressure sensor or two absolute sensors to calculate the difference.
Q: Why is 4-20mA the preferred output for these sensors?
A: The 4-20mA current loop is highly resistant to electrical noise and can travel long distances without signal loss. Furthermore, the "live zero" (4mA) allows the system to detect a broken wire if the current drops to 0mA.
Conclusion
Identifying the appropriate pressure sensor types involves balancing the physical requirements of the media with the precision demands of the process. From the robust simplicity of piezoresistive gauge sensors to the complex accuracy of differential pressure transmitters, these tools are indispensable for modern industrial level and flow control. When planning a new installation or upgrading an existing system, engineers should consult detailed technical documentation and manufacturer specifications to ensure the chosen instrument can withstand the operational stresses of the specific environment.
