In the landscape of industrial automation and logistics, the ability to accurately monitor and manage fuel reserves is a cornerstone of operational efficiency. Whether managing bulk storage for a regional distribution center, monitoring backup power generators for a data center, or tracking fuel consumption in heavy machinery, selecting the appropriate sensor fuel level technology is critical. Industrial fuel measurement requires higher precision, durability, and integration capabilities than consumer-grade automotive applications.

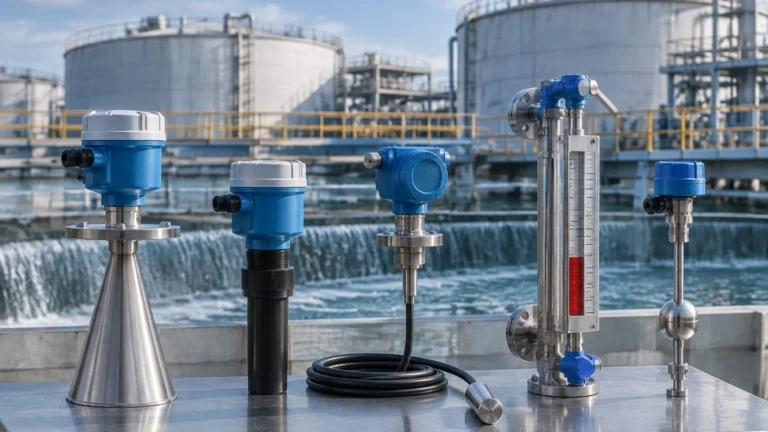

Welk provides a comprehensive range of level measurement instruments designed to meet the rigorous demands of the oil and gas, chemical, and water treatment sectors. Understanding the underlying measurement principles is the first step for engineers and procurement professionals in selecting a system that ensures safety, prevents stockouts, and optimizes the supply chain.
Measurement Principles for Fuel Level Sensing
Fuel level sensors operate on various physical principles, each with specific advantages depending on the fuel type, tank geometry, and environmental conditions.
Hydrostatic Pressure Measurement
Hydrostatic level transmitters measure the pressure exerted by the liquid column above the sensor. According to the hydrostatic principle, the pressure at the bottom of a tank is directly proportional to the height of the liquid and its density ($P = \rho gh$). For fuel applications, the sensor is typically submerged or mounted at the bottom of the tank.
* Advantages: Simple installation, reliable for stationary tanks, and cost-effective.
* Considerations: Since fuel density changes with temperature, hydrostatic sensors often require temperature compensation to maintain accuracy. They are best suited for large, vented storage tanks where the fuel density remains relatively constant.
Capacitive Level Sensing
Capacitive sensors treat the fuel tank as a capacitor. The sensor probe acts as one electrode, and the tank wall (if metal) or a reference sleeve acts as the other. As the fuel level rises, it displaces air between the electrodes. Because fuel and air have different dielectric constants ($ε$), the total capacitance changes linearly with the level.
* Advantages: No moving parts, high resolution, and suitable for high-vibration environments like mobile machinery.
* Considerations: These sensors are sensitive to changes in fuel composition, such as varying blends of biodiesel or ethanol, which can alter the dielectric constant and necessitate recalibration.
Ultrasonic Level Measurement
Ultrasonic sensors are non-contact devices that emit high-frequency sound pulses toward the fuel surface. The sensor measures the time it takes for the echo to return (Time-of-Flight). By knowing the speed of sound in the vapor space, the distance to the fuel surface is calculated.
* Advantages: Non-contact (no corrosion or clogging), easy to install on top of the tank, and versatile.
* Considerations: Ultrasonic waves can be affected by heavy vapors, foam on the fuel surface, or extreme temperature fluctuations that change the speed of sound. They are generally limited to ranges of 10 to 15 meters (32.8 to 49.2 ft).
Radar Level Measurement (GWR and Non-Contact)
Radar technology uses high-frequency electromagnetic waves (microwave) instead of sound.
1. Guided Wave Radar (GWR): The microwave travels along a probe or cable. It is highly accurate and unaffected by foam or dust.
2. Non-contact Radar: The sensor emits a signal through the air. Modern 80GHz radar systems provide extremely narrow beams, allowing for measurement in narrow tanks or tanks with internal obstructions.
* Advantages: Highest accuracy (±1mm to ±3mm), unaffected by vapor, pressure, or temperature changes. Ideal for volatile fuels like gasoline or jet fuel.
* Considerations: Higher initial investment compared to hydrostatic or ultrasonic options.
Magnetic Level Gauges
Magnetic level gauges utilize a float containing an internal magnet that moves with the liquid level inside a bypass chamber. This magnet actuates a visual indicator or a transmitter (such as a magnetostrictive probe) mounted on the outside.
* Advantages: Provides a clear visual local indication without power, and the electronic transmitter is isolated from the process media.
* Considerations: Requires a bypass chamber, which adds to the mechanical footprint and installation complexity.
Technical Comparison and Selection Table
When evaluating a sensor fuel level solution, technical specifications must be matched against the application requirements. The following table provides a general comparison of the most common industrial technologies.
| Technology | Accuracy | Measurement Range | Media Contact | Best For |
| :— | :— | :— | :— | :— |
| Hydrostatic | ±0.25% to 0.5% | Up to 200m | Yes | Deep storage tanks, vented tanks |
| Capacitive | ±0.5% to 1% | Up to 3m | Yes | Vehicle fuel tanks, gensets |
| Ultrasonic | ±0.25% | 0.25m – 15m | No | Diesel storage, water-fuel interface |
| Radar (80GHz) | ±1mm to ±2mm | Up to 120m | No | Volatile fuels, high-precision custody transfer |
| Magnetic Gauge | ±5mm (Visual) | Up to 6m | Yes | High-pressure vessels, visual monitoring |
For a deeper look at specific models and technical datasheets, professionals should visit the Main Page to review product options and application support.
Practical Selection Criteria
Choosing the right sensor involves more than just picking a technology; it requires a detailed analysis of the operating environment.
1. Fuel Type and Chemical Compatibility
Different fuels have different properties. Diesel is relatively stable, whereas gasoline (petrol) is highly volatile and produces significant vapor. For volatile fuels, non-contact radar is preferred because it is unaffected by the dielectric properties of the vapor space. Furthermore, the materials of the sensor (316L stainless steel, PTFE, FKM) must be compatible with the fuel to prevent corrosion or seal failure.
2. Tank Geometry and Internal Obstructions
In tanks with internal baffles, heating coils, or agitators, a non-contact sensor with a wide beam angle (like older ultrasonic units) may receive false echoes. In such cases, an 80GHz radar with a narrow beam or a Guided Wave Radar (GWR) is necessary to "steer" the signal past obstructions.
3. Hazardous Area Requirements
Fuel storage areas are often classified as hazardous zones (Class I, Div 1 or ATEX Zone 0/1). Sensors must be certified as intrinsically safe (Ex ia) or explosion-proof (Ex d). Welk ensures that industrial level meters meet these global safety standards to prevent ignition in the presence of flammable vapors.
4. Integration and Output Signals
Modern B2B applications require data integration into SCADA, PLC, or IoT platforms. Standard outputs include 4-20mA with HART protocol, RS485 Modbus, or wireless transmissions (NB-IoT/LoRaWAN) for remote tank farms where wiring is cost-prohibitive.
Installation Considerations
Proper installation is as important as the sensor technology itself. Failure to follow engineering guidelines often leads to signal loss or inaccurate readings.
* Dead Zones (Blocking Distance): All top-mounted sensors (ultrasonic and radar) have a "dead zone" near the sensor face where measurement is impossible. The sensor must be mounted high enough that the maximum fuel level never enters this zone.
* Mounting Position: Sensors should not be mounted directly above the fuel inlet pipe. The turbulence and aeration caused by filling will result in erratic readings. Ideally, the sensor should be placed at 1/4 to 1/3 of the tank diameter from the wall.
* Stilling Wells: In tanks with heavy turbulence or surface foam, installing the sensor inside a stilling well (a vertical pipe with vent holes) can provide a calm surface for accurate measurement.
* Grounding: For capacitive and hydrostatic sensors, proper electrical grounding is essential to eliminate signal noise and protect against lightning strikes in outdoor installations.
Limitations and Common Risks
While industrial sensors are robust, they are not immune to environmental challenges:
1. Temperature Extremes: In very cold climates, fuel can wax or gel, affecting hydrostatic pressure readings or clogging sensor diaphragms. Heated enclosures or non-contact sensors are recommended for these environments.
2. Condensation: In humid environments, water droplets can form on the face of ultrasonic or radar sensors. While radar is less affected, heavy condensation on an ultrasonic transducer can attenuate the signal. Many Welk sensors feature drip-off antenna designs to mitigate this risk.
3. Vapor and Pressure: High-pressure storage or the presence of heavy gas layers can change the speed of sound, making ultrasonic sensors inaccurate unless they are specifically calibrated for those conditions. Radar remains the most reliable choice for pressurized vessels.
Frequently Asked Questions (FAQs)
Q: How often do fuel level sensors need calibration?
A: This depends on the technology. Hydrostatic and capacitive sensors should be checked annually. Radar and ultrasonic sensors are generally more stable but should be verified during routine maintenance cycles to ensure the tank parameters in the software remain correct.
Q: Can one sensor be used for both diesel and gasoline?
A: While the hardware might be compatible, the settings (density for hydrostatic, dielectric constant for capacitive) must be adjusted. Non-contact radar is the most versatile for switching between fuel types with minimal reconfiguration.
Q: What is the maximum distance for remote fuel monitoring?
A: With RS485 Modbus, wired runs can reach 1,200 meters (approx. 3,900 ft). For longer distances or remote sites, cellular or satellite-based IoT gateways are used to transmit data to a central cloud platform.
Q: How do I handle measurement in tanks with irregular shapes?
A: Most modern level transmitters allow for the input of a "strapping table" or volume linearization curve. By entering the tank dimensions, the sensor can convert the measured level (mm) into a volume (liters or gallons) automatically.
Conclusion
Selecting a sensor fuel level system requires a balance of precision, environment compatibility, and budget. For critical industrial applications, the reliability of the measurement directly impacts safety and the bottom line. By understanding the physics of hydrostatic, capacitive, ultrasonic, and radar measurement, engineers can specify solutions that provide years of maintenance-free service.
