Ultrasonic Level Monitoring
Ultrasonic Level Monitoring

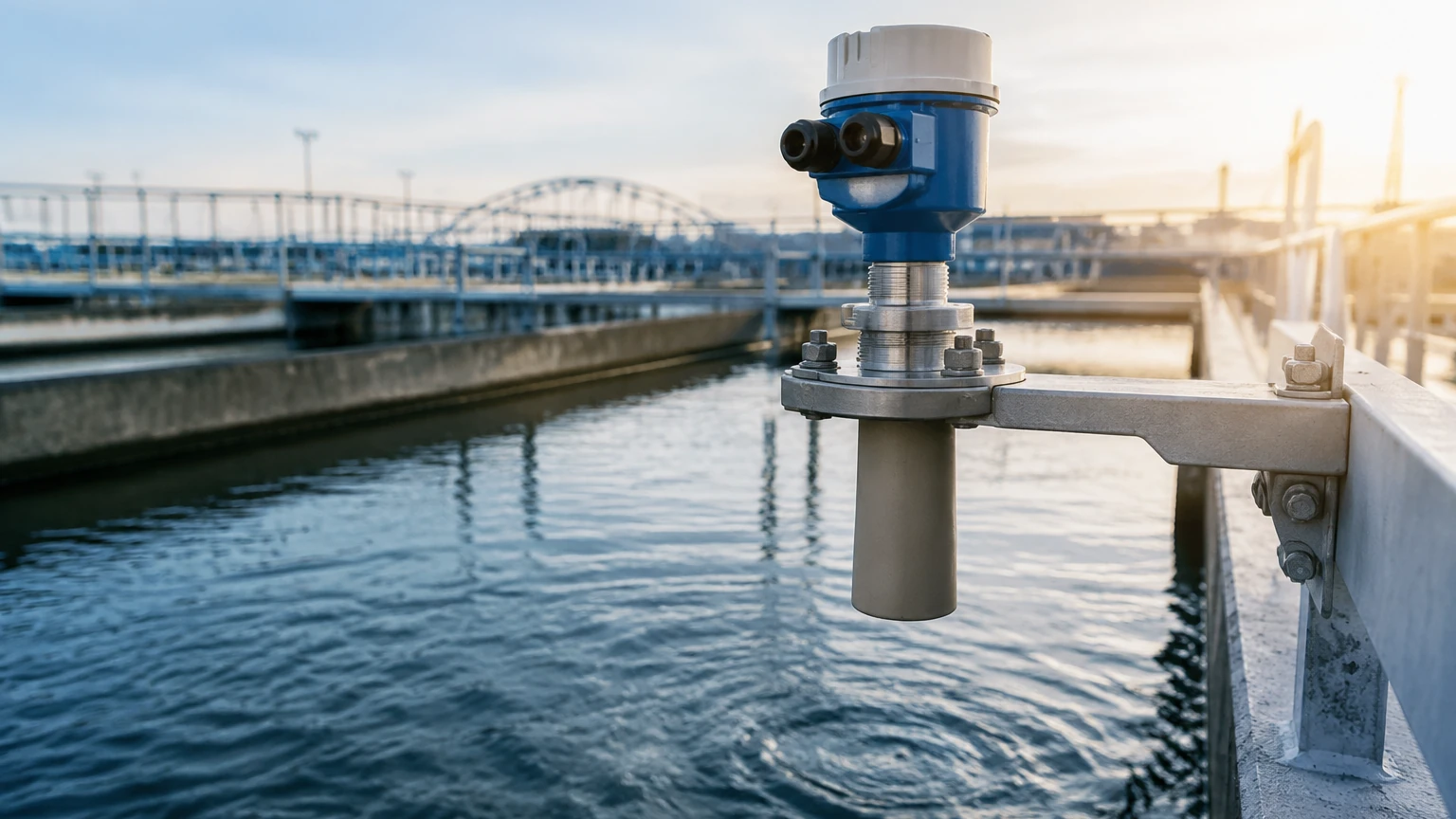

Ultrasonic level monitoring has become a cornerstone of modern industrial process control, providing a reliable, non-contact method for measuring the volume and height of liquids, slurries, and certain solids. As industries move toward higher levels of automation and stricter safety standards, understanding the technical nuances of ultrasonic technology is essential for plant engineers and system integrators. This guide provides a comprehensive technical overview of ultrasonic measurement principles, selection criteria, and installation best practices to ensure optimal performance in diverse industrial environments.
Understanding the Measurement Principle
At its core, ultrasonic level monitoring relies on the propagation of high-frequency sound waves. The system typically consists of a transducer and a signal processing unit. The transducer acts as both a transmitter and a receiver, utilizing piezoelectric crystals to convert electrical energy into mechanical sound pulses.
The Time-of-Flight (ToF) Calculation
The measurement process follows a cyclical pattern:
1. Emission: The transducer emits a burst of ultrasonic pulses (typically in the range of 20 kHz to 200 kHz) toward the target surface.
2. Reflection: The sound waves travel through the air or gas space above the medium, hit the surface, and reflect back toward the sensor.
3. Reception: The transducer detects the returning echo.
4. Calculation: The internal electronics measure the time elapsed between the emission and the reception of the pulse.
The distance ($D$) from the sensor to the surface is calculated using the formula:
$D = (v \times t) / 2$
Where $v$ is the speed of sound in the medium (usually air) and $t$ is the total travel time. Since the distance from the sensor to the bottom of the tank (the "Zero Level") is a known constant, the actual level of the material is determined by subtracting the measured distance from the total tank height.
Frequency and Beam Angle
The frequency of the ultrasonic pulse determines the sensor's range and resolution. Lower frequencies (e.g., 20-40 kHz) have longer wavelengths and can travel further, making them suitable for measuring levels in tall silos or deep wells up to 30 meters or more. Conversely, higher frequencies (e.g., 100-200 kHz) offer better resolution and smaller "dead zones," but are limited to shorter ranges, typically under 5 meters. The beam angle, usually between 5° and 12°, defines the spread of the sound wave; a narrower beam is preferable in confined spaces to avoid interference from internal tank structures.
Key Evaluation Criteria for Sensor Selection
Selecting the right instrument for ultrasonic level monitoring requires a detailed analysis of the application environment. Engineers must look beyond basic range specifications to ensure long-term reliability.
Material Compatibility
While the sensor does not touch the medium, the housing and transducer face must withstand the ambient atmosphere. In chemical processing, corrosive vapors may be present. Sensors with PVDF (Polyvinylidene Fluoride) or PTFE (Polytetrafluoroethylene) faces are often required for acid or solvent storage tanks. For general water treatment or wastewater applications, standard ABS or polypropylene housings are usually sufficient.
Environmental Conditions
Temperature is the most critical variable affecting ultrasonic accuracy because the speed of sound changes with air density. Most professional-grade sensors include an integrated temperature probe to provide real-time compensation. However, if significant temperature gradients exist within the tank (e.g., a heated liquid in a cold environment), the accuracy may still fluctuate. In such cases, external temperature sensors or specialized radar level meters may be more appropriate. You can Review product options and application support on our Main Page to compare ultrasonic and radar technologies for extreme temperature scenarios.
Signal Output and Integration
Modern ultrasonic level monitoring systems offer various output options to interface with PLC (Programmable Logic Controller) or SCADA systems. Common standards include:
* 4-20 mA Analog: The industry standard for simple point-to-point loops.
* HART Protocol: Allows digital communication over the analog loop for diagnostics and remote configuration.
* Modbus RTU/RS485: Ideal for multi-drop networks where multiple sensors are connected to a single controller.
* Switch Outputs: Integrated relays for high/low-level alarms and pump control.
Practical Selection Table
The following table serves as a general guide for matching ultrasonic sensor specifications to common industrial applications.
| Application Type | Typical Range | Recommended Frequency | Key Consideration |
| :— | :— | :— | :— |
| Wastewater Wet Wells | 2–10 meters | 40–60 kHz | Submergence protection and foam resistance. |
| Chemical Storage Tanks | 1–5 meters | 80–100 kHz | Chemical compatibility (PVDF/PTFE) and narrow beam. |
| Food & Beverage Silos | 5–15 meters | 30–50 kHz | Sanitary mounting and CIP (Clean-in-Place) compatibility. |
| Open Channel Flow | 0.5–3 meters | 100–120 kHz | High precision and integrated flow conversion tables. |
| Small Process Vessels | 0.2–2 meters | 150–200 kHz | Minimal dead zone and fast response time. |
Installation Best Practices
The performance of an ultrasonic level monitoring system is often determined by the quality of its installation. Even the most advanced sensor will fail if placed incorrectly.
Avoiding the Dead Zone
Every ultrasonic sensor has a "dead zone" (also known as the blocking distance) immediately below the transducer face. In this region, the sensor cannot accurately process the returning echo because the transducer is still vibrating from the emission pulse. Typical dead zones range from 10 cm to 80 cm depending on the frequency. The sensor must be mounted high enough so that the maximum liquid level never enters this zone.
Mounting Position and Orientation
* Perpendicularity: The sensor must be mounted perfectly perpendicular to the liquid surface. A tilt of even a few degrees can cause the reflected signal to bounce away from the transducer, resulting in a "Loss of Echo" (LOE) error.
* Wall Interference: Do not mount the sensor too close to the tank wall. The beam spreads as it travels, and reflections from the wall or weld seams can create false echoes. A general rule is to maintain a distance from the wall equal to at least 10% of the tank height.
* Obstructions: Ensure the beam path is clear of internal obstructions such as ladders, agitators, or inflow pipes. If obstructions are unavoidable, many modern sensors offer "False Echo Suppression" software that allows the user to map out and ignore static reflections.
* Central Placement: Avoid mounting the sensor in the exact center of a domed-roof tank, as this can act as a parabolic reflector and concentrate unwanted noise or multiple reflections back to the sensor.
Limitations and Common Risks
While ultrasonic level monitoring is versatile, it is not a universal solution. Engineers must be aware of the following physical limitations:
1. Vacuum Conditions: Sound waves require a medium (gas/air) to travel. Ultrasonic sensors will not function in a vacuum.
2. Heavy Foam: Dense foam on the surface of a liquid acts as an acoustic insulator, absorbing the sound pulse rather than reflecting it. If foam is present, a radar level meter or a hydrostatic pressure transmitter is usually a better choice.
3. High Turbulence: Rapidly churning liquid or heavy surface ripples can scatter the ultrasonic signal. While software filtering can help, extreme turbulence may lead to unstable readings.
4. Dust and Vapor: While light dust is manageable, extremely heavy dust (in grain silos) or thick steam can attenuate the signal. High-power transducers with self-cleaning faces are designed to mitigate these effects, but they have limits.
5. Pressure Extremes: High pressure changes the density of the air, which in turn affects the speed of sound and the efficiency of the transducer. Most ultrasonic sensors are rated for near-atmospheric pressure (typically -0.5 to 3 bar).
Integration and Maintenance
To maintain the accuracy of ultrasonic level monitoring over time, a basic maintenance schedule should be implemented. Unlike contact-based systems (like float switches), maintenance is minimal but critical.
* Transducer Cleaning: In applications with heavy vapor or condensation, droplets may form on the transducer face. While many sensors are designed to shed condensation, a periodic wipe with a soft cloth can prevent signal degradation.
* Calibration Verification: Annual verification against a manual tape measure is recommended to ensure that temperature compensation and signal processing remain accurate.
* Firmware Updates: For smart sensors, ensure that the latest firmware is installed to take advantage of improved signal processing algorithms and diagnostic features.
For complex installations involving multiple tanks or integrated automation, consulting the technical documentation on our Main Page can provide deeper insights into networking and multi-sensor configurations.
Frequently Asked Questions (FAQs)
Can ultrasonic sensors measure the level of solids?
Yes, ultrasonic level monitoring can be used for solids like plastic pellets, grains, or coal. However, solids often have an "angle of repose" (a sloped surface) which can scatter the signal. For solids, it is recommended to use a sensor with a higher power output and a lower frequency to penetrate potential dust.
How does wind affect ultrasonic measurement in open-air tanks?
Strong wind can physically displace the sound pulse, especially over long distances. In outdoor applications like reservoir monitoring or open channel flow, it is advisable to use a sunshade/windshield or mount the sensor inside a stilling well to provide a stable column of air.
What is the difference between an integrated and a remote ultrasonic sensor?
An integrated sensor has the transducer and the electronics in a single housing. This is simpler to install and cost-effective. A remote system has a separate transducer connected via cable to a control unit. Remote systems are preferred when the measurement point is difficult to access or when the environment at the tank is too hot or hazardous for the electronics.
How do I handle a "Loss of Echo" alarm?
First, check for obstructions or heavy foam. Ensure the transducer face is clean and that the sensor is still mounted perpendicular to the surface. If the problem persists, you may need to increase the gain (sensitivity) of the sensor or consider a lower-frequency model with better penetration power.
Conclusion
Ultrasonic level monitoring remains one of the most effective and widely used technologies in the industrial sector due to its non-contact nature and ease of integration. By carefully considering the physical properties of the medium, the geometry of the vessel, and the environmental conditions, engineers can implement a measurement solution that provides years of accurate and maintenance-free service. For those looking to explore a full range of industrial level measurement instruments, including radar and hydrostatic options, visiting our Main Page offers a wealth of technical resources and product specifications to guide your selection process.
