Wastewater Instrumentation

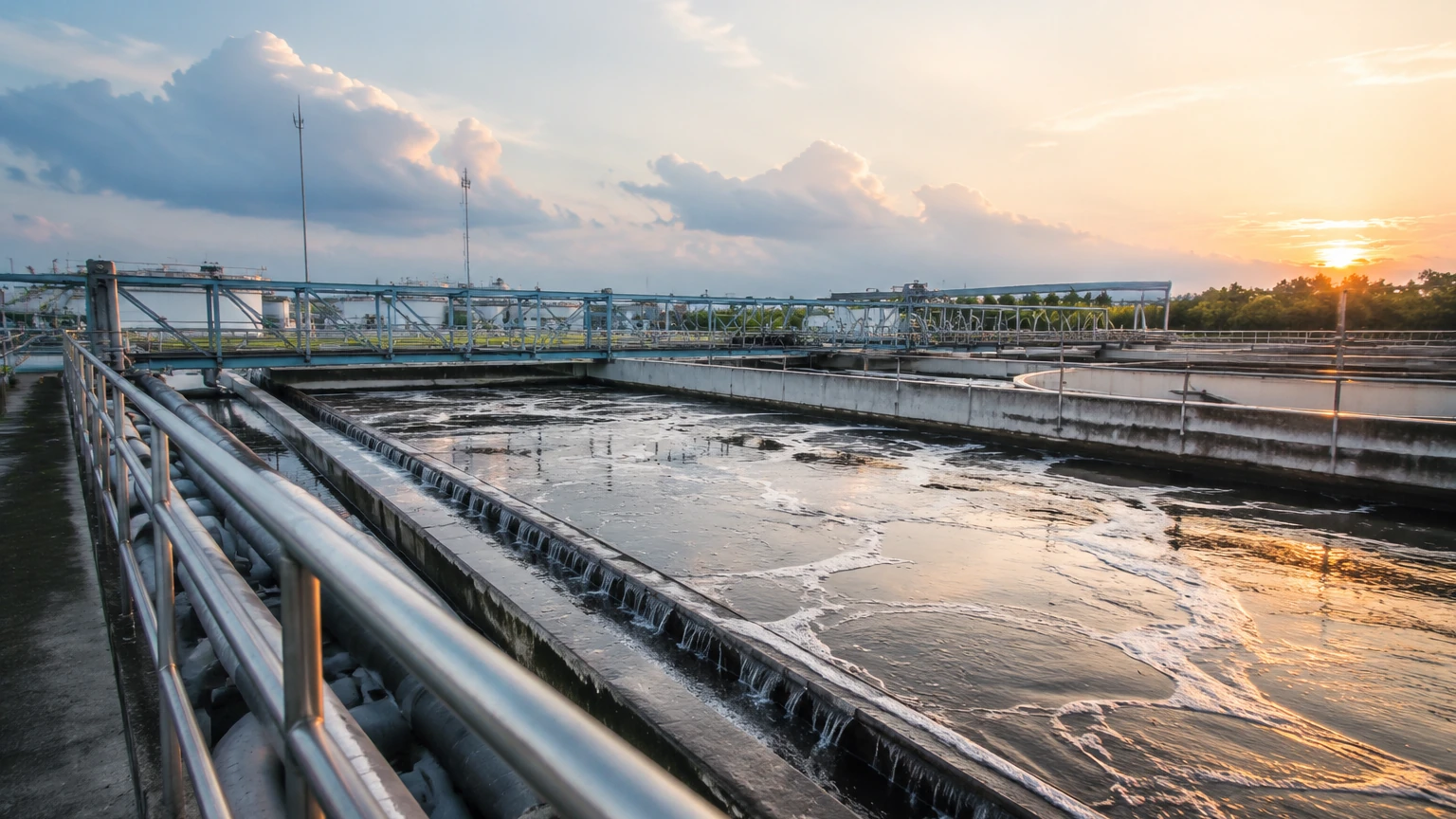

In the realm of industrial process control, wastewater instrumentation serves as the sensory network required to manage complex treatment cycles. Whether handling municipal sewage or aggressive industrial effluent, the ability to monitor levels, flows, and pressures accurately is fundamental to operational safety, environmental compliance, and cost efficiency. As a professional manufacturer, Welk provides a comprehensive range of instruments, including radar level meters, ultrasonic sensors, and hydrostatic transmitters, designed to withstand the rigorous conditions inherent in wastewater environments.
Effective wastewater management relies on selecting the correct technology for specific stages of the treatment process—from primary screening and aeration to sludge thickening and final discharge. This article explores the core measurement principles, selection criteria, and installation best practices for modern wastewater instrumentation.
Core Technologies in Wastewater Instrumentation
The diversity of fluids found in wastewater—ranging from clear water to thick, abrasive sludge—means that no single instrument is universal. Engineers must choose from several primary technologies based on the physical properties of the medium and the geometry of the vessel or channel.
Radar Level Measurement
Non-contact radar level meters have become the gold standard for wastewater instrumentation in challenging environments. These devices emit high-frequency electromagnetic waves (typically in the 26 GHz or 80 GHz range) that reflect off the surface of the liquid. By measuring the time-of-flight or frequency shift of the returned signal, the instrument calculates the distance to the surface.
Radar is particularly effective because it is unaffected by air temperature fluctuations, pressure changes, or the presence of vapors and dust. In wastewater applications, where hydrogen sulfide (H2S) gas and steam are common, radar provides a stable signal where other technologies might fail.
Ultrasonic Level Sensors
Ultrasonic sensors utilize sound waves to determine the level. A transducer emits a mechanical pulse that travels through the air, hits the liquid surface, and returns. While cost-effective and easy to install, ultrasonic wastewater instrumentation is sensitive to environmental factors. Since the speed of sound varies with air temperature and density, integrated temperature compensation is required. Furthermore, heavy foam or surface turbulence can absorb or scatter the sound waves, leading to signal loss.
Hydrostatic Pressure Transmitters
Hydrostatic level measurement is a contact-based method that determines the level by measuring the pressure exerted by the liquid column. A submersible sensor or a flange-mounted transmitter measures the pressure at the bottom of a tank or basin. This method is highly reliable for deep wells and lift stations where surface foam or floating debris would interfere with non-contact sensors. However, it requires the density of the fluid to remain relatively constant for accurate readings.
Magnetic Level Gauges and Switches
For point-level detection or visual monitoring in closed tanks (such as chemical dosing tanks), magnetic level gauges and switches are employed. These instruments use a float containing a magnet that moves with the liquid level, actuating external switches or providing a visual indication via a magnetic flap display.
Measurement Principles and Working Mechanisms
Understanding the physics behind wastewater instrumentation is the first step in successful system design. Each principle has a specific operational envelope that dictates its suitability for different stages of treatment.
The Radar Principle (FMCW vs. Pulse)
Modern radar instruments often use Frequency Modulated Continuous Wave (FMCW) technology. Unlike pulse radar, which measures the time a single pulse takes to return, FMCW emits a continuous signal with a changing frequency. The difference in frequency between the emitted and received signal is proportional to the distance. This allows for extremely high resolution and accuracy, often within ±2 mm (±0.08 in), making it ideal for precision dosing and inventory management.
The Ultrasonic Time-of-Flight
Ultrasonic sensors operate on the "Time-of-Flight" principle. The sensor calculates the distance ($D$) using the formula:
$D = (c \times t) / 2$
where $c$ is the speed of sound and $t$ is the elapsed time. In wastewater applications, the "blocking distance" or "dead zone" is a critical consideration. This is the area immediately below the sensor where it cannot receive a signal. Engineers must ensure the maximum liquid level never enters this zone to prevent measurement errors.
Hydrostatic Pressure Calculation
Hydrostatic sensors follow the law of liquid pressure:
$P = \rho \cdot g \cdot h$
Where $P$ is pressure, $\rho$ (rho) is the liquid density, $g$ is gravity, and $h$ is the height of the liquid. In wastewater instrumentation, it is vital to use a vented cable for submersible sensors. This vent tube allows the sensor to compensate for changes in atmospheric pressure, ensuring the measurement reflects only the weight of the liquid column.
Selection Criteria for Industrial Wastewater Applications
Selecting the right wastewater instrumentation requires a systematic evaluation of the process environment. Engineers should consult the Main Page to review specific product specifications against these criteria:
1. Media Characteristics: Does the wastewater contain high solids, fats, oils, or grease (FOG)? Submersible sensors may require protective cages or non-clogging diaphragms in these environments. If the surface is prone to heavy foam, non-contact radar is generally preferred over ultrasonic.
2. Vessel Geometry: Is the measurement taking place in a narrow pipe, a wide open basin, or a tank with internal obstructions like agitators or ladders? Radar sensors with narrow beam angles (e.g., 80 GHz radar) are better suited for narrow spaces to avoid false echoes.
3. Environmental Conditions: Are there explosive gases present? Wastewater facilities often require ATEX or IECEx certified instrumentation for Zone 0 or Zone 1 environments. Additionally, consider the presence of corrosive gases like H2S, which may necessitate PVDF or PTFE housing materials.
4. Accuracy and Range: While a lift station might only require ±10 mm (±0.4 in) accuracy, a chemical dosing tank for phosphorus removal may require much higher precision. Always match the instrument's range to the maximum possible depth of the basin plus a safety margin.
Practical Selection Table
| Technology | Best For | Limitations | Typical Accuracy |
| :— | :— | :— | :— |
| 80GHz Radar | Narrow tanks, foaming surfaces, chemical storage | Higher initial cost | ±2 mm |
| Ultrasonic | Open channels, clear water basins, sumps | Affected by wind, foam, and steam | ±0.25% of range |
| Hydrostatic | Deep wells, lift stations, vented tanks | Sensitive to density changes | ±0.1% to ±0.5% FS |
| Level Switch | Overfill protection, pump run-dry prevention | Point level only (no continuous data) | N/A |
Installation Best Practices and Engineering Considerations
The performance of wastewater instrumentation is often determined by the quality of the installation. Even the most advanced sensor will fail if positioned incorrectly.
Mounting Position
For non-contact sensors (Radar and Ultrasonic), the instrument should be mounted perpendicular to the liquid surface. Avoid mounting the sensor too close to the tank wall to prevent signal interference. As a rule of thumb, the sensor should be placed at a distance from the wall equal to at least 1/6th of the tank height.
Avoiding Obstructions
Inlet pipes, ladders, and agitators can create "false echoes." While modern software can perform "false signal suppression" to ignore these reflections, it is always better to install the sensor in a clear path. If obstructions are unavoidable, a stilling well or bypass pipe may be used to provide a clean measurement environment.
Cable Management and Protection
For hydrostatic transmitters, cable management is paramount. The vented cable must be protected from sharp bends or kinks that could block the atmospheric vent tube. In outdoor installations, a junction box with a desiccant filter should be used to prevent moisture from entering the vent tube, which can lead to sensor drift or internal corrosion.
Stilling Wells for Turbulence
In aeration tanks or fast-flowing channels, surface turbulence can make level measurement difficult. Installing the sensor inside a stilling well (a vertical pipe with vent holes) dampens the surface movement, providing a stable target for radar or ultrasonic waves.
Common Risks and Mitigation Strategies
Operating wastewater instrumentation involves managing several inherent risks that can compromise data integrity or instrument longevity.
* Fouling and Build-up: Wastewater is inherently dirty. Sludge and grease can build up on sensor faces. Non-contact sensors are less prone to this, but even radar lenses can become coated. Selecting sensors with "self-cleaning" flat-face designs or using air purge systems can mitigate this risk.
* Signal Loss due to Foam: In biological treatment stages, surfactants can create thick layers of foam. Ultrasonic waves are often absorbed by foam, leading to a "loss of echo" error. Radar is significantly more resistant to foam, though extremely dense, dry foam may still attenuate the signal.
* Lightning and Surges: Since many wastewater facilities are located in open areas or feature long cable runs, they are susceptible to lightning strikes. Proper grounding and the use of surge protection modules are essential to protect the electronics.
* Corrosion: The combination of moisture and H2S gas is highly corrosive to standard metals. Ensure that all exposed parts of the wastewater instrumentation, including mounting brackets and cable glands, are made of 316L stainless steel, plastic, or coated with protective materials.
Frequently Asked Questions (FAQs)
Q: How often should wastewater instrumentation be calibrated?
A: Calibration frequency depends on the technology and the criticality of the measurement. Generally, hydrostatic sensors should be checked annually for zero-point drift. Non-contact radar sensors are extremely stable and may only require a verification check every 12 to 24 months.
Q: Can ultrasonic sensors be used in pressurized tanks?
A: Ultrasonic sensors are generally limited to atmospheric or near-atmospheric pressure. As pressure increases, the speed of sound changes, and the transducer's ability to vibrate is impeded. Radar is the preferred choice for pressurized vessels.
Q: What is the benefit of 80 GHz radar over 26 GHz radar?
A: 80 GHz radar has a much narrower beam angle. This allows it to miss internal tank obstructions and measure accurately in smaller nozzles or narrow pipes where a 26 GHz signal might bounce off the walls.
Q: How do I handle measurement in a tank with an agitator?
A: There are two main approaches. First, use a radar sensor with a narrow beam and position it away from the agitator blades. Second, use the instrument's software to "mask" the agitator reflections. If the agitation is severe, a stilling well is the most reliable solution.
Conclusion
Selecting and maintaining wastewater instrumentation requires a deep understanding of both the technology and the specific challenges of the treatment environment. By prioritizing robust measurement principles like radar and hydrostatic pressure, and adhering to strict installation guidelines, operators can ensure long-term reliability. For detailed product configurations and technical support in choosing the right solution for your facility, please visit our Main Page to explore our full range of industrial level measurement instruments.
