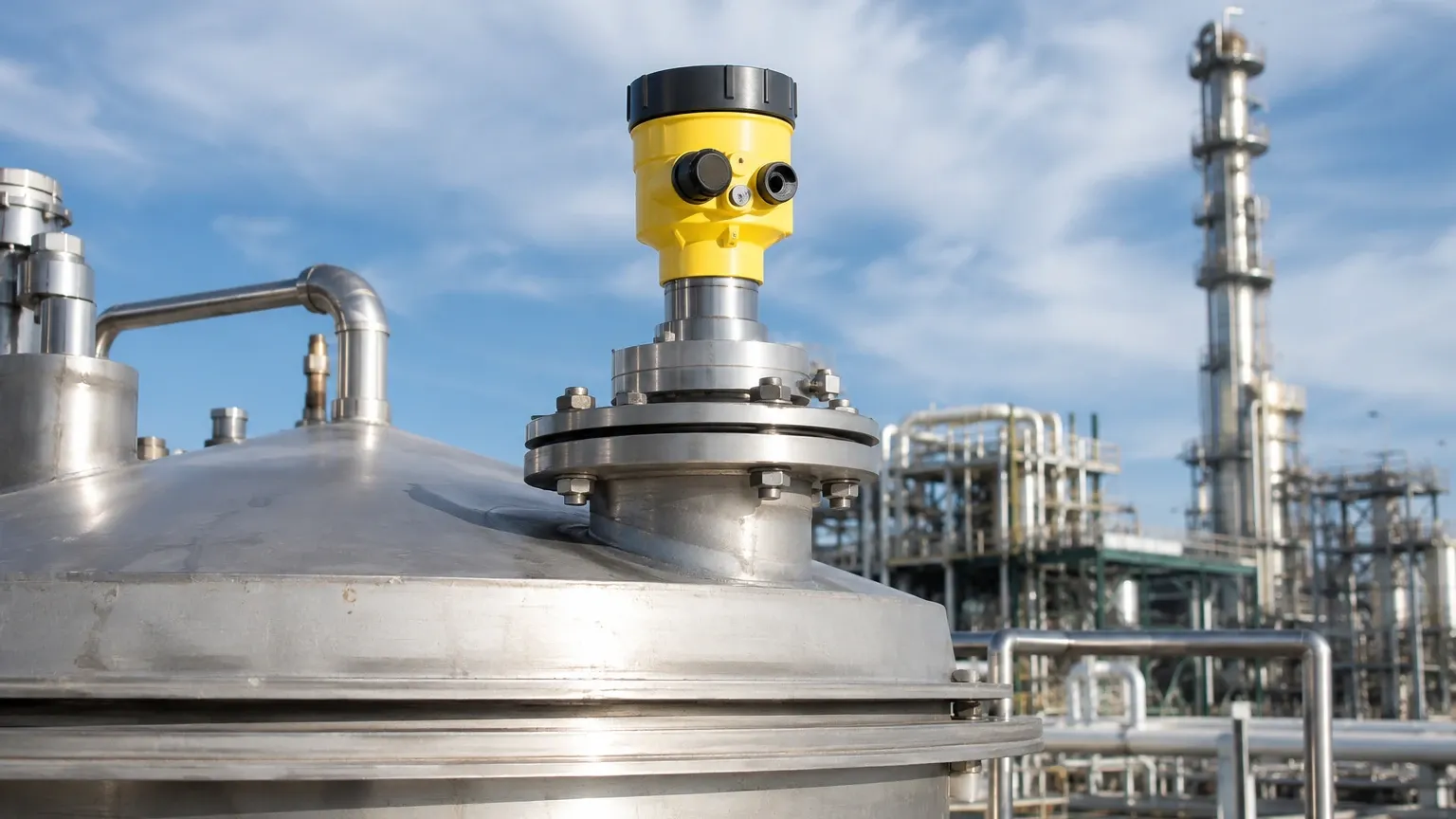

Understanding the Beam Angle Radar Level Transmitter: An Engineering Guide
In the field of industrial process control, the accuracy of level measurement is often the difference between efficient production and costly downtime. Among the various technologies available, Radar Level Meters have become the industry standard for non-contact measurement in challenging environments. However, the success of a radar installation depends heavily on a technical parameter that is frequently misunderstood: the beam angle.
A beam angle radar level transmitter is not merely a sensor that emits a signal; it is a precision instrument whose performance is dictated by the geometry of its signal propagation. Selecting the correct beam angle is critical for avoiding internal tank obstructions, managing signal-to-noise ratios, and ensuring reliable data in narrow or complex vessels.
Measurement Principles of Radar Level Technology
To understand the significance of the beam angle, one must first understand how radar level transmitters function. These devices utilize electromagnetic waves, typically in the microwave spectrum, to measure the distance from the sensor to the surface of a liquid or solid material.
Time of Flight (ToF) and FMCW
Most industrial radar transmitters operate on one of two principles:
1. Pulse Radar (ToF): The device emits a short microwave pulse and measures the time it takes for the signal to travel to the product surface and back. The distance is calculated as $D = (c \times t) / 2$, where $c$ is the speed of light and $t$ is the transit time.
2. Frequency Modulated Continuous Wave (FMCW): The device emits a continuous signal with a constantly changing frequency. The difference in frequency between the emitted signal and the reflected signal is proportional to the distance. FMCW is generally preferred for high-precision applications due to its superior signal processing capabilities.
How the Beam Angle is Formed
The beam angle is defined as the angle at which the power density of the radar signal drops to half of its maximum value (-3dB point). This angle is determined by two primary factors: the frequency of the radar signal and the physical diameter of the antenna.
Mathematically, the beam angle ($\alpha$) is inversely proportional to the product of the frequency ($f$) and the antenna diameter ($D$):
$$\alpha \approx k \cdot \frac{c}{f \cdot D}$$
Where $k$ is a constant related to the antenna type and $c$ is the speed of light. This relationship explains why higher-frequency radars (such as 80 GHz) can achieve much narrower beam angles with smaller antennas compared to lower-frequency (26 GHz or 6 GHz) models.
The Impact of Beam Angle on Performance
The beam angle of a radar level transmitter determines the "footprint" of the signal at any given distance. A narrower beam angle concentrates the electromagnetic energy into a smaller area, which offers several engineering advantages:
* Obstruction Avoidance: In tanks with internal structures like agitators, ladders, heating coils, or reinforcement struts, a narrow beam can be directed to pass between these objects without triggering false echoes.
* Signal Strength: By focusing the energy, a narrow beam provides a stronger reflection from the product surface, which is particularly useful when measuring materials with a low dielectric constant (low Er), such as oils or plastic pellets.
* Installation in Nozzles: Narrower beams are less likely to interact with the sides of tall or narrow mounting nozzles, reducing the risk of "ringing" or near-field interference.
Conversely, a wider beam angle may be necessary in applications where the surface of the material is highly turbulent or inclined (such as in solid silos), as it increases the probability that at least some part of the signal will be reflected back to the sensor.
Selection Criteria and Antenna Types
Choosing the right beam angle radar level transmitter requires a balance between the vessel geometry and the process conditions. The following table provides a general comparison of common configurations used in industrial settings.
Selection Table: Frequency vs. Beam Angle
| Frequency | Antenna Type | Typical Beam Angle | Best Use Case |
| :— | :— | :— | :— |
| 6 GHz | Large Horn (200mm+) | 20° – 30° | Heavy foam, steam, or turbulent liquids in large open basins. |
| 26 GHz | Standard Horn (75mm) | 8° – 12° | General purpose storage tanks with moderate internal obstructions. |
| 26 GHz | Parabolic | 4° – 6° | Long-range measurements in large silos for solids. |
| 80 GHz | Lens Antenna (50mm) | 3° | Narrow vessels, tanks with many internal obstructions, and high-accuracy liquid measurement. |
| 80 GHz | Small Lens (25mm) | 6° – 8° | Small process vessels or chemical dosing tanks with limited mounting space. |
Installation Considerations and Calculations
When engineering a site for a radar level transmitter, the most critical calculation is determining the beam diameter at the lowest point of the measurement range (usually the tank bottom).
Calculating the Beam Footprint
The diameter of the radar footprint ($W$) can be calculated using the following formula:
$$W = 2 \cdot L \cdot \tan(\alpha / 2)$$
Where:
* $L$ = Distance from the sensor to the surface.
* $\alpha$ = Beam angle of the transmitter.
Example: If an 80 GHz transmitter with a 3° beam angle is installed on a 10-meter tall tank, the footprint at the bottom is approximately 0.52 meters. If a 26 GHz transmitter with a 10° beam angle is used for the same tank, the footprint expands to 1.75 meters. If any internal obstruction (like an agitator blade) falls within that 1.75-meter circle, it will create an interference echo.
Nozzle Geometry
The mounting nozzle should be as short as possible. For a beam angle radar level transmitter, the signal must clear the bottom edge of the nozzle to prevent internal reflections. If a narrow beam is used, longer nozzles can be tolerated. However, for wider beams, the nozzle diameter must be large enough to ensure the beam does not hit the nozzle wall before entering the tank.
Application Risks and Limitations
While radar technology is robust, certain factors can limit the effectiveness of the beam:
1. False Echoes: Even with a narrow beam, reflections from tank walls or stationary internals can occur. Most modern Radar Level Meters include "False Echo Suppression" software, which allows the user to map out these static reflections so the transmitter ignores them.
2. Dielectric Constant (Er): The ability of a surface to reflect radar waves depends on its dielectric constant. Materials with $Er < 1.5$ (like liquefied gases) reflect very little energy. In these cases, a narrow beam is mandatory to maximize the returned signal strength.
3. Heavy Foam: While low-frequency radar (6 GHz) can penetrate some foam, high-frequency radar (80 GHz) is often reflected by the top of the foam layer. If the goal is to measure the liquid level *under* the foam, beam angle selection must be paired with appropriate frequency selection.
Buyer’s Checklist: Confirming Specifications
For international buyers and procurement engineers, confirming the following details with the manufacturer ensures the equipment is fit for purpose:
* Vessel Drawings: Provide a top-down and side-view drawing of the tank showing all internal obstructions and the proposed mounting location.
* Material Dielectric: Specify the dielectric constant of the medium. If unknown, identify the chemical composition.
* Process Conditions: State the maximum operating pressure (in bar or MPa) and temperature (in °C).
* Mounting Connection: Confirm the flange size (DN or ANSI) or thread type (G or NPT). Ensure the antenna diameter is smaller than the mounting hole.
* Output Protocol: Specify if 4-20mA HART, Modbus RS485, or Profibus is required for integration into the local PLC/SCADA system.
Frequently Asked Questions (FAQ)
Q: Can I use a narrow beam radar in a tank with a spherical bottom?
A: Yes. In fact, a narrow beam is preferred because it reduces the likelihood of the signal bouncing off the curved walls and creating complex multi-path reflections that can confuse the sensor.
Q: Does the beam angle change if the antenna gets dirty?
A: The physical beam angle remains the same, but buildup on the antenna (especially conductive or moisture-heavy material) can attenuate the signal and distort the wave pattern, leading to measurement errors. In such cases, a lens antenna with a flat face or a PTFE cover is recommended.
Q: Is a narrower beam always better?
A: Not necessarily. In applications with extremely dusty environments or very uneven solid surfaces (like coal or large aggregates), a slightly wider beam may be more effective at capturing a representative average level and receiving reflections from angled surfaces.
Conclusion
The selection of a beam angle radar level transmitter is a technical decision that directly impacts the reliability of industrial process monitoring. By prioritizing a narrow beam angle in complex vessels and ensuring the installation site is free of obstructions within the signal footprint, engineers can achieve high-precision measurement even in the most demanding environments. When in doubt, calculating the beam diameter at the maximum range remains the most effective safeguard against installation failure.
