In the complex landscape of process automation, the integration of reliable instrumentation is a fundamental requirement for operational safety and efficiency. Organizations often look toward specialized entities like Andrews Industrial Controls to navigate the selection of field devices that interface with larger control architectures. For engineers and procurement professionals, understanding the technical nuances of level measurement—ranging from the physics of wave propagation to the mechanical constraints of vessel mounting—is essential for ensuring that the control system receives accurate, real-time data.

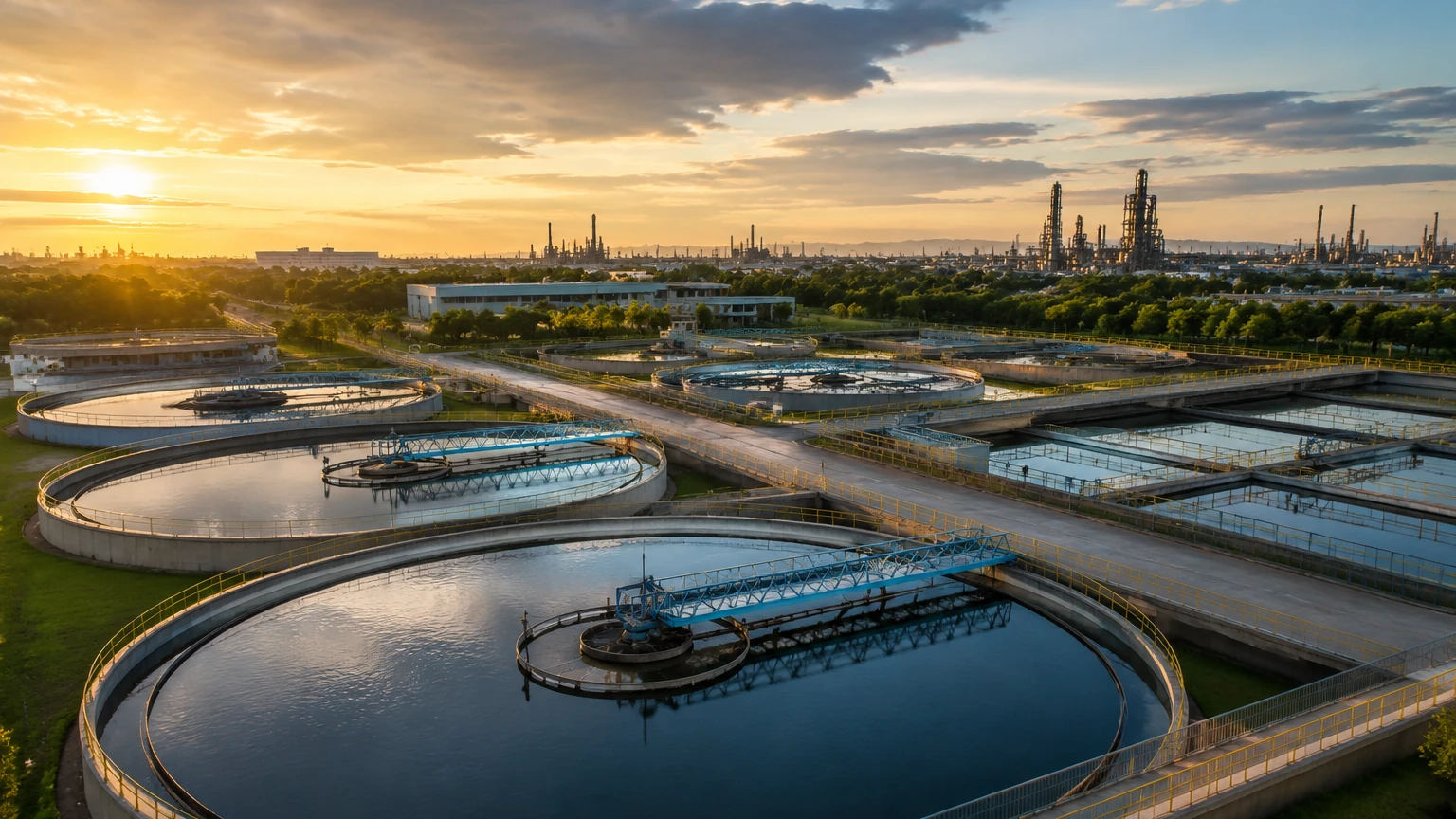

Welk, as a professional manufacturer of industrial level measurement instruments, provides the hardware foundation that supports these industrial control frameworks. Whether the application involves water treatment, chemical processing, or oil and gas production, the choice of technology must align with the physical properties of the media and the environmental conditions of the site.
Core Principles of Level Measurement Technology
Before selecting a device through a distributor or representative such as Andrews Industrial Controls, it is vital to understand the primary measurement principles employed in modern industrial environments. Each technology utilizes different physical properties to determine the level of a liquid or solid.
Radar Level Measurement (ToF)
Radar level meters operate on the Time-of-Flight (ToF) principle. The device emits high-frequency microwave pulses (typically in the 26 GHz or 80 GHz range). These pulses travel at the speed of light, reach the surface of the medium, and are reflected back to the sensor. The distance is calculated based on the time interval between emission and reception. Radar is divided into two main types:
- Non-contact Radar: Ideal for corrosive or high-temperature media where the sensor should not touch the material.
- Guided Wave Radar (GWR): Uses a probe (cable or rod) to direct the microwave, making it highly effective for low dielectric constant liquids or applications with heavy turbulence.
Ultrasonic Level Sensors
Ultrasonic sensors use sound waves rather than electromagnetic waves. The transducer emits an ultrasonic pulse that bounces off the surface of the medium. The sensor measures the time it takes for the echo to return. Because sound speed is affected by air temperature, these sensors typically include integrated temperature compensation. This technology is cost-effective for standard water and wastewater applications but is sensitive to vacuum conditions and heavy foam.
Hydrostatic Level Transmitters
Hydrostatic measurement is based on the principle that the pressure at a specific depth in a liquid is proportional to the height of the liquid column above it. The formula used is $P = \rho \cdot g \cdot h$, where $P$ is pressure, $\rho$ is the density of the liquid, $g$ is gravity, and $h$ is the height. These transmitters are submerged or mounted at the bottom of a tank and are favored for their simplicity and reliability in vented vessels.
Magnetic Level Gauges
Magnetic level gauges utilize buoyancy and magnetic coupling. A float containing a permanent magnet moves with the liquid level inside a bypass chamber. Outside the chamber, a series of magnetic flaps or a follower indicates the level visually. These are often paired with reed switches or transmitters for remote signal output, providing a robust mechanical solution that requires no power for local indication.
Selecting the Right Instrument for Industrial Applications
When evaluating options through Andrews Industrial Controls, the selection process must be driven by application-specific variables. A mismatch between the technology and the process can lead to signal loss, premature sensor failure, or safety incidents.
Key Evaluation Criteria
1. Media Characteristics: Is the liquid corrosive, viscous, or prone to coating? Does it have a low dielectric constant (which affects radar) or varying density (which affects hydrostatic)?
2. Process Conditions: What are the maximum operating pressures (in bar) and temperatures (in °C)? For instance, high-pressure steam can interfere with ultrasonic signals.
3. Vessel Geometry: Are there internal obstructions like agitators, heating coils, or ladders? Non-contact radar requires a clear line of sight, whereas guided wave radar can operate in narrower spaces.
4. Output Requirements: Does the control system require a standard 4-20mA analog signal, or digital protocols like HART, Modbus, or Profibus?
To view a comprehensive range of hardware solutions that meet these criteria, professionals should consult the Main Page for detailed product specifications and application support.
Technical Selection Table
The following table provides a generalized comparison of common level measurement technologies to assist in the initial screening process.
| Technology | Accuracy | Max Range | Media Type | Key Advantage | Limitation |
| :— | :— | :— | :— | :— | :— |
| 80GHz Radar | ±1 mm | 120 m | Liquids/Solids | High precision, small beam angle | Higher initial cost |
| Ultrasonic | ±0.25% | 15 – 30 m | Liquids | Non-contact, cost-effective | Affected by foam/vapor |
| Hydrostatic | ±0.1% – 0.5% | 200 m (H2O) | Liquids | Simple installation, deep wells | Density dependent |
| Guided Wave Radar| ±2 mm | 30 m | Liquids/Interface | Works in foam and turbulence | Physical contact required |
| Magnetic Gauge | ±5 mm | 6 m+ | Liquids | Visual local indication | Mechanical moving parts |
Installation Best Practices for Reliable Data
Even the highest quality instrument from a provider like Andrews Industrial Controls will fail to perform if installation guidelines are ignored. Proper mounting ensures signal integrity and extends the lifespan of the equipment.
Mounting Positions
- Avoid the Center: For radar and ultrasonic sensors in cylindrical tanks, avoid mounting the sensor in the exact center to prevent multiple reflections from the tank walls that can converge and create false echoes.
- Nozzle Height and Diameter: Ensure the nozzle (mounting flange) is not so long that it interferes with the sensor's signal cone. For radar, the sensor horn should ideally extend slightly past the bottom of the nozzle.
- Dead Zones (Blocking Distance): Every sensor has a "dead zone" near the transducer where measurement is impossible. For an ultrasonic sensor, this might be 0.25 m to 0.5 m. Ensure the maximum liquid level never enters this zone.
Environmental Considerations
- Sun Shields: For outdoor installations in high-temperature regions, use sun shields to prevent the electronics from overheating and to minimize temperature-induced drift in ultrasonic sensors.
- Stilling Wells: In tanks with heavy agitation or surface turbulence, guided wave radar or hydrostatic transmitters installed inside a stilling well or bypass pipe can provide a much more stable signal.
Limitations and Environmental Constraints
No single technology is a universal solution. Understanding the boundaries of each method is critical for risk management.
1. Dielectric Constant ($ε_r$): Radar relies on the reflection of microwaves. Materials with very low dielectric constants (like certain oils or liquefied gases) reflect very little energy. In these cases, Guided Wave Radar or high-frequency 80GHz radar is necessary to capture a usable signal.
2. Vapor and Dust: Heavy dust in silos can attenuate ultrasonic signals. Similarly, thick steam in chemical reactors can refract ultrasonic waves. Radar is generally immune to these factors, making it the preferred choice for dusty or steamy environments.
3. Pressure Changes: Hydrostatic sensors measure the weight of the liquid. If a tank is pressurized (not vented to the atmosphere), a differential pressure (DP) transmitter must be used to subtract the headspace pressure from the total bottom pressure.
Frequently Asked Questions (FAQs)
Q: How does Andrews Industrial Controls assist in the integration of level meters?
A: Representatives typically provide the bridge between the manufacturer’s technical capabilities and the end-user’s specific control requirements, helping to specify the correct communication protocols and mounting hardware for a seamless fit into the plant’s DCS or PLC.
Q: Can radar level meters be used in vacuum tanks?
A: Yes. Unlike ultrasonic sensors, which require a medium (air/gas) to transmit sound, radar waves travel through a vacuum without any signal degradation.
Q: What maintenance is required for magnetic level gauges?
A: Maintenance is minimal, but it is recommended to periodically flush the bypass chamber to ensure that sediment or magnetic particles do not interfere with the movement of the float.
Q: Why choose 80GHz radar over 26GHz radar?
A: The 80GHz radar has a much narrower beam angle. This allows it to avoid internal obstructions like agitators and makes it easier to install on tanks with small nozzles or narrow geometries.
Conclusion
Achieving precision in industrial level measurement requires a disciplined approach to technology selection and installation. By understanding the underlying principles of radar, ultrasonic, and hydrostatic measurement, and by working with established channels like Andrews Industrial Controls, engineering teams can implement solutions that reduce downtime and improve process safety. For those seeking to explore specific hardware configurations, the Main Page serves as a vital resource for technical data sheets and expert guidance on Welk’s full range of instrumentation.
