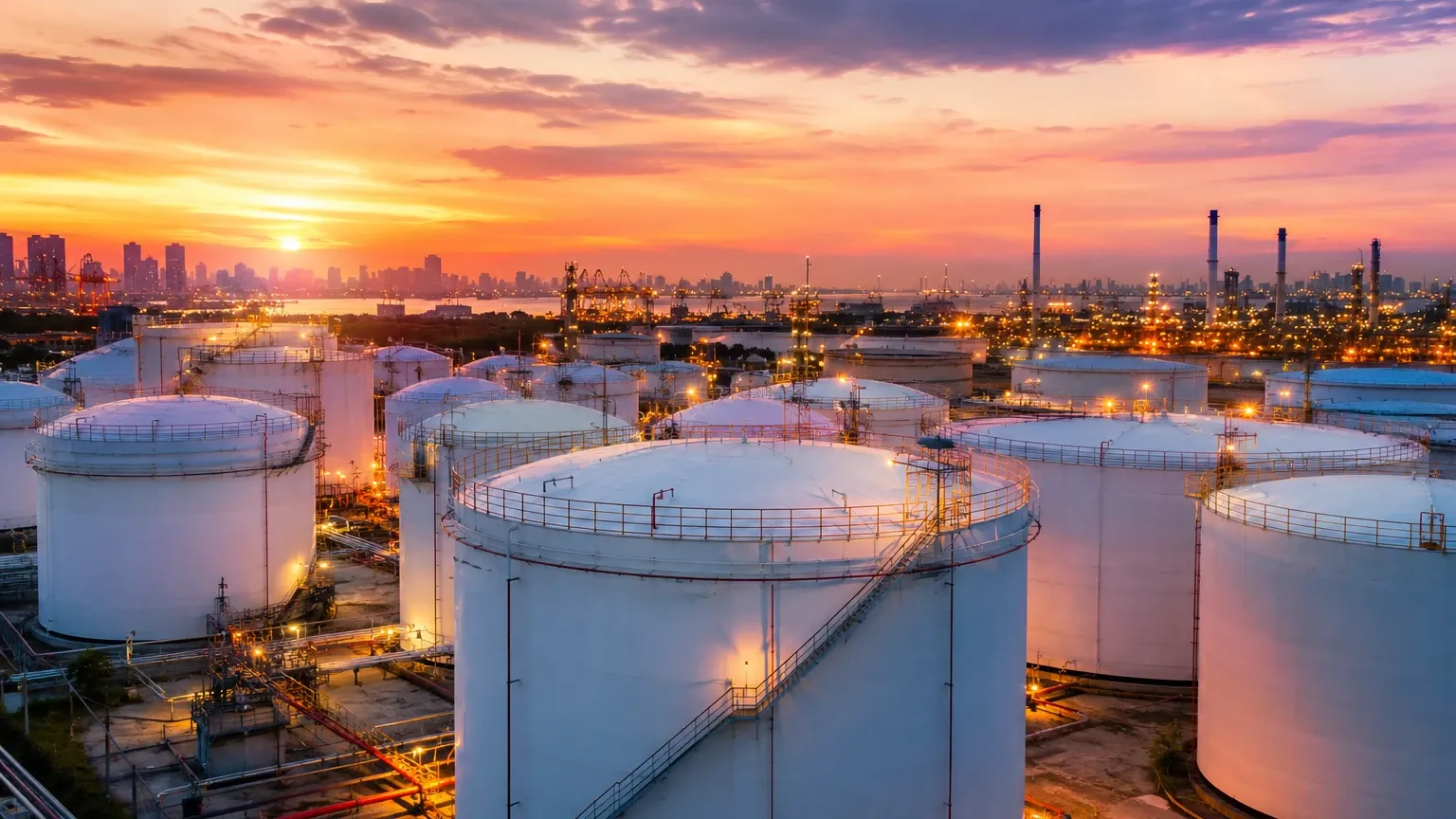

In the industrial storage sector, particularly within petroleum and chemical facilities, the prevention of tank overfills is a critical safety and environmental priority. The American Petroleum Institute (API) Standard 2350, specifically the 5th edition, provides the definitive framework for Overfill Prevention Systems (OPS) for atmospheric storage tanks. This standard shifts the focus from purely hardware-based solutions to a comprehensive management system that integrates personnel, procedures, and technology. Understanding the api 2350 5th edition tank categories overfill prevention requirements is essential for plant engineers and safety managers tasked with mitigating the risks of hazardous spills.
This article examines the technical requirements of API 2350 5th Edition, the specific tank categories defined by the standard, and the selection of level measurement technologies required to maintain compliance and operational safety.
Understanding API 2350 5th Edition: Scope and Objectives
API 2350 applies to atmospheric storage tanks (tanks designed to operate at pressures from atmospheric up to 0.5 psi) that store Class I and Class II liquids. The 5th edition emphasizes a risk-based approach to overfill prevention. Unlike previous iterations that focused heavily on the physical installation of alarms, the current edition requires an Overfill Prevention Process (OPP). This process includes risk assessment, operational procedures, and the maintenance of equipment.
One of the most significant aspects of the 5th edition is the formalization of "Tank Categories." These categories determine the level of automation and redundancy required based on how the tank is operated and whether personnel are present during receiving operations. By categorizing tanks, operators can apply the appropriate level of technology—ranging from manual gauging to fully automated independent shutdown systems.
Measurement Principles for Overfill Prevention
To comply with API 2350, accurate and reliable level measurement is mandatory. Before selecting a category-specific solution, it is important to understand the underlying measurement principles of the instruments used in an OPS.
Radar Level Measurement (Non-Contact)
Radar level meters, such as those manufactured by Welk, use Time of Flight (ToF) technology. The sensor emits a high-frequency microwave signal that reflects off the liquid surface. The time taken for the signal to return is proportional to the distance. Radar is highly favored for API 2350 compliance because it is non-contact, highly accurate (often within ±2 mm), and unaffected by changes in vapor space density or temperature.
Ultrasonic Level Measurement
Ultrasonic sensors function similarly to radar but use sound waves instead of microwaves. While cost-effective for water treatment and some chemical applications, they are generally restricted in petroleum applications where heavy vapors or foam can attenuate the sound signal. However, for Category 1 or 2 tanks containing non-volatile liquids, they remain a viable choice.
Point Level Switches
Point level switches (such as tuning fork or float switches) do not provide continuous measurement but trigger a signal when the liquid reaches a specific height. In an API 2350 context, these are frequently used as the "Independent High-High Alarm" or the trigger for an Automated Overfill Prevention System (AOPS).
Defining the API 2350 5th Edition Tank Categories
The 5th edition classifies tanks into three distinct categories based on the level of instrumentation and the presence of an operator. Each category has specific requirements for how an overfill is detected and prevented.
Category 1: Fully Manual (Attended)
Category 1 tanks are those where the receipt of product is managed entirely by on-site personnel.
- Requirement: The operator must be physically present at the tank or at a local control station during the entire receipt process.
- Instrumentation: These tanks typically rely on manual gauging or local mechanical level indicators.
- Risk: This category carries the highest risk of human error, as there is no automated backup to signal an impending overfill.
Category 2: Semi-Automated
Category 2 tanks are equipped with a remote power-actuated level sensor that transmits data to a control room.
- Requirement: An independent high-level alarm (HLA) is required. This alarm must be separate from the primary level gauging system used for inventory management.
- Personnel: An operator monitors the level from a remote location and is responsible for manually initiating a shutdown (closing valves or stopping pumps) when the alarm sounds.
Category 3: Automated (AOPS)
Category 3 represents the highest level of safety and is often required for high-risk or high-flow rate operations.
- Requirement: These tanks must have an Automated Overfill Prevention System (AOPS). This involves an independent level sensor that triggers an automatic shutdown of the receipt process without human intervention.
- Logic: The system must include a logic solver (like a safety PLC) that is independent of the basic process control system (BPCS).
Selection Criteria for Level Measurement Instruments
Selecting the right instrument depends on the tank category and the chemical properties of the stored liquid. The following table provides a guideline for technology selection based on API 2350 objectives.
| Feature | Radar Level Meter | Ultrasonic Sensor | Magnetic Level Gauge | Tuning Fork Switch |
| :— | :— | :— | :— | :— |
| API 2350 Category | Cat 2 & 3 (Primary/Independent) | Cat 1 & 2 (Non-volatile) | Cat 1 & 2 (Visual) | Cat 2 & 3 (Independent Alarm) |
| Accuracy | High (±2 mm to ±5 mm) | Moderate (±0.25% of range) | Moderate | N/A (Point level) |
| Contact Type | Non-contact | Non-contact | Contact (Float) | Contact |
| Vapor Resistance | Excellent | Poor | Good | Good |
| Maintenance | Low | Low | Moderate | Moderate |
For professional-grade hardware that meets these industrial standards, engineers can Review product options and application support to ensure their chosen instrumentation aligns with the specific safety integrity levels (SIL) required for Category 3 installations.
Installation Considerations and Safety Best Practices
Compliance with api 2350 5th edition tank categories overfill prevention is not achieved by hardware alone; installation geometry and system logic are equally important.
1. Redundancy and Independence: For Category 2 and 3, the overfill alarm system must be independent of the inventory gauging system. This means separate sensors, separate power supplies, and separate cabling. If a radar meter is used for inventory, a tuning fork switch or a second radar meter should be used for the high-high alarm.
2. Stilling Wells: For tanks with internal turbulence or floating roofs, radar meters should be installed within stilling wells to ensure a stable signal and prevent false alarms.
3. Response Time (RT): API 2350 requires operators to calculate the required response time. This is the time needed to successfully terminate the receipt after an alarm is triggered. The sensor must be positioned low enough to allow for this response time before the liquid reaches the "Critical High Level" (CHL).
4. Proof Testing: The standard mandates regular proof testing of the OPS. Modern radar and ultrasonic instruments often feature self-diagnostic capabilities, but physical testing (simulating a high level) is still required to verify the integrity of the entire loop.
Limitations of Overfill Prevention Technologies
While modern instrumentation is highly reliable, engineers must account for specific technical limitations:
- Foam Interference: Heavy foam on the surface of a liquid can absorb ultrasonic signals and scatter radar waves, leading to a "loss of echo." In such cases, guided wave radar or mechanical switches may be necessary.
- Dielectric Constant: Non-contact radar requires a minimum dielectric constant to reflect the signal. Very low dielectric fluids (like certain pure hydrocarbons) may require high-sensitivity radar units.
- Ambient Environment: In extremely cold climates, condensation or ice buildup on the sensor face can interfere with readings. Heating elements or specialized antenna designs (like PTFE drop antennas) are often required.
Frequently Asked Questions (FAQs)
Q: Is API 2350 5th Edition legally mandatory?
A: While API standards are voluntary, they are considered "Recognized and Generally Accepted Good Engineering Practices" (RAGAGEP). In many jurisdictions, regulatory bodies like OSHA or the EPA may cite non-compliance with API 2350 as a safety violation following an incident.
Q: Can I use the same sensor for inventory and overfill protection?
A: For Category 1, yes. However, for Category 2 and 3, API 2350 explicitly requires an independent alarm system. Using a single sensor for both functions creates a single point of failure, which is prohibited for higher-risk categories.
Q: What is the difference between an HLA and an HHLA?
A: A High Level Alarm (HLA) is typically a warning to the operator that the tank is reaching capacity. A High-High Level Alarm (HHLA) is the emergency trigger point that indicates an imminent overfill, requiring immediate manual or automated shutdown.
Q: How often should I calibrate my level meters?
A: Calibration frequency depends on the manufacturer's recommendations and the criticality of the tank. For API 2350 compliance, an annual proof test of the entire overfill prevention loop is a common industry standard.
Conclusion
Adhering to the api 2350 5th edition tank categories overfill prevention standards is a multi-faceted challenge that requires a blend of rigorous management processes and high-precision instrumentation. By correctly identifying the tank category and deploying appropriate technologies—such as the radar and ultrasonic solutions provided by Welk—facilities can significantly reduce the risk of catastrophic overfills.
Whether upgrading a manual Category 1 tank to a semi-automated Category 2 system or implementing a fully independent AOPS for Category 3, the focus must remain on sensor independence, accuracy, and regular system validation. For those seeking to implement these safety standards, visiting the Main Page of an experienced manufacturer is the first step toward selecting the right tools for the job.
