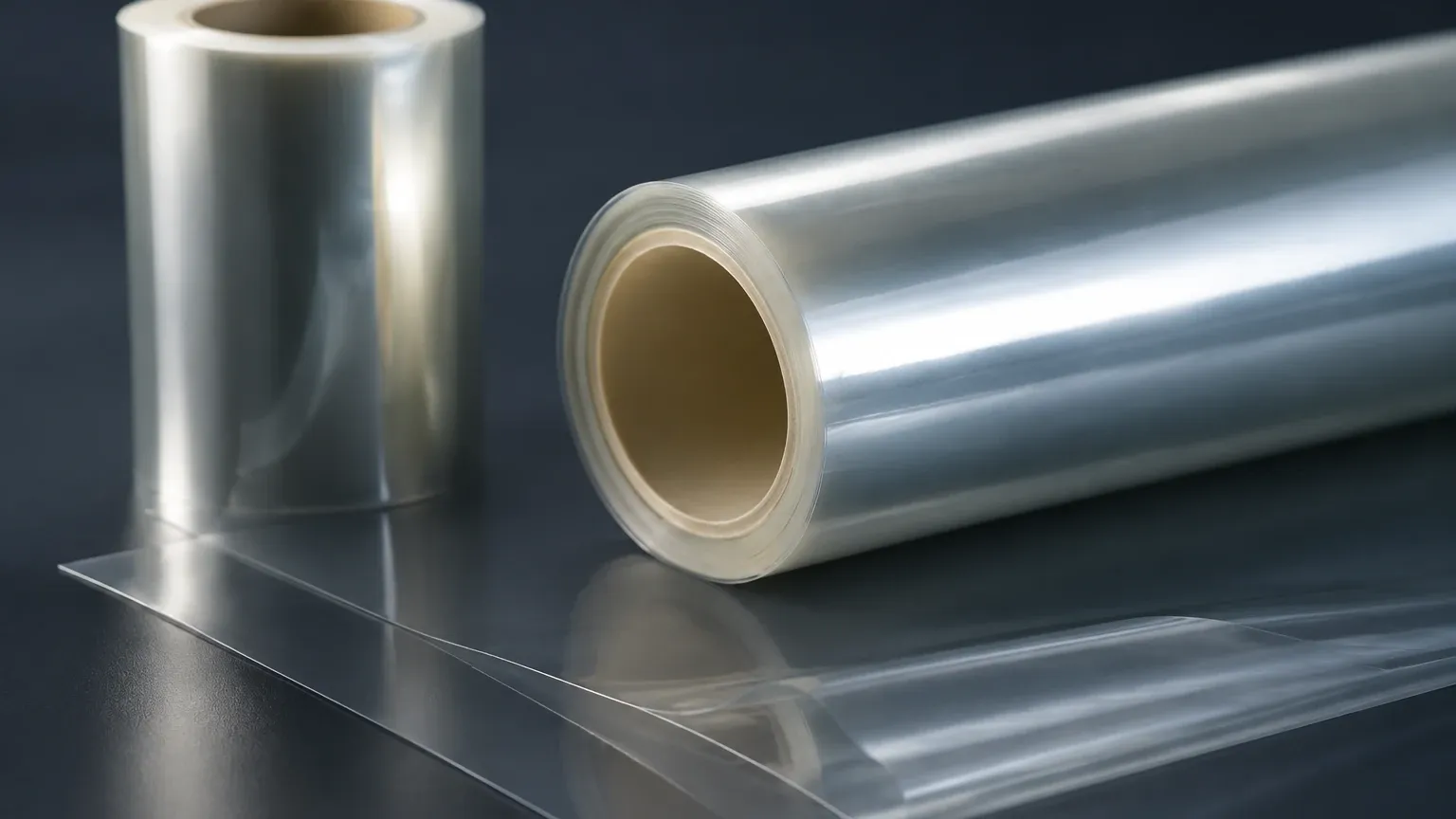

In the field of industrial process control and level measurement, understanding the electrical properties of materials is fundamental to selecting the correct instrumentation. Mylar, a high-performance polyester film made from biaxially-oriented polyethylene terephthalate (BoPET), is widely used across the electronics, packaging, and chemical industries. One of its most critical parameters for engineering applications is the dielectric constant mylar, which directly influences how level measurement sensors—particularly radar and capacitance-based systems—interact with the material.
For engineers and project managers, the dielectric constant (also known as relative permittivity, $\epsilon_r$) determines the strength of the signal reflection in non-contact measurement and the capacitance change in contact-based measurement. This article provides a technical overview of Mylar’s dielectric properties and offers practical guidance on selecting level measurement technologies for environments where Mylar or similar polymers are processed.
Measurement Principles and the Role of Dielectric Constants
Before selecting a level meter, it is essential to understand how the dielectric constant affects sensor performance. The dielectric constant is a dimensionless ratio that represents a material's ability to store electrical energy in an electric field compared to a vacuum (which has a value of 1.0).
Radar Level Measurement
Radar level transmitters, such as those found on the Main Page, operate by emitting electromagnetic pulses or continuous waves. When these waves encounter a change in the dielectric constant—such as the transition from air ($\epsilon_r \approx 1$) to a solid or liquid medium—a portion of the energy is reflected back to the sensor.
The reflection coefficient ($R$) is calculated based on the difference between the dielectric constants of the two media. A higher dielectric constant results in a stronger reflected signal. Materials with a low dielectric constant, like many plastics and films, reflect less energy, requiring more sensitive electronics and sophisticated signal processing to ensure accurate measurement.
Capacitance Level Measurement
Capacitance sensors treat the vessel and the probe as two plates of a capacitor, with the process material acting as the dielectric. As the level of Mylar flakes or pellets rises, the total capacitance of the system changes because the dielectric constant of Mylar is higher than that of air. The sensor converts this change in capacitance into a level reading. Therefore, knowing the exact dielectric constant is vital for initial calibration.
Technical Specifications: Dielectric Constant of Mylar
Mylar is favored in industrial applications due to its high tensile strength, chemical stability, and excellent electrical insulation properties. Its dielectric constant is relatively stable but can vary slightly based on frequency and temperature.
* Typical Value: The dielectric constant of Mylar at room temperature (25°C) and low frequency (1 kHz) is approximately 3.2 to 3.3.
* Frequency Dependence: As frequency increases into the gigahertz range (typical for radar level meters), the dielectric constant may decrease slightly, often settling around 2.8 to 3.0.
* Temperature Effects: Mylar maintains a stable dielectric constant across a wide temperature range, typically from -60°C to 150°C. However, at temperatures approaching its melting point (approximately 254°C), the electrical properties can shift significantly.
* Dissipation Factor: Mylar has a low dissipation factor (typically 0.005 at 1 kHz), making it an efficient insulator with minimal energy loss, which is beneficial for electrical components but requires high-gain radar sensors for level detection.
Selection Guide for Level Measurement Technologies
When measuring the level of Mylar in storage silos, processing hoppers, or winding machines, the choice of technology depends on the physical form of the material (film rolls, shredded flakes, or resin pellets) and the dielectric constant.
| Technology | Suitability for Mylar | Measurement Principle | Key Advantage |
| :— | :— | :— | :— |
| 80GHz FMCW Radar | Excellent | Non-contact electromagnetic wave | High sensitivity; ignores dust and vapor. |
| Guided Wave Radar (GWR) | Good | Contact-based TDR (Time Domain Reflectometry) | Stronger signal return for low-dielectric solids. |
| Ultrasonic Sensors | Moderate | Sound wave reflection | Independent of dielectric constant; sensitive to dust. |
| Capacitance Probes | Good | Change in electrical capacitance | Robust and cost-effective for point level detection. |
| Laser Level Meters | Excellent | Light reflection | Independent of dielectric constant; very narrow beam. |
80GHz Radar vs. 26GHz Radar
For materials with a dielectric constant in the range of 2.0 to 4.0, such as Mylar, 80GHz radar is generally superior to older 26GHz technology. The higher frequency allows for a much smaller beam angle (often as narrow as 3 degrees), which concentrates the energy on the material surface. This concentration compensates for the relatively weak reflection caused by the dielectric constant mylar, ensuring a reliable signal-to-noise ratio even in tall, narrow silos.
Practical Installation Considerations
To achieve accurate measurements when dealing with Mylar, engineers should adhere to the following installation and configuration guidelines:
1. Avoid Obstructions: Because the reflected signal from Mylar is weaker than that from water or metal, it is crucial to ensure the radar beam path is clear of internal tank structures like ladders, agitators, or braces. These can create "false echoes" that are stronger than the actual material surface.
2. Angle of Repose: When measuring Mylar flakes or pellets in a silo, the material will form a cone. The radar should be positioned approximately 1/6th to 1/3rd of the diameter from the tank wall to capture a representative average level and avoid signal scattering off the sloped surface.
3. Dielectric Compensation: Modern radar transmitters allow the user to input the dielectric constant of the medium. Setting this value correctly helps the software's algorithms filter out background noise and track the correct surface peak.
4. Stillwells and Bypass Chambers: For liquid polyester resins or applications where the surface is extremely turbulent, a stillwell can be used to concentrate the radar signal and provide a calm surface for measurement.
Limitations and Challenges
While Mylar is a stable material, certain conditions can challenge level measurement accuracy:
* Signal Attenuation: In very tall silos (over 30 meters), the cumulative loss of signal energy due to the low dielectric constant can lead to "lost echo" errors. High-sensitivity antennas are required in these cases.
* Static Electricity: Mylar is prone to static buildup during pneumatic conveying. Excessive static can interfere with some capacitance-based sensors. In such environments, non-contact radar or ultrasonic sensors are preferred.
* Dust Accumulation: Shredded Mylar can generate significant dust. While radar can penetrate dust, heavy buildup on the sensor lens itself can attenuate the signal. Sensors with a PTFE (Teflon) lens cover or an air-purge connection are recommended to keep the antenna clean.
Comparison with Other Polymers
Understanding where Mylar sits on the dielectric spectrum helps in broader process design. Compared to other common industrial materials, Mylar's dielectric constant is mid-range for plastics:
* PTFE (Teflon): $\epsilon_r \approx 2.1$ (Very difficult for radar)
* Polyethylene (PE): $\epsilon_r \approx 2.3$
* Mylar (BoPET): $\epsilon_r \approx 3.2$
* PVC: $\epsilon_r \approx 3.0 – 4.0$
* Nylon: $\epsilon_r \approx 4.0 – 5.0$
Because Mylar has a higher dielectric constant than PTFE or PE, it is generally easier to measure with standard radar equipment, provided the electronics are of industrial grade.
Frequently Asked Questions (FAQ)
Q: Can I use a standard ultrasonic sensor to measure Mylar levels?
A: Yes, ultrasonic sensors are independent of the dielectric constant because they rely on sound waves. However, they are highly sensitive to dust and air temperature fluctuations. If the Mylar processing involves dust or vacuum conditions, radar is a better choice.
Q: Does the thickness of the Mylar film affect the dielectric constant measurement?
A: The intrinsic dielectric constant of the material remains the same regardless of thickness. However, for a radar sensor, a very thin layer of film on a metal floor may be "invisible" because the radar waves pass through it and reflect off the metal. A minimum material depth is usually required for a stable reading.
Q: How does moisture affect the dielectric constant of Mylar?
A: Mylar has very low moisture absorption. However, if the material surface is coated in liquid water ($\epsilon_r \approx 80$), the radar will measure the water surface rather than the Mylar. If the Mylar is stored outdoors or in high-humidity environments, ensure the storage vessel is sealed.
Q: Is Guided Wave Radar (GWR) better than non-contact radar for Mylar?
A: GWR is excellent for low-dielectric materials because the probe guides the signal directly to the surface, reducing energy dispersion. However, GWR is a contact technology; if the Mylar is in large film rolls or if the mechanical pull of flakes could damage a cable probe, non-contact 80GHz radar is preferred.
Conclusion
The dielectric constant mylar is a pivotal factor in ensuring the reliability of industrial level measurement systems. With a value typically around 3.2, Mylar provides sufficient reflection for modern high-frequency radar and enough capacitance change for sensitive probes. By selecting the appropriate frequency and antenna design, and by accounting for the physical state of the material, engineers can implement robust level control solutions that minimize downtime and optimize inventory management. For further technical specifications and to review various product options and application support, professionals are encouraged to consult the Main Page for detailed instrumentation data.
