Lng Truck Loading Skid
Liquefied Natural Gas (LNG) represents a critical component of the global energy transition, requiring specialized infrastructure for transport and distribution. At the heart of downstream LNG logistics is the lng truck loading skid. These modular, pre-engineered systems are designed to facilitate the safe, accurate, and efficient transfer of LNG from storage tanks into cryogenic tanker trucks. Because LNG is stored at cryogenic temperatures—typically around -162°C (-260°F)—the instrumentation and structural components of a loading skid must meet rigorous thermal and safety standards.
For engineers and facility managers, selecting the right instrumentation for a loading skid is not merely a matter of flow rate; it involves complex level measurement, pressure regulation, and phase management. This guide explores the technical architecture of LNG loading skids, focusing on the measurement principles that ensure custody transfer accuracy and operational safety.
The Role of the LNG Truck Loading Skid in the Supply Chain

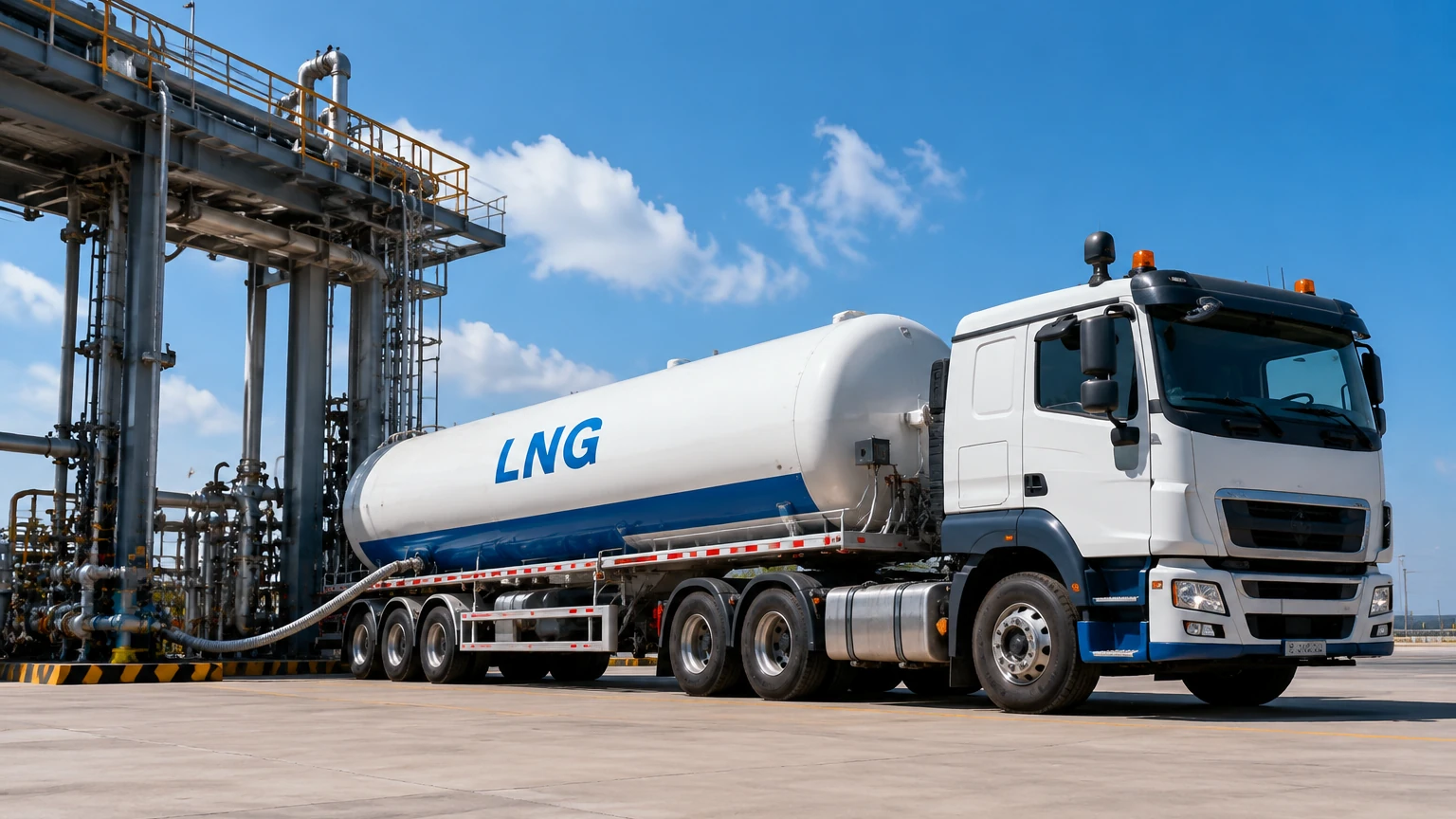

An LNG truck loading skid serves as the primary interface between a stationary storage facility and a mobile transport unit. Its primary functions include:
1. Custody Transfer: Accurately measuring the mass or volume of LNG transferred for commercial billing.
2. Safety Management: Monitoring for leaks, ensuring proper grounding, and managing overpressure events.
3. Vapor Recovery: Managing Boil-Off Gas (BOG) to prevent atmospheric venting and maintain tank pressure.
4. Process Control: Automating the loading sequence to prevent overfilling and ensure thermal stability.
Given the hazardous nature of methane and the extreme cold involved, these skids are typically designed as "plug-and-play" units, factory-tested to minimize on-site installation errors.
Measurement Principles in Cryogenic Environments
Effective operation of an lng truck loading skid relies on precise instrumentation. Before selecting a skid configuration, it is essential to understand how level and flow are measured in cryogenic conditions.
Radar Level Measurement
Frequency Modulated Continuous Wave (FMCW) radar is the preferred method for non-contact level measurement in LNG applications. The radar transmitter emits a high-frequency signal that reflects off the liquid surface. In LNG tanks, the dielectric constant of the liquid is low (approximately 1.7), which requires high-sensitivity radar units. Radar is ideal because it is unaffected by the density changes or the heavy vapor layers common in cryogenic storage.
Hydrostatic Level Measurement
Hydrostatic transmitters measure the pressure exerted by the liquid column. In LNG applications, differential pressure (DP) transmitters are used to compensate for the high-pressure vapor space above the liquid. While cost-effective, this method requires precise knowledge of the liquid's density, which can fluctuate with temperature and composition.
Magnetic Level Gauges
For local visual indication, magnetic level gauges are often installed on the skid’s surge tanks or secondary separators. A float containing a magnet follows the liquid level, flipping bicolored flaps on an external scale. These can be equipped with reed switches or transmitters for remote monitoring, providing a robust mechanical backup to electronic sensors.

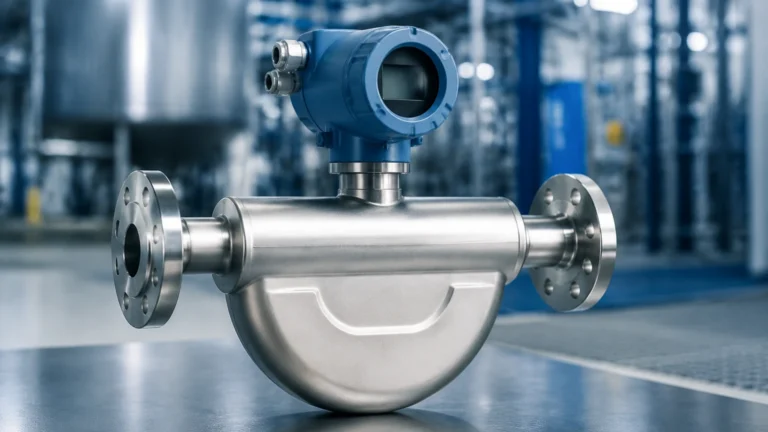

Coriolis Mass Flow Measurement
For the actual loading process, Coriolis meters are the industry standard. They measure mass flow directly, which is critical for LNG because the volume changes significantly with minor temperature fluctuations. By measuring the mass, the energy content of the load can be calculated more accurately for billing purposes.
Key Components of an LNG Truck Loading Skid
A standard skid is a complex assembly of mechanical and electronic components. For those evaluating equipment, visiting a specialized Main Page for industrial instrumentation can provide insights into the specific sensors required for these assemblies.
* Loading Arms or Hoses: Insulated flexible connections that handle the liquid and vapor return lines.
* Flow Control Valves: Cryogenic-rated valves that regulate the loading speed to prevent "water hammer" and thermal shock.
* Mass Flow Meters: Typically Coriolis-based, used for high-precision custody transfer.
* Level Switches: Independent high-level alarms (often tuning fork or ultrasonic) that provide a redundant safety layer to prevent tank overfill.
* Gas Detectors: Strategically placed sensors to detect methane leaks within the skid perimeter.
* Batch Controller: The "brain" of the skid, which interfaces with the flow meter and valves to execute the loading recipe.
Selection Criteria for LNG Loading Instrumentation
When specifying a lng truck loading skid, engineers must balance accuracy with long-term reliability. The following table compares common level measurement technologies used in conjunction with loading operations.
| Technology | Accuracy | Maintenance Needs | Primary Advantage | Limitations |
| :— | :— | :— | :— | :— |
| FMCW Radar | ±2 mm | Low | Non-contact; unaffected by vapor | Requires low dielectric sensitivity |
| Coriolis Meter | ±0.1% | Medium | Direct mass measurement | High initial cost; sensitive to vibration |
| Differential Pressure| ±0.5% | High | Simple installation | Density-dependent; requires impulse lines |
| Magnetic Gauge | ±5 mm | Low | No power required for local view | Moving parts can freeze if moisture enters |
| Ultrasonic Switch | N/A | Low | High-level redundancy | Sensitive to heavy foaming or turbulence |
Installation and Engineering Considerations
Installing an lng truck loading skid requires adherence to strict cryogenic engineering standards, such as NFPA 59A or EN 1473.
1. Thermal Insulation and Cold Conservation
All liquid-carrying lines must be vacuum-jacketed or insulated with high-density polyurethane foam. Failure to insulate properly leads to excessive Boil-Off Gas (BOG), which reduces the efficiency of the loading process and can cause pressure buildup that triggers safety relief valves.
2. Grounding and Bonding
Static electricity is a major risk during the transfer of hydrocarbons. The skid must include a grounding verification system that prevents the start of the loading process unless a low-resistance path to ground is confirmed for the truck.
3. Piping Stress and Thermal Expansion
Cryogenic piping will contract significantly when cooled from ambient temperatures to -162°C. The skid design must incorporate expansion loops or stainless steel bellows to absorb these dimensional changes without stressing the flange connections or instrument housings.
4. Zero-Leakage Requirements
Given the environmental impact of methane, "low-E" (low emission) valves and high-integrity flange gaskets (such as spiral-wound stainless steel with graphite filler) are mandatory. Level sensors and flow meters should have secondary containment seals to prevent gas migration into the electronic housings.
Operational Challenges and Limitations
While modern lng truck loading skid designs are highly automated, they are not without limitations.
* Cool-down Time: A skid cannot be used at full capacity immediately. It must undergo a controlled "cool-down" phase where a small amount of LNG is circulated to lower the temperature of the pipes gradually. Rapid cooling can cause metal fatigue or seal failure.
* Two-Phase Flow: If the LNG begins to boil within the flow meter, the presence of gas bubbles (two-phase flow) will cause significant errors in mass flow measurement. Maintaining sufficient backpressure is essential to keep the LNG in its liquid state.
* Component Icing: Atmospheric moisture will instantly freeze upon contact with uninsulated cryogenic surfaces. This ice buildup can jam mechanical linkages or obscure the sight glass of magnetic level gauges if they are not equipped with frost-free extensions.
Maintenance and Calibration
To maintain the accuracy required for custody transfer, the instrumentation on an lng truck loading skid requires periodic validation.
1. Flow Meter Proving: Coriolis meters should be verified using a master meter or a gravimetric weigh scale system at least once a year.
2. Level Sensor Verification: Radar and hydrostatic sensors should be checked against the truck's internal level gauges to ensure consistency.
3. Valve Seat Leakage: Cryogenic valves should be tested for "tight shut-off" (TSO) to ensure that LNG does not leak into the loading arm when the system is idle.
4. Calibration of Gas Detectors: Methane sensors require quarterly calibration to ensure they respond correctly to lower explosive limit (LEL) concentrations.
Frequently Asked Questions (FAQs)
Q: Why is mass flow preferred over volume flow for LNG loading?
A: LNG density changes significantly with temperature and pressure. A volume of 1000 liters at -160°C contains more energy than 1000 liters at -158°C. Mass flow measurement, typically via Coriolis meters, provides a constant value regardless of these physical changes, making it the only fair method for commercial transactions.
Q: Can radar level meters work through the thick vapor in an LNG tank?
A: Yes. High-frequency FMCW radar (e.g., 80 GHz) is designed to penetrate the nitrogen and methane vapors found in the ullage space of LNG tanks. However, the antenna must be designed to prevent ice formation, often using a PTFE or ceramic seal.
Q: What is the purpose of the vapor return line on a loading skid?
A: As LNG enters the truck tank, it displaces the gas already inside. Additionally, some LNG boils off due to the heat in the truck's tank. The vapor return line carries this gas back to the facility's BOG header or reliquefaction plant, preventing pressure buildup and environmental venting.
Q: How do you prevent overfilling the truck?
A: Overfill protection is usually a three-tier system. First, the batch controller stops the flow based on the flow meter's reading. Second, a high-level switch on the skid or truck sends a signal to close the emergency shutdown (ESD) valve. Third, the truck’s internal mechanical relief valves provide a final fail-safe against overpressure.
Conclusion
The lng truck loading skid is a sophisticated piece of industrial equipment that demands high-precision instrumentation to handle the challenges of cryogenic liquids. By integrating advanced level measurement, such as FMCW radar and magnetic gauges, with high-accuracy Coriolis flow meters, operators can ensure both the safety and the profitability of their LNG distribution networks.
When designing or procuring a skid, it is vital to work with manufacturers who understand the nuances of cryogenic fluid dynamics. For more information on the specific sensors and transmitters used in these applications, engineers can consult the technical resources available at the Main Page of leading level measurement providers. Proper selection, installation, and maintenance of these systems are the cornerstones of a reliable LNG infrastructure.
