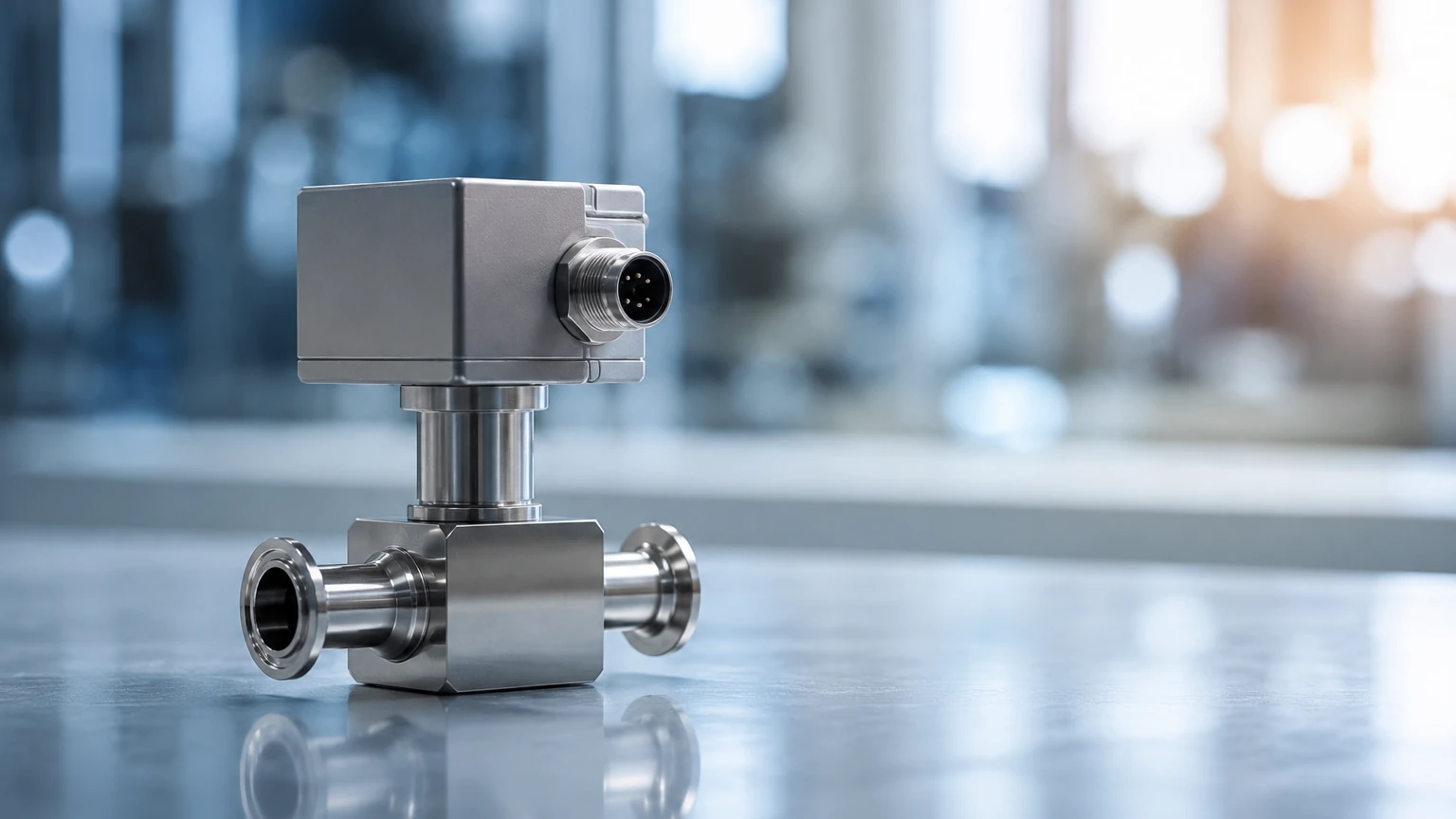

Precision Thermal Mass Flow Controller
Precision Thermal Mass Flow Controller
In modern industrial automation and process control, the ability to measure and regulate gas flow with high accuracy is essential. A precision thermal mass flow controller (MFC) is a sophisticated instrument designed to measure and control the mass flow rate of gases. Unlike volumetric flow meters, which are sensitive to changes in temperature and pressure, a precision thermal mass flow controller provides a direct measurement of mass, making it a critical component in applications ranging from semiconductor manufacturing to chemical vapor deposition and laboratory research.
Understanding the technical nuances of these devices is vital for engineers and procurement professionals who must ensure process stability and product quality. This guide explores the underlying principles, selection criteria, and installation best practices for precision thermal mass flow controllers.
Measurement Principles of Thermal Mass Flow
Before selecting a controller, it is important to understand how the measurement is achieved. Thermal mass flow technology relies on the thermal properties of the gas—specifically its heat capacity—to determine the flow rate. There are two primary methods used in precision instruments: the capillary tube (thermal bridge) method and the immersible (insertion) method. For high-precision control applications, the capillary tube method is most common.
The Capillary Tube Method
In this configuration, a small portion of the total gas flow is diverted through a bypass into a narrow capillary tube. This tube is equipped with two resistance temperature detector (RTD) coils. A heating element applies a constant amount of heat to the tube. When the gas is stationary, the heat is distributed evenly between the two sensors.
As gas begins to flow, it carries heat from the upstream sensor to the downstream sensor. This creates a temperature differential ($ΔT$) between the two points. The mass flow rate is directly proportional to this temperature difference. Because the measurement is based on the molecular mass of the gas and its specific heat, the reading remains accurate regardless of fluctuations in line pressure or ambient temperature, provided the gas composition remains constant.
Constant Temperature Differential
Another approach, often used in industrial environments, involves maintaining a constant temperature difference between a heated sensor and a reference sensor. The electrical power required to maintain this $ΔT$ is proportional to the mass flow rate. This method is robust and offers a wide turndown ratio, often exceeding 50:1 or even 100:1.
Key Components of a Precision Thermal Mass Flow Controller
A precision thermal mass flow controller is more than just a meter; it is a closed-loop system. It typically consists of four main components integrated into a single housing:
1. The Flow Sensor: As described above, this component provides the primary measurement signal.
2. The Bypass: In most industrial MFCs, the sensor only measures a fraction of the flow. The bypass is a precision-engineered element that ensures a constant ratio between the sensor flow and the main flow across the device's entire operating range.
3. The Control Valve: Usually a proportional solenoid valve or a piezo-actuated valve. This component adjusts the flow based on the signal from the controller.
4. The Electronics/PID Controller: The "brain" of the device. It compares the actual flow signal from the sensor against the user-defined setpoint and adjusts the control valve accordingly to eliminate the error.
Technical Evaluation Criteria
When evaluating a precision thermal mass flow controller for a specific application, several technical parameters must be scrutinized to ensure the device meets the process requirements.
Accuracy and Repeatability
Accuracy is typically expressed as a percentage of full scale (% FS) or a percentage of the actual reading (% Rd). High-precision models often offer accuracies of ±0.5% to ±1% of the setpoint. Repeatability, which is the ability of the instrument to provide the same output for the same flow conditions over time, is often even more critical for process consistency, with values typically around ±0.2% FS.
Response Time
In many B2B applications, such as rapid gas switching in semiconductor etching, the speed at which the controller reaches its setpoint is vital. A precision thermal mass flow controller may offer response times (settling times) of less than 1 second, and in some high-end models, as low as 50 to 100 milliseconds.
Material Compatibility
The wetted materials of the controller must be compatible with the gas being measured. While stainless steel (316L) is standard, corrosive gases like Chlorine ($Cl_2$) or Hydrogen Chloride ($HCl$) may require specialized alloys like Hastelloy or specific elastomeric seals (e.g., Kalrez, Viton, or Neoprene).
Pressure Drop
Every flow component introduces a pressure drop ($ΔP$) into the system. In low-pressure applications, such as vacuum processes, selecting a controller with a low-pressure drop bypass is essential to maintain sufficient flow rates.
Selection Table: Performance Comparison
The following table provides a general comparison of specifications found in different grades of thermal mass flow controllers.
| Feature | Standard Industrial MFC | Precision Laboratory MFC | High-Speed Semiconductor MFC |
| :— | :— | :— | :— |
| Accuracy | ±1.0% to ±1.5% FS | ±0.5% to ±0.8% Rd | ±1.0% of Setpoint |
| Repeatability | ±0.5% FS | ±0.2% FS | ±0.2% FS |
| Response Time | 1.0 – 3.0 seconds | 0.5 – 1.0 seconds | < 0.5 seconds |
| Turndown Ratio | 50:1 | 100:1 | 100:1 |
| Communication | Analog (4-20mA/0-5V) | RS-485 / Modbus | EtherCAT / DeviceNet |
| Wetted Materials | 316 SS / Viton | 316L SS / Kalrez | Electropolished 316L / Metal Seals |
Installation Considerations and Best Practices
To maintain the performance of a precision thermal mass flow controller, proper installation is mandatory. Even the most accurate instrument will provide unreliable data if installed incorrectly.
Gas Cleanliness and Filtration
Thermal mass flow sensors, particularly those using capillary tubes, are sensitive to particulates and moisture. Contamination can clog the bypass or the sensor tube, leading to drift or total failure. It is a standard engineering practice to install a 5 to 10-micron filter upstream of the MFC.
Mounting Orientation
While many modern digital controllers can be mounted in any orientation, they are typically factory-calibrated in a horizontal position. Mounting a device vertically can introduce a small "chimney effect" (natural convection) within the sensor tube, which may cause a zero-offset error. If vertical installation is required, the device should be zeroed in that specific orientation at process pressure.
Straight Pipe Runs
Unlike some volumetric flow technologies, thermal mass flow controllers are relatively insensitive to flow profiles because the bypass and sensor arrangement tends to condition the flow. However, for maximum precision, it is still recommended to have at least 5 to 10 diameters of straight pipe upstream of the device to minimize turbulence from elbows or valves.
Leak Integrity
In processes involving toxic, flammable, or high-purity gases, leak integrity is paramount. Precision controllers often undergo helium leak testing to rates of $1 × 10^{-9}$ atm-cc/sec. Ensure that all fittings (typically compression fittings or VCR face-seal fittings) are tightened to the manufacturer's specifications.
Limitations and Common Risks
Despite their versatility, precision thermal mass flow controllers have limitations that must be managed:
* Gas Composition Sensitivity: Since the measurement depends on the specific heat of the gas, the controller is calibrated for a specific gas or gas mixture. If the gas composition changes, the reading will be inaccurate unless a conversion factor is applied or the device is recalibrated. Many modern digital MFCs include multi-gas libraries to mitigate this.
* Moisture and Condensation: If the gas reaches its dew point inside the controller, liquid droplets can cause significant measurement errors and potentially damage the electronics if the sensor is not designed for wet environments.
* Zero Drift: Over time, the zero point of the sensor may shift due to temperature cycles or sensor aging. Periodic zero-adjustment (with zero flow at process pressure) is a necessary maintenance task.
Maintenance and Calibration Requirements
To ensure long-term accuracy, a precision thermal mass flow controller should be part of a regular calibration program. In industrial settings, an annual calibration check is standard. This can be performed using a primary standard flow calibrator or by returning the unit to the manufacturer.
For those managing complex systems that integrate both flow and level measurement, it is useful to consult comprehensive resources. For broader information on industrial measurement technologies and to Review product options and application support, engineers can refer to specialized manufacturer documentation to ensure all instruments in the process loop are compatible.
Frequently Asked Questions (FAQ)
Q: Can a thermal mass flow controller be used for liquids?
A: Generally, no. Standard precision thermal mass flow controllers are designed specifically for gases. While there are thermal mass flow meters for liquids, they use different sensor geometries and control valve designs.
Q: What is the difference between a flow meter and a flow controller?
A: A flow meter only measures the rate of flow. A flow controller includes an integrated control valve and electronics to maintain the flow at a specific setpoint provided by the user.
Q: Do I need to recalibrate the MFC if I change the gas?
A: Yes, or you must use a conversion factor. Because different gases have different thermal properties, a controller calibrated for Nitrogen will not read correctly for Argon without adjustment. Many digital controllers now allow you to select the gas type from a pre-loaded menu.
Q: How do I handle high-pressure applications?
A: Ensure the MFC body and seals are rated for the maximum system pressure. High-pressure applications may also require specialized control valves to handle the higher differential pressure across the valve seat.
By following these engineering guidelines and carefully selecting a precision thermal mass flow controller based on the specific needs of the application, operators can achieve high levels of process control and efficiency.
