Effective waste management in industrial, commercial, and large-scale residential facilities relies heavily on the continuous monitoring of septic systems. A septic tank level indicator is not merely a convenience; it is a critical component of environmental safety and operational efficiency. Failure to accurately monitor these levels can result in overflows, groundwater contamination, and catastrophic system failures that require expensive remediation. This article explores the technical principles, selection criteria, and installation requirements for professional-grade septic level measurement solutions.
Understanding the Septic Tank Environment

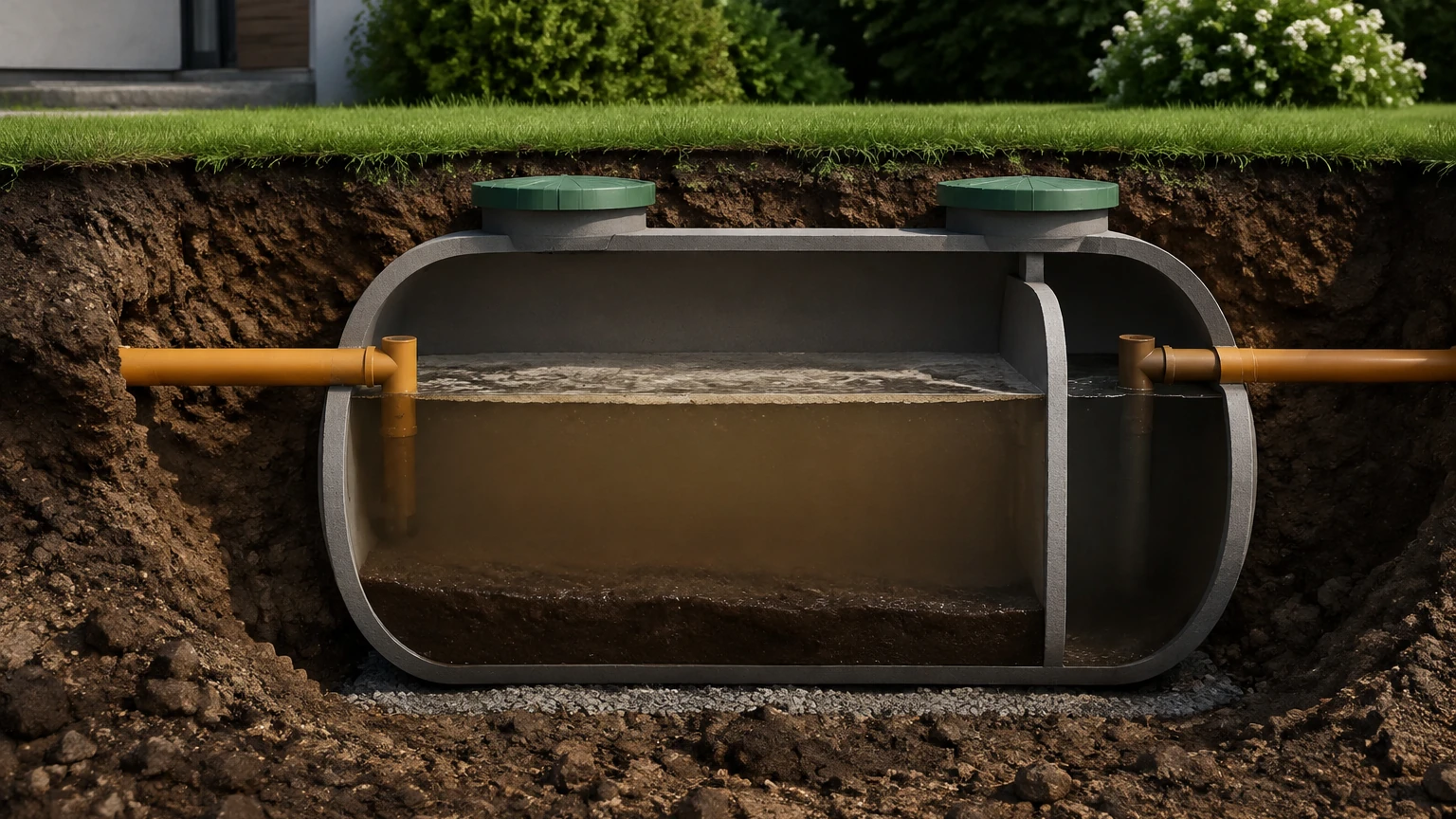

Before selecting a septic tank level indicator, it is essential to understand the unique challenges of the medium being measured. Septic tanks are complex biological environments characterized by three distinct layers:
1. Scum Layer: The top layer consisting of fats, oils, and grease (FOG) that float on the surface.
2. Effluent Layer: The middle layer of relatively clear liquid waste.
3. Sludge Layer: The bottom layer composed of heavier solids that have settled over time.
From a measurement perspective, this stratification creates a harsh environment. The presence of corrosive gases, such as hydrogen sulfide (H2S), can degrade sensitive electronic components. Furthermore, the varying density and the potential for crust formation on the scum layer can interfere with certain types of sensing technologies. Therefore, industrial-grade indicators must be robust, corrosion-resistant, and capable of providing reliable data despite these physical obstacles.
Measurement Principles for Septic Tank Level Indicators
Several technologies are employed to monitor septic levels, each operating on different physical principles. Choosing the right one depends on the specific requirements of the application, such as accuracy needs, tank depth, and budget constraints.
1. Ultrasonic Level Measurement (Non-Contact)
Ultrasonic sensors are among the most popular choices for septic systems. These devices emit high-frequency sound waves that travel through the air, reflect off the surface of the liquid (or scum layer), and return to the sensor. The time taken for the pulse to return is directly proportional to the distance, which is then converted into a level reading.
* Advantages: Non-contact measurement means the sensor does not touch the waste, reducing maintenance and fouling risks.
* Considerations: These sensors have a "dead zone" (typically 0.2m to 0.5m) near the transducer face where measurements cannot be taken. They can also be affected by thick foam or heavy steam.
2. Hydrostatic Pressure Measurement (Contact)
Hydrostatic level transmitters measure the pressure exerted by the liquid column above the sensor. Since pressure is directly proportional to the height of the liquid and its density, the transmitter provides a continuous level signal. For septic applications, these sensors are usually submersible and placed near the bottom of the tank.
* Advantages: Highly accurate for deep tanks and unaffected by surface foam or turbulence.
* Considerations: The sensor must be constructed from chemically resistant materials (like 316L stainless steel or PTFE) to withstand the corrosive nature of the sludge.
3. Radar Level Measurement (Non-Contact)
Radar indicators use high-frequency microwave pulses rather than sound waves. Like ultrasonic sensors, they measure the time-of-flight of the signal. However, radar is generally more robust in extreme conditions.
* Advantages: Unaffected by temperature fluctuations, vacuum, high pressure, or heavy vapors/gases like H2S. They offer higher precision (often within ±2mm).
* Considerations: Higher initial investment compared to ultrasonic or float-based systems.
4. Float and Magnetic Level Switches
For basic high-level or low-level alarms, mechanical float switches are often used. These involve a buoyant element that rises and falls with the liquid, triggering a microswitch or moving a magnet to indicate a specific level threshold.
* Advantages: Simple, cost-effective, and easy to integrate into basic alarm panels.
* Considerations: They provide point-level detection rather than continuous monitoring and are prone to "hang-ups" if grease or solids build up on the float mechanism.
Technical Selection Criteria
Selecting a septic tank level indicator requires a systematic evaluation of the facility's needs. Engineers should consult the Main Page of specialized manufacturers to compare detailed specifications. The following table provides a general comparison of the primary technologies used in septic applications:
| Feature | Ultrasonic | Hydrostatic | Radar (80GHz) | Float Switch |
| :— | :— | :— | :— | :— |
| Measurement Type | Continuous (Non-contact) | Continuous (Contact) | Continuous (Non-contact) | Point Level |
| Accuracy | Moderate (±0.25%) | High (±0.1% to 0.5%) | Excellent (±2mm) | N/A |
| Resistance to H2S | High (if sealed) | Moderate (requires robust cable) | Excellent | Moderate |
| Maintenance Level | Low | Moderate | Very Low | High (cleaning required) |
| Typical Range | 0.3m – 15m | 1m – 200m | 0.1m – 30m | Fixed Point |
| Cost | Mid-range | Mid-range | Premium | Economical |
Installation Best Practices
Proper installation is as critical as selecting the right technology. Even the most advanced septic tank level indicator will fail if it is poorly positioned.
Positioning and Mounting
* Avoid the Inlet: Never install a sensor directly under the inlet pipe. The turbulence and splashing from incoming waste will cause erratic readings and may damage the sensor.
* Stilling Wells: In tanks with significant turbulence or heavy scum, a stilling well (a vertical pipe with vent holes) can be installed. This provides a calm surface for the sensor to measure, though it requires regular cleaning to prevent clogging.
* Vertical Alignment: For non-contact sensors (radar and ultrasonic), the transducer must be perfectly perpendicular to the liquid surface. A tilt of even a few degrees can cause the signal to bounce away from the receiver, leading to "loss of echo" errors.
Wiring and Protection
* IP Ratings: Ensure the sensor has an appropriate Ingress Protection (IP) rating. For septic environments, IP68 is the standard for submersible sensors, while IP66 or IP67 is usually sufficient for top-mounted non-contact sensors.
* Venting: Hydrostatic sensors require a vented cable to compensate for atmospheric pressure changes. Ensure the vent tube is protected by a moisture filter to prevent condensation from entering the sensor electronics.
* Lightning Protection: Since septic tanks are often located in open areas, surge protection should be integrated into the loop to protect the indicator from lightning strikes.
Challenges and Limitations
While modern indicators are highly reliable, users must be aware of specific limitations inherent to septic systems:
1. H2S Corrosion: Hydrogen sulfide is ubiquitous in anaerobic septic environments. It can permeate standard cable jackets and corrode copper wiring. Using specialized cables with FEP or PUR jackets is recommended for long-term reliability.
2. Surface Crusts: In some industrial septic tanks, the scum layer can become so thick and dry that it mimics a solid floor. This can absorb ultrasonic waves or cause false "tank empty" readings if the sensor cannot penetrate the layer.
3. Build-up and Fouling: Submerged sensors (hydrostatic and floats) are subject to the accumulation of solids. Over time, this build-up can add weight to a float or block the pressure diaphragm of a hydrostatic transmitter. Periodic inspection and cleaning are necessary.
Maintenance and Troubleshooting
A proactive maintenance schedule ensures the septic tank level indicator remains accurate throughout its service life.
* Visual Inspection: Every six months, inspect the sensor for signs of corrosion or physical damage. For non-contact sensors, ensure the transducer face is clean and free of spider webs or condensation.
* Calibration Verification: Periodically compare the digital reading against a manual dip-tape measurement. Most modern transmitters allow for field calibration or offset adjustments via a handheld communicator or integrated display.
* Signal Monitoring: If using a 4-20mA output, monitor for signal fluctuations. Erratic signals often indicate electromagnetic interference (EMI) or a failing cable connection.
Frequently Asked Questions (FAQs)
Q: Can I use a standard water level sensor for a septic tank?
A: While the principle is the same, standard water sensors often lack the chemical resistance required for septic waste. The presence of oils, acids, and H2S gas will typically cause a standard sensor to fail within months. Always specify a sensor designed for wastewater or corrosive environments.
Q: What is the best way to prevent false alarms from foam?
A: Radar level indicators are generally the best solution for foamy surfaces as the microwave signal can penetrate foam layers more effectively than ultrasonic sound waves. Alternatively, a stilling well can be used to provide a foam-free measurement area.
Q: How do I monitor a septic tank in a remote location without power?
A: Many industrial level indicators are now available in low-power versions that can be powered by batteries or solar panels. These units often include integrated wireless modules (such as LoRaWAN, NB-IoT, or cellular) to transmit data to a central monitoring station without the need for extensive cabling.
Q: Is a septic tank level indicator necessary if I have a regular pumping schedule?
A: Yes. A pumping schedule is based on average usage, but it does not account for leaks, heavy rain infiltration, or sudden increases in waste volume. An indicator provides real-time data that can prevent an overflow before it occurs, potentially saving thousands in cleanup costs.
Conclusion
Implementing a robust septic tank level indicator is a foundational step in modern facility management. By understanding the measurement principles—whether ultrasonic, hydrostatic, or radar—and adhering to strict installation and maintenance protocols, operators can ensure their waste systems function reliably. For those seeking technical support or specific product configurations, reviewing the available options on the manufacturer's Main Page is the recommended next step to ensure the selected instrument meets the specific chemical and physical demands of the application.
