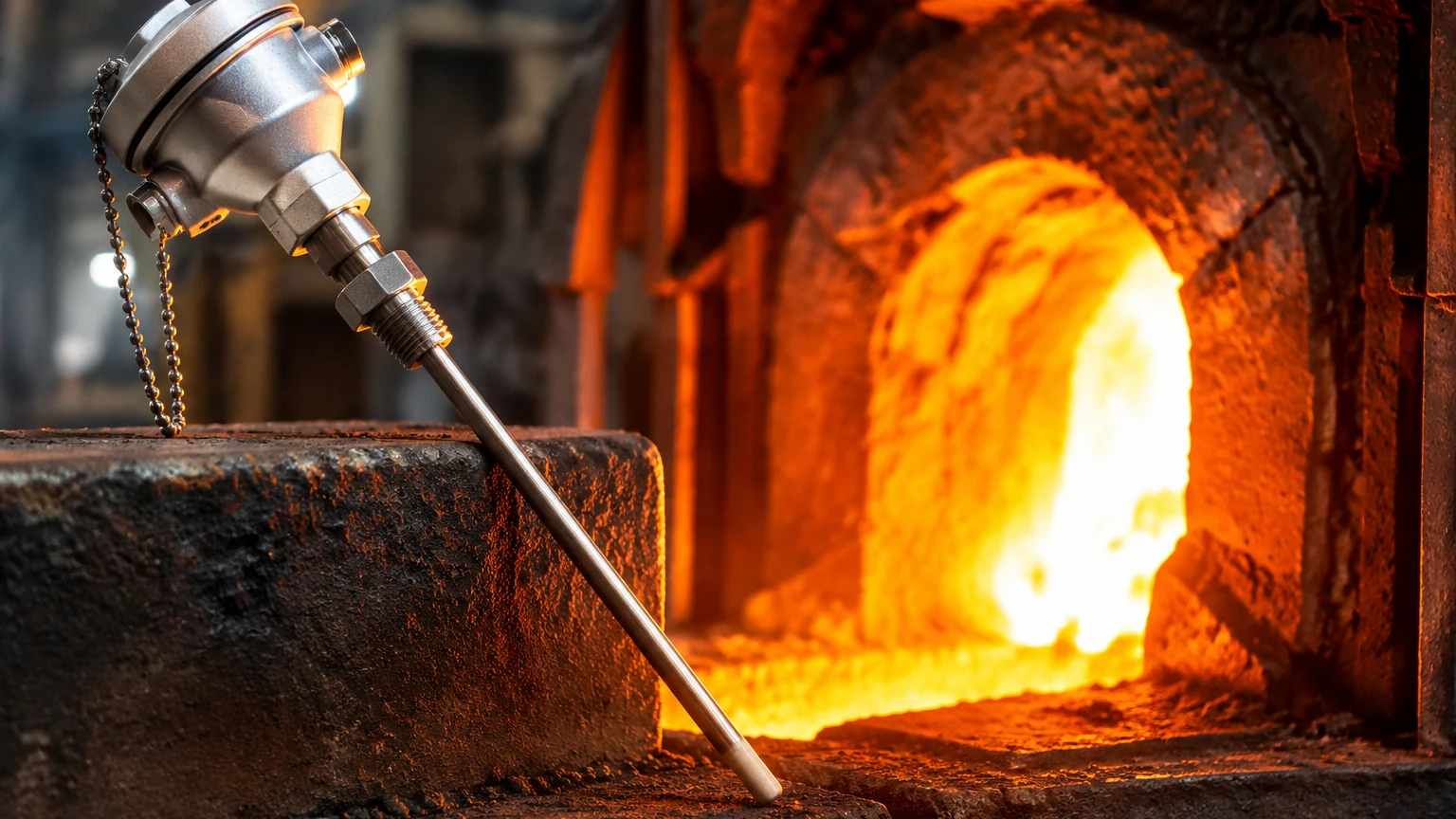

Thermocouples for High Temperature Applications

In industrial process control, monitoring extreme thermal environments is a fundamental requirement for both safety and efficiency. High-temperature applications—typically defined as processes exceeding 1,000°C (1,832°F)—present unique challenges for instrumentation. While various temperature sensing technologies exist, thermocouples remain the most prevalent choice due to their durability, wide temperature range, and relatively low cost.

For engineers managing complex systems, such as those involving the level measurement of molten glass, metal smelting, or high-pressure steam, understanding the nuances of temperature sensing is critical. Often, temperature data is used in conjunction with level measurement instruments to compensate for density changes in fluids. To explore how these sensors integrate into broader process automation, you can visit the Main Page for detailed technical specifications.

Measurement Principles of Thermocouples

The operation of a thermocouple is based on the Seebeck effect, a phenomenon discovered by Thomas Johann Seebeck in 1821. This principle states that when two dissimilar metal conductors are joined at two points to form a circuit, and those junctions are maintained at different temperatures, an electromotive force (EMF) or voltage is generated.

The Seebeck Effect

The voltage produced is proportional to the temperature difference between the "hot junction" (the measurement point) and the "cold junction" (the reference point, usually located at the transmitter or controller). Because the relationship between voltage and temperature is non-linear but well-defined by international standards (such as IEC 60584 or ASTM E230), a controller can calculate the temperature at the hot junction by measuring the millivolt output and knowing the reference junction temperature.

Material Selection and Thermoelectric Sensitivity

For high-temperature applications, the choice of metal alloys is restricted by the melting points of the materials and their resistance to oxidation and reduction. The sensitivity of a thermocouple, often expressed in microvolts per degree Celsius (µV/°C), varies significantly between different types. Noble metal thermocouples, while more stable at extreme temperatures, typically have much lower sensitivity than base metal types.

Types of Thermocouples for High Temperature Applications

Thermocouples are categorized into "Base Metal" and "Noble Metal" types. For high-temperature industrial use, the following types are the most common:

Base Metal Thermocouples (Type K and Type N)

* Type K (Chromel/Alumel): This is the most common general-purpose thermocouple. It can operate up to 1,260°C (2,300°F) in oxidizing or inert atmospheres. However, it is susceptible to "green rot" (preferential oxidation of chromium) if used in reducing atmospheres at high temperatures.

* Type N (Nicrosil/Nisil): Developed to overcome the instabilities of Type K, Type N offers superior oxidation resistance and is more stable against the effects of thermal cycling. It is suitable for temperatures up to 1,260°C and is increasingly preferred for high-temperature vacuum furnaces.

Noble Metal Thermocouples (Type R, S, and B)

These utilize platinum and rhodium alloys and are designed for extreme temperatures where base metals would melt or oxidize rapidly.

* Type R (Platinum-13% Rhodium/Platinum): Suitable for temperatures up to 1,450°C. It is highly stable but very sensitive to contamination.

* Type S (Platinum-10% Rhodium/Platinum): Similar to Type R, it is the standard for calibration and industrial measurements up to 1,450°C.

* Type B (Platinum-30% Rhodium/Platinum-6% Rhodium): Designed for the highest industrial ranges, Type B can measure up to 1,700°C (3,100°F). It has a very low output at lower temperatures, making cold-junction compensation less critical but requiring specialized instrumentation.

Practical Selection Table

Choosing the correct sensor requires balancing temperature range, atmospheric conditions, and budget. The following table provides a comparison of thermocouples for high temperature applications:

| Thermocouple Type | Standard Composition | Max Continuous Temp (°C) | Recommended Atmosphere | Sensitivity (Approx.) |

| :— | :— | :— | :— | :— |

| Type K | Ni-Cr / Ni-Al | 1,260°C | Oxidizing / Inert | 41 µV/°C |

| Type N | Ni-Cr-Si / Ni-Si-Mg | 1,260°C | Oxidizing / Reducing / Vacuum | 39 µV/°C |

| Type R | Pt-13%Rh / Pt | 1,450°C | Oxidizing / Inert | 10 µV/°C |

| Type S | Pt-10%Rh / Pt | 1,450°C | Oxidizing / Inert | 10 µV/°C |

| Type B | Pt-30%Rh / Pt-6%Rh | 1,700°C | Oxidizing / Inert | 6 µV/°C |

| Type C | W-5%Re / W-26%Re | 2,320°C | Vacuum / Inert / Reducing | 18 µV/°C |

Installation Considerations for High-Temperature Sensors

Correct installation is as important as sensor selection. In high-heat environments, the physical integrity of the sensor assembly is constantly under threat.

Protection Tubes and Thermowells

At temperatures above 1,000°C, most metal sheaths become soft or oxidize. Therefore, ceramic protection tubes are often required. Common materials include:

* Alumina (Al2O3): Provides excellent temperature resistance and chemical inertness, though it is brittle and sensitive to thermal shock.

* Silicon Carbide (SiC): Used in extremely harsh environments like kilns and furnaces due to its high strength and thermal shock resistance.

* Inconel 600/601: A high-nickel alloy used for metal sheathing in Type K and N applications up to 1,150°C.

Extension and Compensating Wires

Thermocouple signals are small and easily corrupted by electrical noise. It is vital to use the correct extension wire that matches the thermoelectric properties of the thermocouple. Using copper wire between the thermocouple head and the controller will introduce a new junction, leading to significant measurement errors.

Cold Junction Compensation (CJC)

Since the thermocouple measures the *difference* between the hot and cold junctions, the temperature at the connection point (the cold junction) must be known. Modern transmitters and PLC input cards use an internal thermistor to measure the terminal temperature and mathematically compensate the reading.

Limitations and Risks

While robust, thermocouples for high temperature applications are subject to several failure modes:

1. Drift: Over time, the alloys in the thermocouple wires can change due to the migration of atoms or oxidation. This causes the voltage output to change, leading to inaccurate readings. Noble metals are less prone to drift than base metals.

2. Contamination: At high temperatures, vapors from the process or the protection tube can permeate the thermocouple wires. For example, silica from ceramic tubes can contaminate platinum wires, making them brittle and altering their calibration.

3. Thermal Shock: Rapid temperature changes can crack ceramic protection tubes or cause mechanical stress on the junction, leading to premature failure.

4. Green Rot: As mentioned, Type K thermocouples can fail in low-oxygen environments at high temperatures because the chromium oxidizes while the nickel does not, drastically changing the EMF output.

Integration with Level Measurement Systems

In many industrial applications, temperature measurement is not an isolated requirement. For instance, in chemical processing or oil and gas storage, the accuracy of a hydrostatic level transmitter depends on the density of the liquid. Since density changes with temperature, a high-temperature thermocouple is often used to provide real-time data to a flow computer or DCS, which then corrects the level reading.

Similarly, radar level meters, while generally unaffected by temperature in the vapor space, must operate within specific temperature limits at the flange or antenna. Monitoring the process temperature ensures that the level measurement hardware remains within its safe operating envelope. For more information on how temperature affects various level sensing technologies, visit the Main Page.

Frequently Asked Questions (FAQs)

1. How often should high-temperature thermocouples be calibrated?

Calibration frequency depends on the operating temperature and the environment. In continuous processes above 1,200°C, monthly or quarterly checks are common. Noble metal thermocouples (R, S, B) typically hold their calibration longer than base metal types (K, N).

2. Can I use a Type K thermocouple in a vacuum furnace?

Type K is not recommended for high-vacuum applications because the chromium can evaporate from the wire, changing its calibration. Type N is a much better choice for vacuum environments.

3. What is the difference between a grounded and ungrounded junction?

In a grounded junction, the thermocouple wires are physically welded to the tip of the protection sheath. This provides a faster response time but makes the signal susceptible to electrical noise and ground loops. Ungrounded junctions are electrically isolated from the sheath, offering better noise rejection at the cost of a slower response time.

4. Why is my Type B thermocouple reading 0°C at room temperature?

Type B thermocouples have a very flat response curve at low temperatures. They produce almost no voltage between 0°C and 40°C. They are specifically designed for use above 600°C; they are not suitable for measuring ambient or low process temperatures.

5. How do I prevent ceramic protection tubes from cracking?

To prevent thermal shock, ceramic tubes should be pre-heated or inserted into the furnace slowly (e.g., 25-50mm per minute). This allows the material to expand gradually and reduces internal stresses.

Conclusion

Selecting thermocouples for high temperature applications requires a deep understanding of the chemical and physical environment of the process. Whether choosing a Type N for its stability in a furnace or a Type B for extreme heat in a glass melt, engineers must consider the protection sheath, the atmosphere, and the potential for drift. By integrating accurate temperature data with reliable level measurement solutions, industrial operators can ensure the safety and precision of their most demanding processes.
