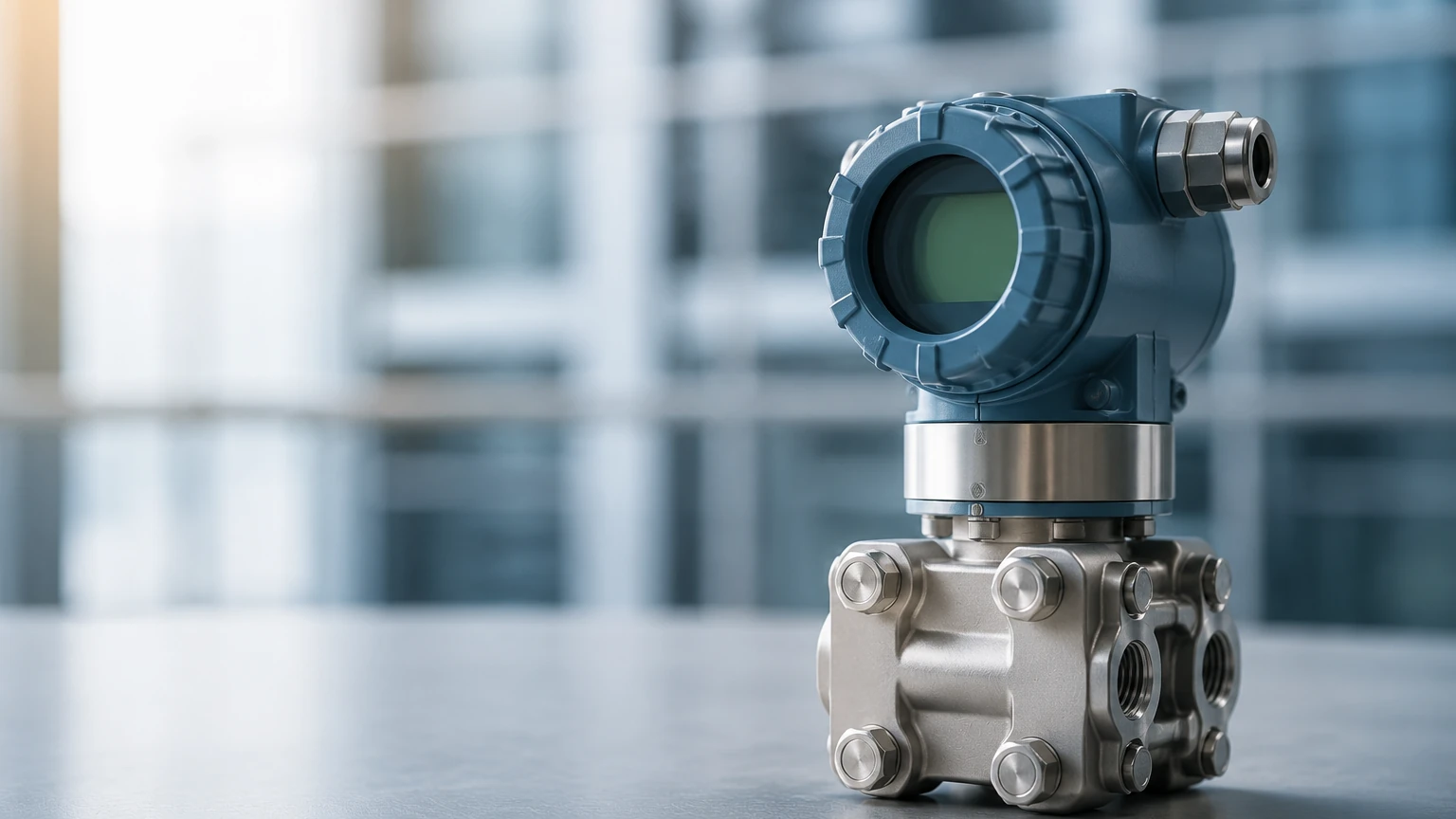

Analog Pressure Transmitter
Analog Pressure Transmitter
In the landscape of industrial automation and process control, the analog pressure transmitter remains a fundamental component for monitoring and managing system health. Despite the rise of digital communication protocols, the simplicity, reliability, and real-time response of analog signals—specifically the 4-20mA current loop—ensure that these devices are still the preferred choice for many engineering applications. This guide explores the technical principles, selection criteria, and practical implementation of analog pressure transmitters, with a specific focus on their critical role in level measurement.
Understanding the Role of Analog Pressure Transmitters
An analog pressure transmitter is a transducer that converts mechanical pressure into an electrical signal. Unlike a simple pressure gauge, which provides a local visual reading, a transmitter sends a continuous signal to a remote control system, such as a Programmable Logic Controller (PLC) or Distributed Control System (DCS).
In industrial environments, these devices are used to measure the pressure of liquids, gases, or vapors. While they are often associated with pipe pressure monitoring, they are equally vital in level measurement. By measuring the hydrostatic pressure exerted by a liquid column, an analog pressure transmitter can accurately determine the height of the fluid in a tank or reservoir. For engineers seeking comprehensive instrumentation suites, reviewing the Main Page of specialized manufacturers like Welk provides insight into how these transmitters integrate with broader level measurement ecosystems.
Core Measurement Principles and Technologies
Before selecting a transmitter, it is essential to understand the underlying sensing technologies. Most modern analog pressure transmitters utilize one of three primary physical principles to detect pressure changes.
Piezoresistive Sensors
This is the most common technology used in industrial transmitters. It relies on the piezoresistive effect, where the electrical resistance of a material (usually silicon or a ceramic) changes when it is subjected to mechanical strain. In a typical construction, a silicon sensing element is mounted on a diaphragm. When pressure is applied, the diaphragm deflects, straining the silicon and changing its resistance. This change is measured using a Wheatstone bridge circuit and converted into an analog output.
Capacitive Sensors
Capacitive pressure transmitters use a sensing cell containing a diaphragm that acts as one plate of a capacitor. As pressure moves the diaphragm, the distance between it and a stationary reference plate changes, resulting in a change in capacitance. These sensors are known for their high accuracy and excellent long-term stability, making them ideal for low-pressure applications and vacuum measurement.
Strain Gauge Sensors
Similar to piezoresistive sensors, strain gauges are bonded to a diaphragm. However, they typically use metal foil or thin-film resistors. While generally less sensitive than silicon-based piezoresistive sensors, they offer high durability and are often used in high-pressure hydraulic applications or where extreme mechanical shock is a concern.
Signal Transmission Standards: 4-20mA vs. Voltage
The "analog" aspect of these transmitters refers to the output signal. The two most common standards are 4-20mA current loops and 0-10V voltage signals.
* 4-20mA Current Loop: This is the global industry standard. It offers several advantages:
* Noise Immunity: Current signals are highly resistant to electromagnetic interference (EMI).
* Long-Distance Transmission: Unlike voltage signals, current does not drop over long cable runs (up to 1,000 meters or more, depending on the power supply).
* Fault Detection: The "live zero" (4mA) allows the system to distinguish between a zero-pressure reading (4mA) and a broken wire (0mA).
* Voltage Signals (0-5V, 0-10V): These are easier to interface with simple data loggers and microcontrollers. However, they are susceptible to voltage drops over long distances and are more prone to signal noise in industrial environments.
Application in Hydrostatic Level Measurement
One of the most practical uses for an analog pressure transmitter in the context of level sensing is hydrostatic measurement. The principle is based on the fact that the pressure at the bottom of a liquid column is directly proportional to the height of the liquid and its density.
The Formula:
$P = \rho \cdot g \cdot h$
Where:
* $P$ = Hydrostatic pressure (Pascals or bar)
* $\rho$ = Density of the liquid ($kg/m^3$)
* $g$ = Gravitational constant (approx. $9.81 m/s^2$)
* $h$ = Height of the liquid (meters)
For an open tank, a gauge pressure transmitter is mounted at the bottom. It measures the pressure exerted by the liquid against atmospheric pressure. For pressurized tanks, a differential pressure transmitter is required to subtract the top-side gas pressure from the total pressure at the bottom. This ensures that the analog signal reflects only the liquid level.
Selection Criteria for Industrial Applications
Choosing the right analog pressure transmitter requires a detailed analysis of the process conditions. The following table provides a comparison of key factors to consider during the selection process:
| Feature | Piezoresistive (Silicon) | Ceramic Thick-Film | Capacitive |
| :— | :— | :— | :— |
| Typical Accuracy | 0.1% to 0.5% FS | 0.5% to 1.0% FS | 0.05% to 0.1% FS |
| Overpressure Limit | Moderate | High | Very High |
| Corrosion Resistance | Depends on diaphragm material | Excellent (Ceramic) | High |
| Temperature Range | -40°C to 125°C | -25°C to 100°C | -40°C to 150°C+ |
| Best Use Case | General purpose, oil/gas | Corrosive chemicals | High precision, low pressure |
Key Evaluation Factors:
1. Pressure Range: The transmitter's range should be roughly 1.5 to 2 times the maximum expected process pressure to avoid damage from pressure spikes.
2. Media Compatibility: The wetted parts (diaphragm and process connection) must be compatible with the fluid. Standard 316L stainless steel is common, but Hastelloy or Tantalum may be necessary for aggressive acids.
3. Process Temperature: Standard transmitters are often rated up to 80°C or 100°C. For higher temperatures, cooling elements or capillary seals are required to protect the electronics.
4. Environmental Rating: For outdoor or wash-down areas, an IP65 or IP67 rating is standard. For submersible level applications, an IP68 rating with a vented cable is mandatory.
Installation and Maintenance Best Practices
Proper installation is critical to the longevity and accuracy of an analog pressure transmitter. Even the highest-quality instrument will provide inaccurate data if installed incorrectly.
Mounting and Orientation
For gas applications, the transmitter should be mounted above the pressure tap to allow condensate to drain back into the process. For liquid applications, it should be mounted below or at the same level as the tap to prevent gas bubbles from being trapped in the sensing line. Note that for very low-pressure ranges (e.g., <100 mbar), the orientation of the transmitter can affect the zero point due to the weight of the internal oil fill; always zero the instrument in its final mounting position.
Venting for Level Measurement
When using a submersible pressure transmitter for level measurement, the cable usually contains a small vent tube. This tube allows the sensor to reference atmospheric pressure. It is vital that this tube is not kinked or blocked, and it should terminate in a dry environment (often using a desiccant cartridge) to prevent moisture from entering the transmitter housing.
Electrical Considerations
Use shielded twisted-pair cables for 4-20mA loops to minimize EMI. The shield should be grounded at one end only (typically the control room side) to prevent ground loops. Ensure the power supply voltage is sufficient to overcome the total loop resistance, which includes the transmitter's minimum operating voltage plus the resistance of the wires and the controller's input shunt.
Limitations and Troubleshooting
While analog pressure transmitters are robust, they have inherent limitations compared to digital alternatives like HART, Modbus, or Foundation Fieldbus.
* Lack of Diagnostics: An analog transmitter only sends the primary variable. It cannot communicate internal health status, sensor temperature, or secondary variables unless they are mapped to a different output.
* Calibration Drift: All analog circuits experience some drift over time due to component aging. Regular calibration (typically every 12 to 24 months) is necessary to maintain accuracy.
* Signal Scaling: The 4-20mA signal must be correctly scaled in the PLC. If the transmitter is replaced with a model having a different range, the PLC code must be updated, whereas some digital protocols can auto-configure.
Common Troubleshooting Steps:
* Signal at 0mA: Indicates a broken wire, blown fuse, or failed power supply.
* Signal at 3.8mA or 21mA: Most transmitters use these values to indicate an internal sensor failure (NAMUR NE43 standard).
* Erratic Readings: Often caused by moisture in the housing, poor grounding, or air bubbles in the impulse lines.
Frequently Asked Questions
Q: Can I use an analog pressure transmitter for steam applications?
A: Yes, but you must use a siphon (pigtail or U-shape) to create a water seal. This prevents live steam from directly contacting the sensor diaphragm, which would exceed its temperature limits.
Q: What is the difference between Gauge and Absolute pressure transmitters?
A: A gauge transmitter measures pressure relative to the current atmospheric pressure. An absolute transmitter measures pressure relative to a perfect vacuum. Gauge transmitters are used for most tank level and pipe pressure applications, while absolute transmitters are used in vacuum distillation or barometric monitoring.
Q: How do I convert the 4-20mA signal to a level reading?
A: If a transmitter is calibrated for 0-1 bar (equivalent to approximately 10.2 meters of water), then 4mA = 0 meters and 20mA = 10.2 meters. The PLC uses a linear scaling function: $Level = (Current – 4) / 16 \cdot MaxRange$.
Q: Is it possible to change the range of an analog transmitter?
A: Some "smart" analog transmitters allow for re-ranging via internal buttons or a basic communication tool, but traditional pure-analog transmitters have a fixed range set at the factory.
For technical professionals managing fluid systems, the analog pressure transmitter remains an indispensable tool. By understanding the physics of the sensor and the requirements of the installation environment, engineers can ensure long-term, maintenance-free operation. For more specific product data and selection support across various measurement technologies, visit the Main Page to explore professional-grade industrial solutions.
