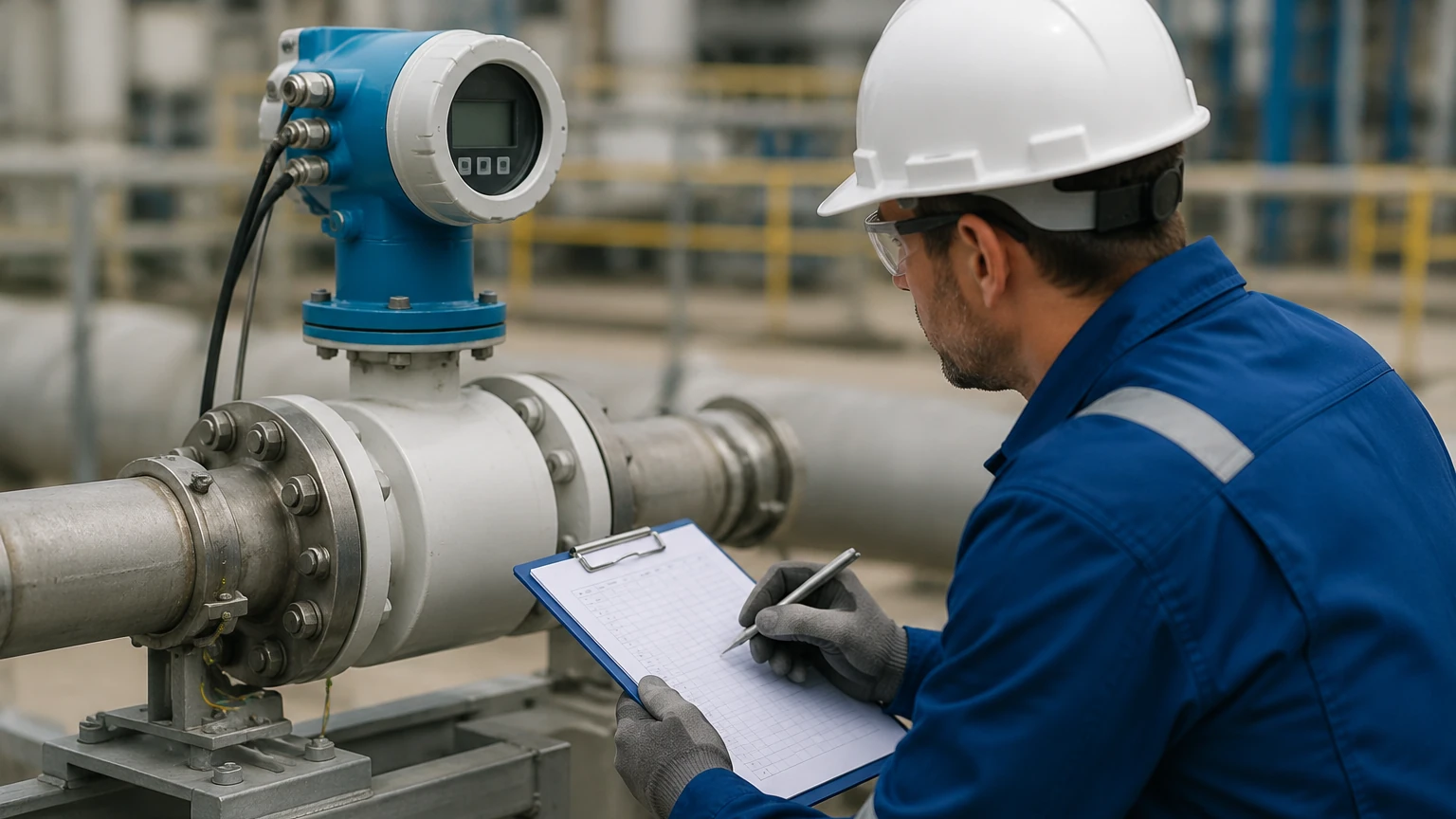

Endress Hauser Flow Meter Promag 10
Endress Hauser Flow Meter Promag 10
The Endress Hauser flow meter Promag 10 is an electromagnetic flowmeter designed primarily for basic applications in the water and wastewater industries. As a cost-effective solution for conductive liquids, it serves as a reliable transmitter that pairs with various sensors, such as the Promag W, P, or H, to provide accurate volumetric flow measurement. In industrial process control, understanding the technical nuances of this instrument is essential for engineers who must balance performance requirements with budgetary constraints.
While electromagnetic flowmeters are a staple in fluid dynamics, they are often used in conjunction with other process instruments. For instance, in a large-scale treatment plant, flow data from a Promag 10 is frequently cross-referenced with tank levels monitored by radar or ultrasonic sensors. For those seeking comprehensive instrumentation for their facilities, it is beneficial to Review product options and application support at the Main Page to see how different measurement technologies integrate into a cohesive control system.
Understanding Electromagnetic Flow Measurement Principles
The Endress Hauser flow meter Promag 10 operates on Faraday’s Law of Induction. This principle states that a voltage is induced when a conductive fluid moves through a magnetic field. In the context of the Promag 10, the sensor contains two electromagnetic coils that generate a constant magnetic field across the cross-section of the pipe.
The mathematical representation of this principle is defined by the equation:
U = B · v · d · k
Where:
* U is the induced voltage.
* B is the magnetic field strength.
* v is the average flow velocity.
* d is the distance between the electrodes (pipe diameter).
* k is a proportionality constant.
As the fluid flows through the pipe, the induced voltage is picked up by two electrodes located on the pipe wall. Because the magnetic field strength and the pipe diameter are constant, the induced voltage is directly proportional to the flow velocity. The Promag 10 transmitter then converts this voltage signal into a standardized output, such as a 4-20mA signal or a pulse output, representing the volumetric flow rate.
It is important to note that this technology requires the medium to have a minimum electrical conductivity, typically ≥ 50 µS/cm. If the fluid is non-conductive, such as hydrocarbons or demineralized water, the electromagnetic principle will not function, and alternative technologies like ultrasonic or vortex flowmeters must be considered.
Technical Specifications and Features
The Promag 10 is categorized as the "basic" transmitter in the Proline family. It is designed for users who require essential flow data without the complexity of advanced diagnostic suites found in higher-tier models like the Promag 50 or 400.
Key Specifications of the Promag 10 Transmitter
| Feature | Specification |
| :— | :— |
| Power Supply | 100 to 240 V AC / 16 to 62 V DC |
| Ambient Temperature | -20 to +60 °C (-4 to +140 °F) |
| Degree of Protection | IP67 (NEMA 4X) |
| Outputs | 4-20 mA, Pulse/Status output |
| Display | 2-line liquid crystal display with push buttons |
| Accuracy | ±0.5% of range (standard) |
Sensor Compatibility
The Promag 10 transmitter is most commonly paired with the Promag W sensor. The Promag W is specifically engineered for the water industry, featuring a wide range of nominal diameters (DN 25 to 2000 / 1" to 78") and various liner materials like Hard Rubber or Polyurethane. It is also compatible with the Promag P for chemical applications and the Promag H for hygienic environments, though the 10-series transmitter is rarely the first choice for high-precision hygienic processes.
Selection Criteria and Application Suitability
Choosing the Endress Hauser flow meter Promag 10 depends on the specific requirements of the process environment. Engineers should evaluate the following factors before procurement:
1. Fluid Conductivity
As mentioned, the medium must be conductive. The Promag 10 is ideal for raw water, well water, wastewater, and sewage sludge. It is not suitable for oils, alcohols, or ultra-pure water.
2. Required Accuracy
With a standard accuracy of ±0.5%, the Promag 10 is sufficient for general process monitoring and control. However, for custody transfer or high-precision chemical dosing, a transmitter with a higher accuracy rating (such as ±0.2%) might be required.
3. Environmental Conditions
The IP67 rating ensures that the transmitter can withstand outdoor installation and occasional splashing. However, if the sensor is to be buried or permanently submerged, a remote version with an IP68 rating is necessary.
4. Integration Requirements
The Promag 10 offers basic HART communication. If the facility utilizes complex fieldbus protocols like Profibus DP/PA or Foundation Fieldbus, the Promag 10 may lack the necessary communication modules, necessitating an upgrade to a more advanced transmitter model.
Installation Considerations for Optimal Performance
Proper installation is the most critical factor in ensuring the longevity and accuracy of an electromagnetic flowmeter. Even a high-quality instrument like the Endress Hauser flow meter Promag 10 will provide erroneous readings if the hydraulic conditions are poor.
Pipe Orientation
The preferred orientation is a vertical pipe with upward flow. This ensures that the pipe is always full and that any air bubbles rise away from the electrodes. If horizontal installation is necessary, the electrodes must be positioned on a horizontal plane (3 o'clock and 9 o'clock positions) to prevent interference from sediment at the bottom or air pockets at the top.
Inlet and Outlet Runs
To ensure a stable flow profile, the meter requires straight pipe sections before and after the sensor.
* Inlet Run: Minimum 5 x DN (Nominal Diameter)
* Outlet Run: Minimum 2 x DN
If the installation is downstream of a pump or a control valve, the inlet run should be increased to 10 x DN to allow turbulence to subside.
Grounding
Since the induced voltage signals are very small (in the millivolt range), electrical noise can easily distort the measurement. The fluid, the sensor, and the transmitter must be at the same electrical potential. In plastic or lined pipes, grounding rings are required to establish an electrical connection with the fluid.
Comparison: Flow vs. Level Measurement
In many industrial applications, flow measurement is only one half of the equation. For example, in a wastewater lift station, the Promag 10 measures the discharge rate, while a level transmitter monitors the wet well to trigger pump cycles.
While the Endress Hauser flow meter Promag 10 is an excellent choice for pipe-based flow, many engineers look to specialized manufacturers for level measurement solutions. Welk, for instance, provides advanced radar and ultrasonic level meters that complement electromagnetic flowmeters in complex automation loops. Integrating high-quality level sensors ensures that the data provided by the flowmeter is used within the context of the entire system's volume and capacity.
Common Risks and Limitations
While the Promag 10 is a robust instrument, it is not immune to application-specific failures. Users should be aware of the following risks:
1. Vacuum Collapse: In systems where a vacuum may occur (e.g., downstream of a valve that closes quickly), certain liners like Hard Rubber may pull away from the pipe wall. For vacuum-prone applications, PFA liners with mechanical anchors are preferred.
2. Electrode Fouling: In wastewater or sludge applications, grease or scale can build up on the electrodes, insulating them from the fluid. This results in a "signal loss" or drifting measurements. Regular inspection or the use of sensors with cleaning electrodes may be necessary.
3. Partially Filled Pipes: Electromagnetic flowmeters cannot accurately measure flow in a pipe that is not 100% full. If the pipe is partially empty, the meter will typically over-read or fluctuate wildly. In such cases, an "empty pipe detection" feature (available in the Promag 10) can be configured to drive the output to zero.
Maintenance and Troubleshooting
The Promag 10 is designed to be virtually maintenance-free because it has no moving parts. However, a periodic verification of the electronics and a check of the grounding connections are recommended.
* Zero Point Adjustment: This should only be performed if the pipe is completely full and the flow is at a total standstill. Adjusting the zero point during active flow will introduce a permanent offset error.
* Error Codes: The Promag 10 display will show specific error codes (e.g., "S801" for supply voltage issues or "E702" for device internal errors). Consulting the technical manual for these codes allows for rapid troubleshooting without removing the meter from the line.
Frequently Asked Questions (FAQ)
Q: Can the Promag 10 measure the flow of deionized water?
A: Generally, no. Deionized water typically has a conductivity below 5 µS/cm, which is well below the 50 µS/cm threshold required for the Promag 10 to function reliably.
Q: What is the maximum fluid temperature the Promag 10 can handle?
A: This depends on the sensor liner. For a Promag W with a Hard Rubber liner, the limit is usually 80 °C (176 °F). For higher temperatures, a Promag P with a PFA liner can handle up to 130 °C (266 °F) or higher in remote configurations.
Q: Does the Promag 10 require periodic recalibration?
A: While the electronic components are very stable, many regulatory bodies in the water industry require a wet calibration check every 1 to 3 years to ensure continued accuracy for billing or environmental reporting.
Q: How does the Promag 10 handle solids in the fluid?
A: Because the bore is unobstructed, the Promag 10 is excellent for fluids with suspended solids, such as paper pulp or sewage. However, highly abrasive solids may wear down the liner over time, so choosing the correct liner thickness and material is essential.
