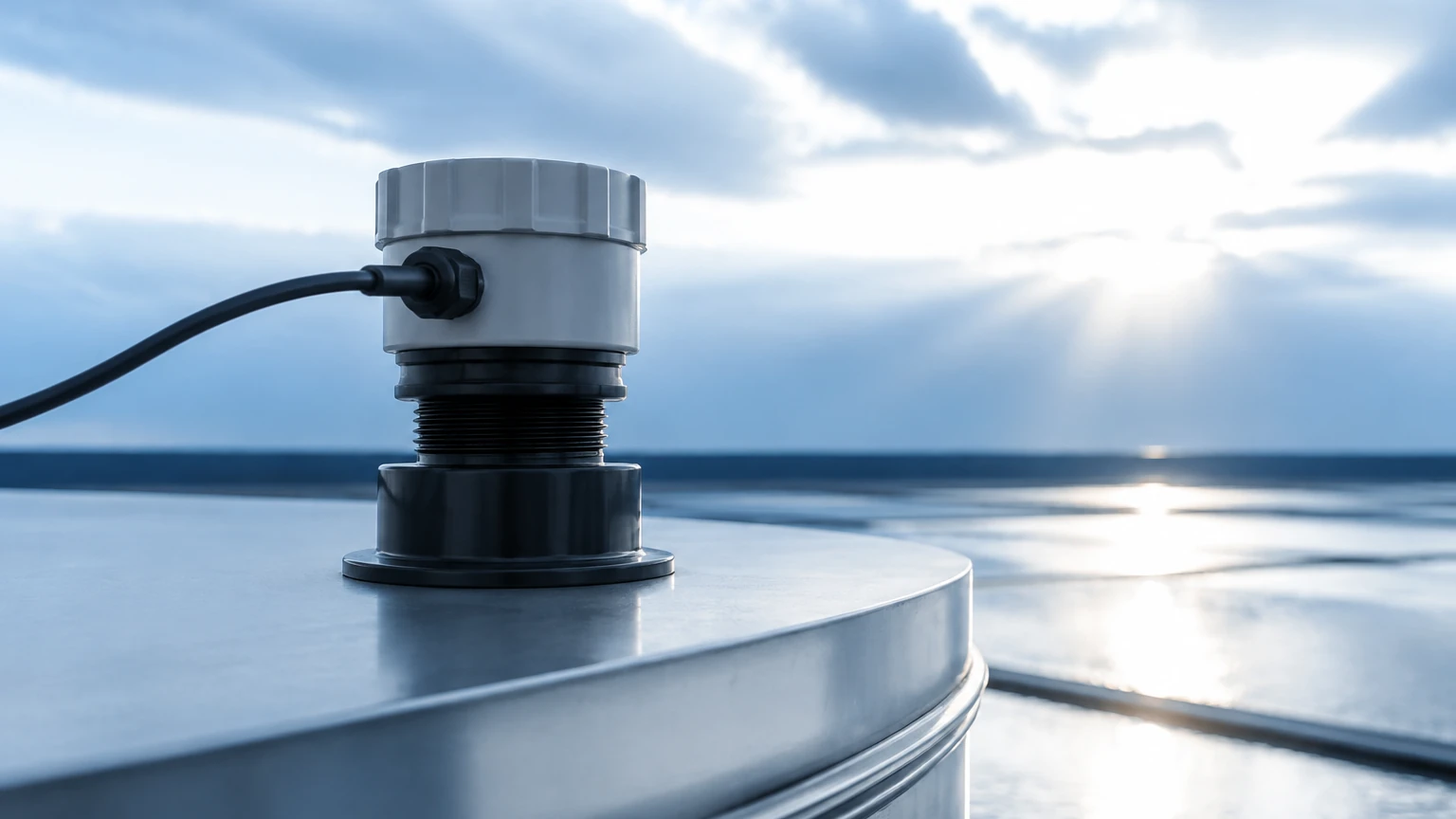

In the landscape of industrial automation and fleet management, the precise measurement of liquid assets is paramount. Fuel, whether stored in stationary tanks for backup generators or in mobile tanks for logistics, represents a significant operational cost. The ultrasonic fuel level sensor has emerged as a preferred solution for non-contact, high-precision monitoring. This article provides a technical overview of ultrasonic measurement principles, selection criteria, and practical installation guidelines for engineering professionals.
Understanding the Measurement Principle
An ultrasonic fuel level sensor operates on the "Time of Flight" (ToF) principle. The device contains a piezoelectric transducer that emits high-frequency sound pulses, typically in the range of 20 kHz to 200 kHz. These sound waves travel through the air gap in the tank, reflect off the surface of the fuel, and return to the sensor.
The sensor’s internal processor records the time interval between the emission of the pulse and the reception of the echo. Given that the speed of sound in air is a known constant (approximately 343 meters per second at 20°C), the distance to the fuel surface can be calculated using the formula:
Distance = (Speed of Sound × Time) / 2
By subtracting this distance from the total known height of the tank, the sensor determines the actual level of the fuel. Modern units, such as those produced by Welk, incorporate sophisticated algorithms to filter out false echoes caused by tank internal structures or surface turbulence, ensuring a stable and accurate output.
Key Advantages in Fuel Monitoring
Compared to traditional contact-based methods like float switches or capacitive probes, the ultrasonic fuel level sensor offers several distinct advantages:
1. Non-Contact Measurement: Because the sensor does not touch the fuel, it is not subject to corrosion, scaling, or mechanical wear. This significantly extends the service life of the instrument and reduces maintenance requirements.
2. High Accuracy: Advanced ultrasonic sensors can achieve accuracy levels of ±0.5% of the full scale, making them suitable for inventory management and leak detection.
3. Ease of Installation: Many ultrasonic sensors are designed for top-mounting, which often does not require draining the tank or drilling into the bottom, preserving the integrity of the fuel containment system.
4. Versatility: These sensors are effective for various fuel types, including diesel, kerosene, and certain biofuels, provided the environment does not produce excessive vapors that might attenuate the sound signal.
Technical Selection Criteria
When specifying an ultrasonic fuel level sensor for a project, engineers must evaluate several technical parameters to ensure compatibility with the application environment.
Measuring Range and Blind Zone
Every ultrasonic sensor has a minimum and maximum measuring range. The "Blind Zone" (or Dead Zone) is the area immediately below the sensor face where measurements are impossible because the transducer is still vibrating from the pulse emission when the echo returns. For fuel tanks, it is critical to select a sensor where the blind zone is smaller than the typical air gap at maximum fill levels.
Output Signals and Integration
For industrial automation, the sensor must interface with PLCs, RTUs, or telematics gateways. Common output options include:
* Analog (4-20mA or 0-5V): Standard for most industrial control systems.
* Digital (RS485 Modbus): Preferred for long-distance transmission and multi-sensor networks, providing high noise immunity.
* Wireless (LoRaWAN/NB-IoT): Increasingly used for remote fuel tank monitoring where cabling is impractical.
Environmental Protection
Fuel storage environments can be harsh. Sensors should carry an IP67 or IP68 rating to protect against dust and moisture ingress. Furthermore, if the sensor is used with flammable fuels like gasoline, it must meet ATEX or IECEx intrinsic safety standards to prevent ignition risks.
Practical Selection Table
| Feature | Mobile Fuel Tanks (Trucks/Fleet) | Stationary Storage Tanks | Generator Day Tanks |
| :— | :— | :— | :— |
| Typical Range | 0.5m – 2m | 2m – 10m | 0.5m – 1.5m |
| Preferred Output | RS232 / RS485 / Analog | 4-20mA / Modbus | 4-20mA / Switch Output |
| Accuracy Required | High (Theft detection) | Medium (Inventory) | High (Operational safety) |
| Mounting | Flange or Threaded | Flange or Bracket | Threaded (NPT/G) |
| Key Concern | Sloshing & Vibration | Temperature Fluctuations | Rapid Level Changes |
Installation Considerations and Best Practices
Proper installation is the most critical factor in the performance of an ultrasonic fuel level sensor. Engineers should adhere to the following guidelines:
1. Perpendicular Alignment
The sensor face must be installed perfectly parallel to the fuel surface. Even a few degrees of tilt can cause the echo to reflect away from the transducer, resulting in signal loss or "hunting."
2. Avoiding Obstructions
The ultrasonic beam spreads as it travels (the beam angle is typically between 5° and 12°). The sensor must be positioned so that the beam path is clear of internal tank structures such as ladders, heating coils, or reinforcement ribs. If an obstruction is unavoidable, some high-end sensors allow for "false echo suppression" via software configuration.
3. Management of the Blind Zone
Ensure the sensor is mounted high enough so that the fuel level never enters the blind zone. If the tank is frequently filled to the brim, a standpipe or nozzle can be used to raise the sensor above the maximum liquid level.
4. Temperature Compensation
The speed of sound varies with air temperature (increasing by approximately 0.6 m/s for every degree Celsius). Reliable sensors include an integrated temperature probe to automatically compensate for these changes, ensuring accuracy across seasonal temperature swings.
Limitations and Common Risks
While highly effective, the ultrasonic fuel level sensor is not a universal solution. Engineers should be aware of the following limitations:
* Heavy Foam: If the fuel surface is covered in thick foam (often occurring during high-speed filling), the foam can absorb the ultrasonic pulse rather than reflecting it, leading to inaccurate readings.
* High Pressure or Vacuum: Significant changes in tank pressure can alter the density of the air, affecting the speed of sound beyond the capabilities of standard temperature compensation.
* Vapor Interference: High concentrations of heavy fuel vapors can attenuate the sound signal. In such cases, a radar level meter may be a more appropriate choice.
* Tank Geometry: In very narrow or irregularly shaped tanks, side-wall reflections can interfere with the primary echo.
Frequently Asked Questions (FAQs)
Q: Can ultrasonic sensors be used for gasoline?
A: Yes, provided the sensor is certified as intrinsically safe (Ex-rated) and the housing material is resistant to gasoline vapors. However, radar is often preferred for highly volatile liquids due to vapor interference.
Q: How do I handle fuel sloshing in a moving vehicle?
A: For mobile applications, sensors often use software averaging or damping to smooth out the level readings. Additionally, installing the sensor in a stilling well (a vertical pipe) can physically dampen the surface movement.
Q: What is the maintenance schedule for these sensors?
A: Because they are non-contact, maintenance is minimal. A periodic visual inspection to ensure the sensor face is clean and free of condensation or spider webs is usually sufficient.
Q: How does the sensor handle different fuel densities?
A: Unlike hydrostatic pressure sensors, ultrasonic sensors are independent of liquid density. They measure the distance to the surface regardless of whether the tank contains diesel, water, or oil.
Conclusion
The ultrasonic fuel level sensor remains a cornerstone of modern industrial level measurement due to its balance of cost, accuracy, and reliability. By understanding the underlying physics and following rigorous installation standards, engineers can implement robust monitoring systems that protect valuable fuel assets and optimize operational efficiency. For a comprehensive overview of available technologies, including radar and hydrostatic options, engineers should visit the Main Page to review product options and application support.
