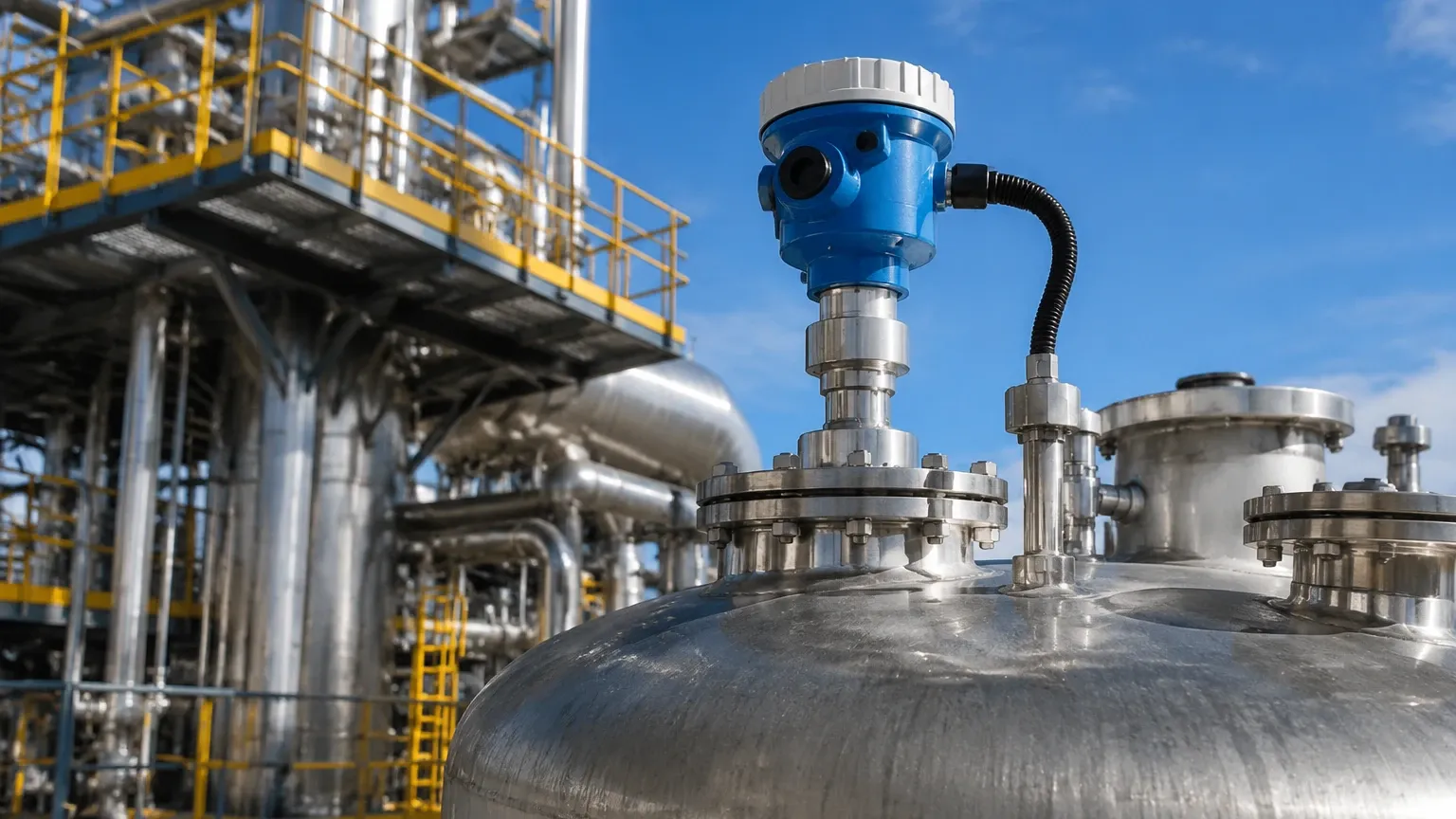

Installation of Radar Level Transmitter: A Technical Engineering Guide
In the landscape of industrial automation, the precision of level measurement directly impacts process safety, inventory accuracy, and operational efficiency. Among various technologies, Radar Level Meters have emerged as a premier choice for non-contact measurement due to their ability to operate independently of air temperature, pressure, or vapor layers. However, the performance of these instruments is heavily dependent on correct deployment. This guide provides a comprehensive technical overview of the measurement principles, selection criteria, and the critical steps required for the successful installation of radar level transmitter systems.
Understanding Radar Measurement Principles
Before proceeding with the installation of radar level transmitter hardware, engineers must understand the underlying physics that govern signal propagation and reflection. Radar level measurement is based on the "Time of Flight" (ToF) principle, where electromagnetic waves are emitted, reflected by the medium's surface, and received by the sensor antenna.
Pulse Radar vs. FMCW Radar
There are two primary methods used in modern industrial radar sensors:
1. Pulse Radar: The instrument emits short microwave pulses. The time elapsed between transmission and reception is measured to calculate the distance. This method is often preferred for its lower power consumption.
2. Frequency Modulated Continuous Wave (FMCW): The transmitter sends a continuous signal with a constantly changing frequency. The difference in frequency between the transmitted and received signal at any given moment is directly proportional to the distance to the product surface. FMCW is widely regarded for its higher accuracy and better signal-to-noise ratio in complex environments.
The Role of Dielectric Constant ($ε_r$)
The dielectric constant of the medium determines how much energy is reflected back to the sensor. High-dielectric materials (like water, $ε_r ≈ 80$) provide strong reflections, while low-dielectric materials (like hydrocarbons or solids, $ε_r < 2$) reflect very little energy. This factor influences the choice of antenna and the required sensitivity settings during the installation of radar level transmitter units.
Technical Selection Criteria
Selecting the right Radar Level Meters involves matching the instrument frequency and antenna type to the specific vessel geometry and process conditions.
Frequency Considerations
* 6GHz – 10GHz (C-Band): Best for applications with heavy foam, steam, or turbulence, as the longer wavelength can penetrate these surface disturbances.
* 26GHz (K-Band): The industry standard for general-purpose liquid and solid measurement. It offers a balance between beam focus and signal strength.
* 80GHz (W-Band): Provides a very narrow beam angle (often as small as 3°). This is ideal for narrow tanks with internal obstructions or for measuring through small nozzles.
Selection Table for Industrial Applications
| Feature | 26GHz Radar | 80GHz Radar | Guided Wave Radar (GWR) |
| :— | :— | :— | :— |
| Measurement Type | Non-contact | Non-contact | Contact (Probe) |
| Beam Angle | 8° – 20° | 3° – 6° | N/A (signal follows probe) |
| Accuracy | ±3 mm | ±1 mm | ±2 mm |
| Max Range | Up to 30 m | Up to 120 m | Up to 75 m |
| Best Use Case | Large tanks, corrosive liquids | Narrow vessels, high precision | Low dielectric, bypass pipes |
Guidelines for the Installation of Radar Level Transmitter
The physical placement of the sensor is the most frequent cause of measurement failure. Adhering to the following engineering constraints ensures the radar signal remains clear of interference.
1. Horizontal Positioning
The transmitter should typically be installed at 1/4 to 1/6 of the tank diameter from the tank wall.
* Avoid the Center: In tanks with arched or conical roofs, installing the sensor in the center can cause multiple reflections to converge, amplifying noise and creating "ghost" signals.
* Avoid the Wall: If the sensor is too close to the wall, the beam may interact with weld seams, scales, or the wall itself, leading to false echoes. A minimum distance of 200 mm to 500 mm from the wall is generally recommended.
2. Nozzle Design and Dimensions
The nozzle (the mounting pipe on top of the tank) must be designed to minimize signal interference.
* Nozzle Height: The antenna should ideally extend slightly below the bottom of the nozzle. If the antenna is recessed deep within a narrow nozzle, the signal will reflect off the pipe walls (ringing), creating a large "dead zone" at the top of the tank.
* Nozzle Smoothness: The interior of the nozzle should be smooth and free of burrs or sharp edges.
3. Avoiding Internal Obstructions
Radar beams spread as they travel. Any object within the "signal cone" will reflect energy back to the sensor. Common obstructions include:
* Agitators and mixers
* Heating coils
* Ladders or structural braces
* Inflow streams (never install the radar directly above the filling inlet)
If an obstruction is unavoidable, many modern Radar Level Meters allow for "False Echo Suppression" or "Background Subtraction," where the software learns the fixed reflections and ignores them.
4. Orientation and Polarization
Radar signals are polarized. Rotating the sensor in its mounting flange can often help minimize reflections from nearby obstructions. During the installation of radar level transmitter units, engineers should check the manufacturer's markings for the polarization axis to align it away from vertical walls or large metal structures.
Installation Constraints and Environmental Factors
While radar is robust, certain environmental factors require specific installation strategies:
* Pressure and Temperature: Ensure the flange and seal materials (e.g., PTFE, PEEK, or Viton) are compatible with the process temperature (up to 250°C or higher) and pressure (vacuum to 40 bar).
* Heavy Condensation: For applications with high humidity, use antennas with a curved or convex dripping surface (like a plastic horn or lens antenna) to prevent water droplets from accumulating on the emitting face.
* Stilling Wells and Bypass Pipes: In cases of extreme surface turbulence or heavy foam, installing the radar inside a stilling well (a vertical pipe) can provide a calm surface for measurement. The pipe must be straight and have a consistent internal diameter.
Practical Checklist for International Buyers
When sourcing equipment from a professional manufacturer like Welk, international procurement teams should confirm the following data points to ensure the hardware is fit for purpose:
1. Process Connection: Does the flange standard (ANSI, DIN, JIS) match the existing tank nozzles?
2. Output Protocol: Is the system 4-20mA HART, Modbus RTU, or Profibus? Most industrial automation setups require HART for remote configuration.
3. Hazardous Area Ratings: Does the installation site require ATEX, IECEx, or SIL2 certification?
4. Material Traceability: For chemical or food-grade applications, ensure the wetted parts are 316L stainless steel or higher-grade alloys.
Troubleshooting Common Installation Issues
| Problem | Likely Cause | Solution |
| :— | :— | :— |
| Signal lost when tank is full | Antenna is inside the nozzle or in the dead zone. | Use a nozzle extension or a longer antenna version. |
| Unstable readings during filling | Radar is aimed at the filling stream. | Relocate the sensor away from the inlet. |
| Constant high level reading | Reflection from an internal ladder or agitator. | Perform False Echo Suppression or tilt the sensor. |
| Loss of signal on low dielectric liquid | Signal is passing through the liquid to the tank bottom. | Use a Guided Wave Radar or a larger horn antenna. |
Frequently Asked Questions (FAQ)
Q: Can a radar level transmitter measure through a plastic tank lid?
A: Yes, if the lid is made of a non-conductive material like polyethylene or polypropylene and is not too thick, radar can measure through it without a nozzle. This is common in chemical storage IBCs.
Q: How does foam affect the installation of radar level transmitter?
A: It depends on the foam density. Dry, light foam may be transparent to radar, while thick, wet foam can absorb or reflect the signal. In heavy foam cases, a lower frequency (6GHz) or a Guided Wave Radar is usually required.
Q: What is the "Dead Zone" or "Blocking Distance"?
A: This is the area directly beneath the antenna where the sensor cannot accurately measure. It is typically between 50 mm and 500 mm depending on the frequency and antenna design. The installation must account for this to prevent overfilling.
Q: Is calibration required during installation?
A: Most digital radar meters come pre-calibrated. However, "field mapping" is highly recommended. This involves configuring the empty and full tank heights and performing a scan to map out internal obstructions.
Conclusion
The successful installation of radar level transmitter systems is a blend of understanding microwave physics and practical mechanical engineering. By selecting the appropriate frequency, respecting the signal beam angle, and avoiding common placement errors like tank centering or inlet proximity, operators can ensure years of maintenance-free service. For complex applications involving high temperatures or low-dielectric fluids, consulting with a specialized manufacturer like Welk ensures that the instrumentation is tailored to the specific rigors of the industrial environment.
