In industrial bulk solids management, maintaining accurate inventory levels is critical for operational efficiency, safety, and supply chain reliability. Bin radar technology has emerged as the gold standard for non-contact level measurement in silos, hoppers, and large storage bins. Unlike traditional mechanical systems or ultrasonic sensors, bin radar utilizes high-frequency electromagnetic waves to penetrate dust and ignore atmospheric variations, providing precise data even in the most challenging environments.
For engineers and plant managers seeking to optimize their process automation, understanding the nuances of radar technology is the first step toward selecting the right instrumentation. For a detailed look at specific hardware options, you may visit the Main Page of our product catalog.
Understanding the Principles of Bin Radar Technology

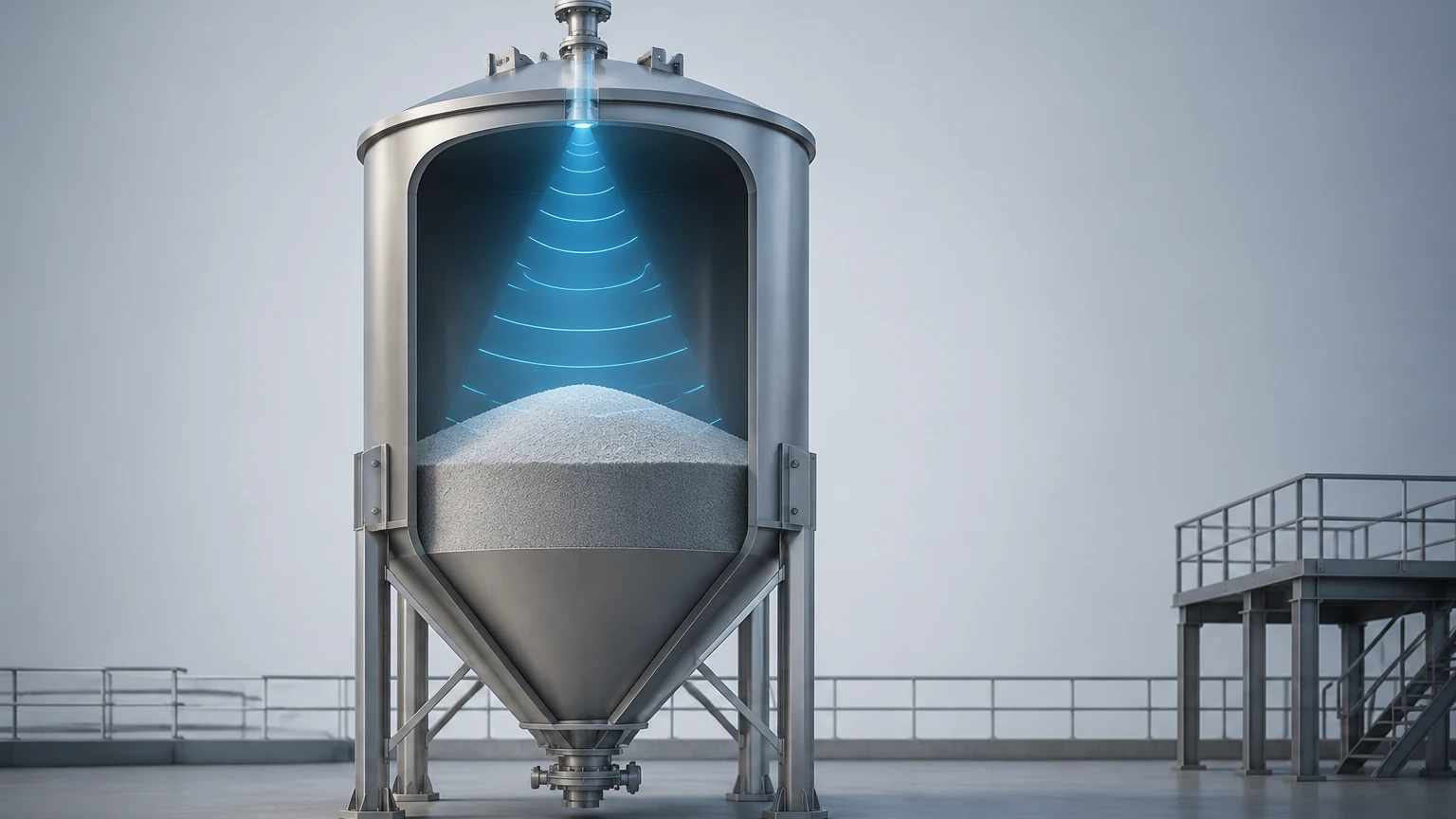

Bin radar operates on the principle of "Time of Flight" (ToF). The instrument, typically mounted at the top of a bin, emits a high-frequency electromagnetic signal toward the material surface. This signal travels at the speed of light, reflects off the surface of the bulk solid, and returns to the sensor’s antenna. The device then calculates the distance based on the time elapsed between emission and reception.
FMCW vs. Pulse Radar
Modern bin radar systems primarily utilize two types of signal processing: Frequency Modulated Continuous Wave (FMCW) and Pulse Radar.
1. FMCW Radar: This technology emits a continuous signal with a constantly changing frequency. The difference between the frequency of the emitted signal and the reflected signal is proportional to the distance. FMCW is highly preferred for solids because it offers a higher signal-to-noise ratio, allowing the sensor to distinguish the material surface from heavy dust or internal bin obstructions.
2. Pulse Radar: This method sends out short bursts of energy and measures the time interval until the echo returns. While simpler and often lower in power consumption, pulse radar can sometimes struggle with the low-reflectivity surfaces common in many bulk powders.
Because bulk solids often have uneven surfaces (cones and craters) and low dielectric constants, the sophisticated signal processing found in FMCW radar is generally the recommended choice for industrial bins.
Frequency Selection: 26GHz vs. 80GHz for Solids
The frequency of the radar signal significantly impacts its performance in a bin environment. In recent years, the industry has shifted toward higher frequencies to improve accuracy and ease of installation.
26GHz Radar
Low-to-medium frequency radar (around 26GHz) has been a workhorse in the industry for decades. Its longer wavelength allows it to penetrate extremely thick dust and steam more effectively than higher frequencies. However, it requires a larger antenna to achieve a narrow beam angle. If the beam is too wide, it may hit the walls of the bin or internal structures like ladders and braces, creating "false echoes."
80GHz Radar
80GHz technology represents the current state-of-the-art for bin radar. Because of the higher frequency, the beam angle is much narrower (often as small as 3 degrees). This narrow beam allows the radar to be installed in small nozzles or close to bin walls without interference. Furthermore, 80GHz signals reflect more effectively off the sloped and irregular surfaces of solids, providing a more reliable level reading during filling and emptying cycles.
Key Evaluation Criteria for Bin Radar Selection
When specifying a bin radar for a project, several technical factors must be confirmed to ensure the instrument performs as expected.
Dielectric Constant (εr)
The dielectric constant of the material is the most critical factor in radar measurement. It determines how much of the radar signal is reflected back to the sensor. Materials with high dielectric constants (like metallic ores or moist coal) are easy to measure. Materials with low dielectric constants (like plastic pellets, dry lime, or wood chips) reflect very little energy, requiring a radar with high sensitivity and advanced signal processing.
Angle of Repose
Unlike liquids, which maintain a flat surface, bulk solids form a cone when filled and a crater when discharged. This "angle of repose" can deflect radar signals away from the antenna. High-frequency radar with a narrow beam is better equipped to capture reflections from these angled surfaces.
Dust and Condensation
Heavy dust is common in bins containing flour, cement, or fly ash. While radar penetrates dust easily, the accumulation of dust or moisture on the antenna itself can attenuate the signal. Selecting a radar with a flush-mounted PTFE lens or an integrated air-purge connection is essential for high-maintenance environments.
Comparison with Alternative Level Measurement Technologies
To understand why bin radar is often the preferred choice, it is helpful to compare it against other common technologies used in bulk solids.
| Feature | Bin Radar (80GHz) | Ultrasonic Sensor | Yo-Yo (Electromechanical) |
| :— | :— | :— | :— |
| Measurement Range | Up to 120m | Up to 30m | Up to 50m |
| Accuracy | ±1mm to ±5mm | ±10mm to ±50mm | High (Mechanical) |
| Dust Sensitivity | Low (Excellent) | High (Poor) | Low |
| Maintenance | Minimal (No moving parts) | Low | High (Moving parts) |
| Obstruction Risk | Low (Narrow beam) | High (Wide beam) | High (Cable breakage) |
| Pressure/Temp | High tolerance | Low tolerance | Moderate |
While ultrasonic sensors are cost-effective, they rely on sound waves that are easily absorbed by dust and affected by air temperature changes. Yo-Yo sensors are reliable but require frequent maintenance due to the mechanical nature of the weighted cable. Bin radar provides a maintenance-free, high-accuracy alternative that functions regardless of the internal atmosphere.
Installation Best Practices and Considerations
Proper installation is the difference between a successful commissioning and a failed project. Engineers should adhere to the following guidelines when installing a bin radar:
1. Mounting Position: The sensor should ideally be located at 1/2 to 2/3 of the bin radius. Mounting it too close to the wall can result in interference, while mounting it directly over the fill stream will cause the sensor to measure the falling material rather than the stored level.
2. Nozzle Height: The antenna should extend slightly beyond the mounting nozzle to prevent the nozzle edge from creating a large parasitic reflection. If using a long nozzle, an 80GHz radar is preferred due to its narrow beam.
3. Beam Path Clearance: Ensure the radar beam path is clear of internal obstructions such as cross-braces, ladders, or limit switches. Even if the radar has "false echo suppression" software, it is always better to have a clear line of sight.
4. Aiming Flanges: For bins with significant angles of repose, using an adjustable aiming flange allows the technician to tilt the radar toward the center of the material cone, maximizing the reflected signal strength.
Common Risks and Limitations in Bulk Solid Applications
Despite its versatility, bin radar is not a "one-size-fits-all" solution. There are specific scenarios where additional care must be taken:
* Extremely Low Dielectric Materials: For materials with a dielectric constant below 1.5 (such as some plastic powders), the signal may pass straight through the material and reflect off the bottom of the bin. In these cases, guided wave radar (GWR) or high-sensitivity FMCW units are required.
* Internal Structures: In small, cluttered bins, even a narrow radar beam may hit obstructions. If the obstruction is larger than the material surface reflection, the radar may lock onto the wrong target.
* Acoustic Noise vs. Electronic Noise: While radar is immune to the acoustic noise of pneumatic filling, it can be sensitive to heavy electromagnetic interference (EMI) if not properly shielded and grounded.
Frequently Asked Questions (FAQ)
Q: Can bin radar measure through plastic or fiberglass bin lids?
A: Yes. Because radar waves are electromagnetic, they can pass through non-conductive materials like plastic, wood, or fiberglass. This allows for "non-invasive" measurement where the sensor is mounted outside the bin, looking through a window or the roof.
Q: Does dust affect the accuracy of the radar?
A: Generally, no. Radar waves have a much longer wavelength than dust particles, allowing them to pass through without significant attenuation. However, if dust cakes onto the antenna lens, it may weaken the signal. This is usually managed with a self-cleaning lens design or an air purge.
Q: How do I handle a bin with a very steep cone at the bottom?
A: For bins that empty completely, the radar may struggle to get a reflection off a steep metal cone at the bottom because the signal bounces away at an angle. Advanced radar units include "Empty Tank Mapping" to ignore the bottom of the bin and report 0% level correctly.
Q: Is 80GHz always better than 26GHz?
A: In 90% of bulk solids applications, 80GHz is superior due to its narrow beam and better reflection. However, 26GHz may still be used in applications with extremely thick foam (in hybrid liquid/solid tanks) or where very long nozzles are already in place and cannot be modified.
Conclusion
Bin radar technology has revolutionized how industries monitor bulk solids. By providing a non-contact, high-accuracy solution that ignores dust and atmospheric changes, it allows for tighter inventory control and safer operations. When selecting a system, engineers must prioritize the dielectric properties of the material and the physical geometry of the bin.
For professional assistance in selecting the correct frequency and antenna type for your specific industrial application, or to review technical specifications for our full range of level measurement instruments, please refer to the Main Page of our engineering resource center. Proper sensor selection today ensures a reliable, maintenance-free measurement for years to come.
